汶川<i>M</i><sub>S</sub>8.0地震前后龙门山及其 邻区构造应力场时空分布特征

虎雄林; 王强; 解朝娣

doi:10.11939/jass.2015.05.004

汶川M_S8.0地震前后龙门山及其邻区构造应力场时空分布特征

1.
中国昆明 650224 云南省地震局
2.
中国昆明 650091 云南大学地球物理系

基金项目:

国家自然科学基金 41004021

国家自然科学基金 41090292

国家自然科学基金 41104036

详细信息

通讯作者:
虎雄林, e-mail: 86084639@qq.com

中图分类号: P315.72⁺7
计量
- 文章访问数: 512
- HTML全文浏览量: 241
- PDF下载量: 25
出版历程
- 收稿日期: 2015-01-16
- 修回日期: 2015-05-26
- 发布日期: 2015-08-31

Spatio-temporal distribution of tectonic stress field in Longmenshan and its adjacent regions before and after Wenchuan M_S8.0 earthquake

1.
Earthquake Administration of Yunnan Province， Kunming 650224， China
2.
Department of Geophysics， Yunnan University， Kunming 650091， China

摘要

摘要: 基于2000年7月—2009年6 月龙门山及其邻区的震源机制解资料，采用Gephart & Forsyth方法，反演得到了汶川地震前后该地区构造应力主方向的空间分布. 结果显示：沿鲜水河断裂带及其北部地区，构造应力场变化显著，区域构造应力的最大主应力方位由NNW变为NW，断层错动类型由正断型兼走滑型变为走滑型；沿龙门山断裂带的构造应力最大主应力方向仍然为近EW和NE向，但其EW向范围在向NE方向扩张，其南部汶川地震震中附近异常带范围在收缩. 另一方面，对上述时间段龙门山及其邻区不同时段构造应力场的反演结果表明，其构造应力场的特征参数(包括R值、应力洛德参数μ′以及3个主应力的方位角和仰角等)均从第13时窗开始出现显著变化，这表明第13时窗(2006年12月—2007年1月)是一个构造应力显著变化的特征窗口. 在该时窗内，地震能量积累达到一个临界状态，是汶川M_S8.0地震发生的时间节点.
- 汶川地震 /
- 龙门山 /
- 构造应力场
Abstract: Based on the focal mechanism solutions for Longmenshan and its adjacent regions from July 2000 to June 2009, the spatial distribution of the main direction of tectonic stress fields are retrieved in the regions before and after the Wenchuan M_S8.0 earthquake by using the Gephart & Forsyth method. The results show that the tectonic stress fields change significantly along Xianshuihe fault zone and the region to the north, and that the maximum principal stress direction of the regional tectonic stress shifts from NNW to NW, while the faulting changes from combined normal fault and strike-slip to strike-slip only. Significant changes can also be observed in the tectonic stress field along the Longmenshan fault zone. Although the maximum principal stress direction still approximates to the east-west and north-east, its scope is expanding towards the east-north, and the abnormal belt near the epicenter of Wenchuan earthquake shrinks. On the other hand, the retrieval results of the tectonic stress fields in Longmenshan and its adjacent regions during different periods from July 2000 to June 2009 show that the characteristic parameters of tectonic stress fields, including the R value, Lode parameter μ′, azimuths and elevation angles of three principal stresses, begin to change significantly since the thirteenth window, suggesting that the thirteenth window (December 2006 to January 2007) is a characteristic window with significant changes in the tectonic stress. In the thirteenth window, the seismic energy is accumulated to a critical state, signaling the time node for the occurrence of Wenchuan M_S8.0 earthquake.
- Wenchuan earthquake /
- Longmenshan /
- tectonic stress field

HTML全文

图 1 基于震源机制解资料获取的2000年7月-2009年6月龙门山及其邻区地震震中分布图

Figure 1. Distribution of epicenters obtained based on source mechanism solution data in Longmenshan and its adjacent regions from July 2000 to June 2009

下载: 全尺寸图片幻灯片

图 2 断层和主应力方向的两套笛卡尔坐标系投影图

x₁-x₂-x₃为断层坐标系,x′₁-x′₂-x′₃为主应力坐标系;cos^-1β_{31是两套坐标系转换的方向余弦}

Figure 2. Two sets of Descartes coordinates projection chart for fault and principal stress directions

x₁-x₂-x₃ is fault coordinate system,x′₁-x′₂-x′₃ is principal stress coordinate system,cos^-1β₃₁ is the direction cosine of the two systems

下载: 全尺寸图片幻灯片

图 3 汶川M_S8.0地震前龙门山及其邻区构造应力σ₁主方向(a)及其方差(b)分布

Figure 3. Distribution of the principal direction of tectonic stress (a) and variance (b) in Longmenshan and its adjacent regions before Wenchuan M_S8.0 earthquake

下载: 全尺寸图片幻灯片

图 4 汶川M_S8.0地震后龙门山及其邻区构造应力σ₁主方向(a)及其方差(b)分布

Figure 4. Distribution of the principal direction of tectonic stress (a) and variance (b) in Longmenshan and its adjacent regions after the Wenchuan M_S8.0 earthquake

下载: 全尺寸图片幻灯片

图 5 龙门山及其邻区不同时窗的构造应力场综合解(a)2001-06-2002-06;(b)2001-12-2002-12

Figure 5. Comprehensive solutions of tectonic stress field in Longmenshan and its adjacent regions in the periods from June 2001 to June 2002(a) and from December 2001 to December 2002

下载: 全尺寸图片幻灯片

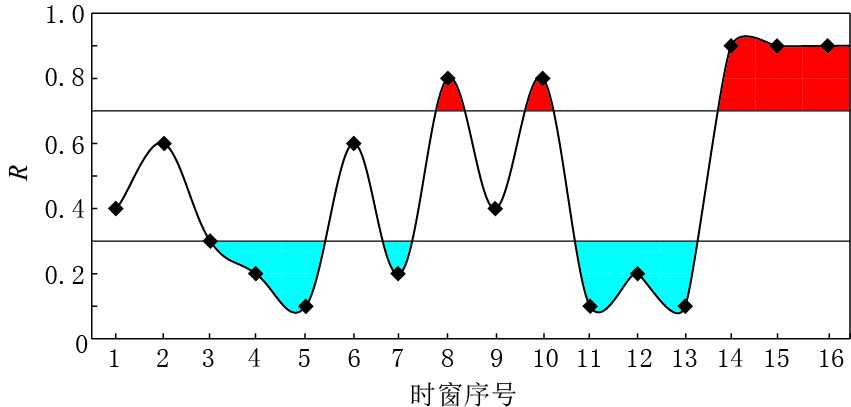

图 6 R值随时间窗的变化趋势

Figure 6. Variation of R value with time window

下载: 全尺寸图片幻灯片

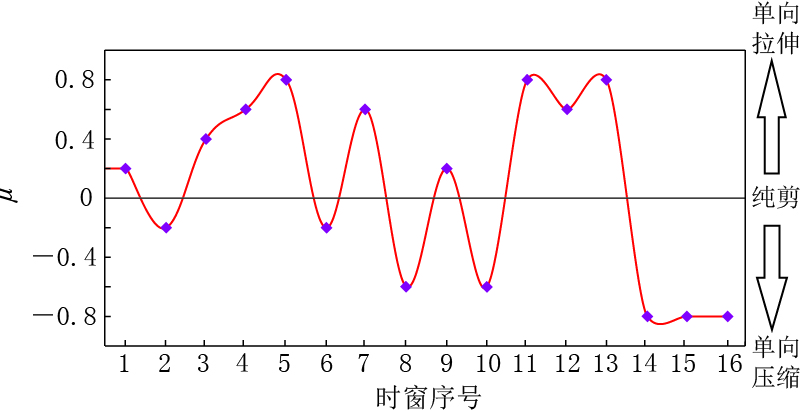

图 7 洛德应力参数μ随时窗变化趋势

Figure 7. Variation of Lode stress parameter μ with time window

下载: 全尺寸图片幻灯片

图 8 主应力方位角(a)和仰角(b)随时窗的变化趋势

Figure 8. Variation of azimuth (a) and elevation (b) of three principle stresses with time window

下载: 全尺寸图片幻灯片

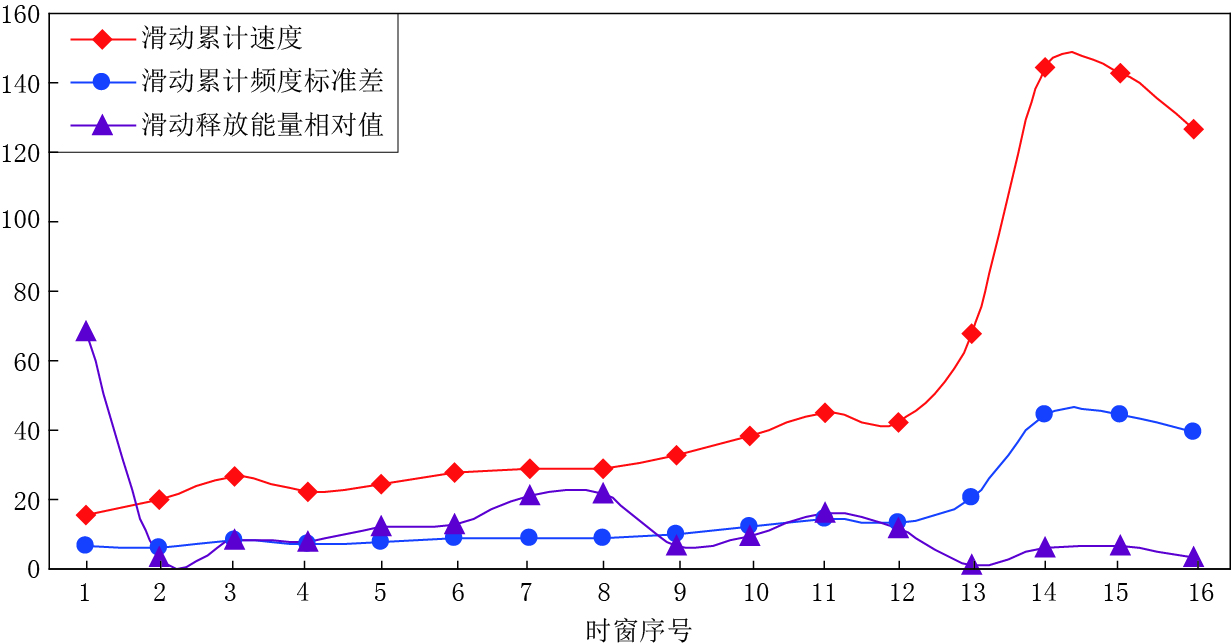

图 9 地震滑动累计速度、滑动累计频度标准差及滑动释放能量相对值随时窗的变化趋势
