Tectonic stress field analysis on the source region of the 2015 MW8.3 Chile earthquake
-
摘要: 自GCMT目录收集2015年9月16日智利MW8.3地震震中周围深度在70 km以上的震源机制解, 应用MSATSI软件反演了该地震震中周围的应力场.反演结果显示, 主压应力轴方向的整体一致性较好, 张轴的非均匀性明显, 即大致以31.5°S为界, 南部处于EW向和NS向的双轴压缩状态, 以WE向挤压为主, 兼有NS向挤压, 拉张轴近乎垂直；北部压轴方位仍为近EW向, 但张轴方位旋转至近NS向.Abstract: Based on the focal mechanism solutions above depth of 70 km around the MW8.3 Chile earthquake on 16 September 2015 collected from GCMT, this paper carries out the inversion for stress field of the source region by using MSATSI software. The inversion results show that the directions of all compressive stress axes are consistent to each other, but extensional stress axes exhibit strong inhomogeneity. Taking the 31.5°S as boundary, the south part is under approximately biaxial compression with major compression in E-W direction and minor compression in N-S direction, but extensional in U-D direction. Whereas in north part, the compressive axis is still in E-W direction, but the extensional stress axis gradually rotates to N-S direction.
-
-
![]()

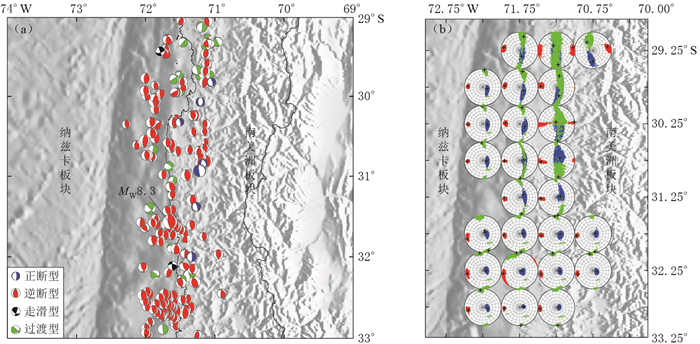

图 1 本文所用震源机制解的分布(a)与反演所得到的应力场方向(b)
震源机制解和反演的应力轴方向均采用下半球等面积投影表示.黑色十字表示σ1, σ2, σ3的的最优应力轴方向, 其周围的红点、绿点和蓝点给出了95%置信度下对应轴的置信范围
Figure 1. Distribution of the focal mechanism solutions (a) and the stress field orientation inverted in this study (b)
The focal mechanism data and stress direction are presented by lower-hemisphere equal-area projection. The black crosses show the optimal stress directions of σ1, σ2, σ3, and the red, green and blue points around them show the confidence range of the corresponding stress axes with confidence level of 95%
![]()

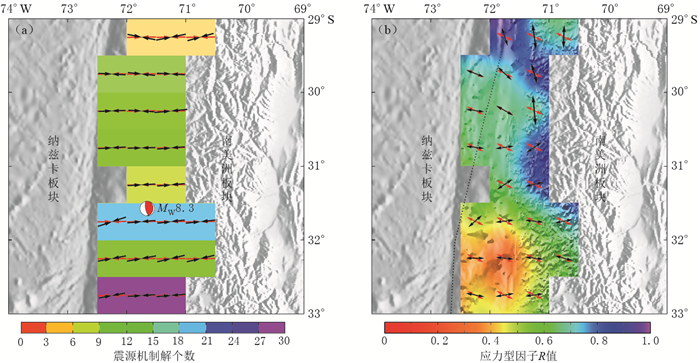

图 2 主压应力σ1轴方位(a)以及主张应力σ3轴方位和应力形因子R值(b)分布图
黑色箭头表示划分网格反演结果, 红色箭头表示平均应力场结果；虚线表示板块边界
Figure 2. The distribution of the azimuth of σ1(a) and σ3 axes and the R value (b)
The black arrows represent the compressive and extensional axes of the stress field in subarea, and the red ones represent the compressive and extensional axes of the mean stress field. The dotted line presents the plate boundary
-
何建坤, 刘福田. 1998.俯冲板片形貌特征和活动大陆边缘演化体制的关系[J].地球物理学进展, 13 (2): 15-25. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWJ802.001.htm He J K, Liu F T. 1998. Relationship between the morphology of subducted slabs and the tectonic evolution in the active continental margins[J]. Progress in Geophysics, 13 (2): 15-25 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWJ802.001.htm
黄骥超, 万永革, 盛书中, 李祥. 2016.汤加-克马德克俯冲带现今非均匀应力场特征及其动力学意义[J].地球物理学报, 59 (2): 578-592. doi: 10.6038/cjg20160216. Huang J C, Wan Y G, Sheng S Z, Li X. 2016. Heterogeneity of present-day stress field in Tonga-Kermadec subduction zone and its geodynamic significance[J]. Chinese Journal of Geophysics, 59 (2): 578-592 (in Chinese). doi: 10.6038/cjg20160216
黄骥超, 万永革. 2015.利用小震与强震震源机制解反演首都圈现今构造应力场[J].地震, 35 (1): 17-27. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN201501003.htm Huang J C, Wan Y G. 2015. Present tectonic stress field in the capital region of China determined from small and strong earthquake focal mechanisms[J]. Earthquake, 35 (1): 17-27 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN201501003.htm
金双根, 朱文耀. 2002.南美板块的运动和活动形变[J].武汉大学学报:信息科学版, 27 (4): 358-362. http://www.cnki.com.cn/Article/CJFDTOTAL-WHCH200204005.htm Jin S G, Zhu W Y. 2002. Motion and active deformation of South America Plate[J]. Geomatics and Information Science of Wuhan University, 27 (4): 358-362 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-WHCH200204005.htm
金双根. 2003. GPS监测全球板块构造运动的研究[D].上海:中国科学院研究生院上海天文台: 87-92. http://cdmd.cnki.com.cn/Article/CDMD-80022-2002114309.htm Jin S G. 2003. Global Plate Tectonic Motion From GPS Measurements [D]. Shanghai: Shanghai Observatory, Chinese Academy of Sciences: 87-92 (in Chinese). http://cdmd.cnki.com.cn/Article/CDMD-80022-2002114309.htm
李智. 2003.利用空间对地观测技术研究全球构造特征[D].北京:中国地震局地质研究所: 76-100. http://cdmd.cnki.com.cn/Article/CDMD-85402-2004096206.htm Li Z. 2003. Global Tectonics Characteristics Inferred From Space Geodesy [D]. Beijing: Institute of Geology, China Earthquake Administration: 76-100 (in Chinese). http://cdmd.cnki.com.cn/Article/CDMD-85402-2004096206.htm
吕政, 邵喜彬. 2004.全球俯冲带形态特征研究[J].东北地震研究, 20 (3): 17-25. http://www.cnki.com.cn/Article/CJFDTOTAL-DDYJ200403003.htm Lü Z, Shao X B. 2004. Research on the diving plate shape characteristic of global diving belt[J]. Seismological Research of Northeast China, 20 (3): 17-25 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DDYJ200403003.htm
马宗晋, 高祥林, 任金卫. 1992.现今全球构造特征及其动力学解释[J].第四纪研究, 12 (4): 293-305. http://www.cnki.com.cn/Article/CJFDTOTAL-DSJJ199204001.htm Ma Z J, Gao X L, Ren J W. 1992. The features of contemporary global tectonics and its dynamic explanation[J]. Quaternary Sciences, 12 (4): 293-305 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DSJJ199204001.htm
马宗晋, 宋晓东, 杜品仁, 傅容珊, 孙付平, 汪洋. 2002.地球南北半球的非对称性[J].地球物理学报, 45 (1): 26-33. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200201003.htm Ma Z J, Song X D, Du P R, Fu R S, Sun F P, Wang Y. 2002. Asymmetry between the southern and northern hemispheres of the earth[J]. Chinese Journal of Geophysics, 45 (1): 26-33 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200201003.htm
马宗晋, 张进, 任金卫, 李智. 2006.全球GPS矢量场的分区描述及规律性分析[J].地质学报, 80 (8): 1089-1100. http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200608000.htm Ma Z J, Zhang J, Ren J W, Li Z. 2006. Sub-regional descriptions of global GPS vector field and its geodynamic significance[J]. Acta Geologica Sinica, 80 (8): 1089-1100 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZXE200608000.htm
万永革. 2015.联合采用定性和定量断层资料的应力张量反演方法及在乌鲁木齐地区的应用[J].地球物理学报, 58 (9): 3144-3156. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201509011.htm Wan Y G. 2015. A grid search method for determination of tectonic stress tensor using qualitative and quantitative data of active faults and its application to the Urumqi area [J]. Chinese Journal of Geophysics, 58 (9): 3144-3156 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201509011.htm
万永革, 盛书中, 许雅儒, 吴逸民. 2011.不同应力状态和摩擦系数对综合P波辐射花样影响的模拟研究[J].地球物理学报, 54 (4): 994-1001. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201104016.htm Wan Y G, Sheng S Z, Xu Y R, Wu Y M. 2011. Effect of stress ratio and friction coefficient on composite P wave radiation patterns[J]. Chinese Journal of Geophysics, 54 (4): 994-1001 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201104016.htm
张勇, 许力生, 陈运泰. 2015. 2015年9月17日智利中部沿岸近海MS8.2地震[EB/OL]. [2015-09-18]. http://www.cea-igp.ac.cn/tpxw/272851.shtml. Zhang Y, Xu L S, Chen Y T. 2015. Off coast MS8.2 earthquake in central Chile on Sep.19, 2015 [EB/OL]. [2015-09-18]. http://www.cea-igp.ac.cn/tpxw/272851.shtml (in Chinese).
Araujo M, Suárez G. 1994. Geometry and state of stress of the subducted Nazca Plate beneath central Chile and Argen-tina: Evidence from teleseismic data[J]. Geophys J Int, 116 (2): 283-303. doi: 10.1111/gji.1994.116.issue-2
Cahill T, Isacks B L. 1992. Seismicity and shape of the subducted Nazca Plate[J]. J Geophys Res, 97 (B12): 17503-17529. doi: 10.1029/92JB00493
Chen P F, Bina C R, Okal E A. 2004. A global survey of stress orientations in subducting slabs as revealed by intermediate-depth earthquakes[J]. Geophys J Int, 159 (2): 721-733. doi: 10.1111/gji.2004.159.issue-2
DeMets C, Gordon R G, Argus D F, Stein S. 1994. Effect of recent revisions to the geomagnetic reversal time scale on estimates of current plate motions[J]. Geophys Res Lett, 21 (20): 2191-2194. doi: 10.1029/94GL02118
Engdahl E R, van der Hilst R D, Berrocal J. 1995. Imaging of subducted lithosphere beneath South America[J]. Geophys Res Lett, 22 (16): 2317-2320. doi: 10.1029/95GL02013
GCMT. 2015. Global CMT web page[EB/OL]. [2015-09-20]. http://www.globalcmt.org/CMTsearch.html.
Gephart J W, Forsyth D W. 1984. An improved method for determining the regional stress tensor using earthquake focal mechanism data: Application to the San Fernando earthquake sequence[J]. J Geophys Res, 89 (B11): 9305-9320. doi: 10.1029/JB089iB11p09305
Guiraud M, Laborde O, Philip H. 1989. Characterization of various types of deformation and their corresponding deviatoric stress tensors using microfault analysis[J]. Tectonophysics, 170 (3/4): 289-316. http://cn.bing.com/academic/profile?id=2005820906&encoded=0&v=paper_preview&mkt=zh-cn
Hardebeck J L, Hauksson E. 1999. Role of fluids in faulting inferred from stress field signatures [J]. Science, 285 (5425): 236-239. doi: 10.1126/science.285.5425.236
Hardebeck J L, Michael A J. 2004. Stress orientations at intermediate angles to the San Andreas fault, California[J]. J Geophys Res, 109 : B11303. doi: 10.1029/2004JB003239.
Hardebeck J L, Micheal A J. 2006. Damped regional-scale stress inversions: Methodology and examples for southern California and the Coalinga aftershock sequence[J]. J Geophys Res, 111 : B11310. doi: 10.1029/2005JB004144.
Hayes G. 2015. Preliminary finite fault results for the Sep 16, 2015 MW8. 3 46 km W of Illapel, Chile earthquake (Version 1)[EB/OL]. [2015-09-20]. http://earthquake.usgs.gov/earthquakes/eventpage/us20003k7a#scientific_finitefault.
Martínez-Garzón P, Kwiatek G, Ickrath M, Bohnhoff M. 2014. MSATSI: A MATLAB package for stress inversion combining solid classic methodology, a new simplified user-handling, and a visualization tool[J]. Seis Res Lett, 85 (4): 896-904. doi: 10.1785/0220130189
Michael A J. 1987. Use of focal mechanisms to determine stress: A control study[J]. J Geophys Res, 92 (B1): 357-368. doi: 10.1029/JB092iB01p00357
Norabuena E O, Snoke J A, James D E. 1994. Structure of the subducting Nazca Plate beneath Peru[J]. J Geophys Res, 99 (B5): 9215-9226. doi: 10.1029/94JB00126
Pilger R H. 1984. Cenozoic plate kinematics, subduction and magmatism: South American Andes [J]. J Geol Soc, 141 (5): 793-802. doi: 10.1144/gsjgs.141.5.0793
Townend J, Zoback M D. 2001. Implications of earthquake focal mechanisms for the frictional strength of the San Andreas fault system[J]. Geological Society of London Special Publications, 186 (1): 13-21. doi: 10.1144/GSL.SP.2001.186.01.02
USGS. 2015. M8. 3: 48 km W of Illapel, Chile[EB/OL]. [2015-09-23]. http://earthquake.usgs.gov/earthquakes/eventpage/us20003k7a#executive.
Wan Y G, Sheng S Z, Huang J C, Li X, Chen X. 2016. The grid search algorithm of tectonic stress tensor based on focal mechanism data and its application in the boundary zone of China, Vietnam and Laos[J]. J Earth Sci, 27 (5): 777-785. doi: 10.1007/s12583-015-0649-1.
Zoback M L. 1992. First-and second-order patterns of stress in the lithosphere: The World Stress Map Project[J]. J Geophys Res, 97 (B8): 11703-11728. doi: 10.1029/92JB00132
-
