区域台网地震矩张量快速反演系统研究

赵韬, 赵曦, 王莹, 李少睿, 惠少兴, 王杰民

赵韬, 赵曦, 王莹, 李少睿, 惠少兴, 王杰民. 2016: 区域台网地震矩张量快速反演系统研究. 地震学报, 38(6): 889-897. DOI: 10.11939/jass.2016.06.008
引用本文: 赵韬, 赵曦, 王莹, 李少睿, 惠少兴, 王杰民. 2016: 区域台网地震矩张量快速反演系统研究. 地震学报, 38(6): 889-897. DOI: 10.11939/jass.2016.06.008
Zhao Tao, Zhao Xi, Wang Ying, Li Shaorui, Hui Shaoxing, Wang Jiemin. 2016: Study on the fast seismic moment tensor inversion system using regional seismic network data. Acta Seismologica Sinica, 38(6): 889-897. DOI: 10.11939/jass.2016.06.008
Citation: Zhao Tao, Zhao Xi, Wang Ying, Li Shaorui, Hui Shaoxing, Wang Jiemin. 2016: Study on the fast seismic moment tensor inversion system using regional seismic network data. Acta Seismologica Sinica, 38(6): 889-897. DOI: 10.11939/jass.2016.06.008

区域台网地震矩张量快速反演系统研究

基金项目:

测震台网青年骨干培养专项 20160524

陕西省地震局启航与创新基金课题 201603

测震台网青年骨干培养专项(20160524)和陕西省地震局启航与创新基金课题(201603)共同资助

详细信息
    通讯作者:

    赵韬, e-mail:zhaotaowy@163.com

  • 中图分类号: P315.61

Study on the fast seismic moment tensor inversion system using regional seismic network data

  • 摘要: 基于美国内华达大学地震实验室的矩张量反演程序,采用JAVA和HTML语言,研发了一套近实时全波形矩张量快速反演系统,用于区域台网地震矩张量的快速产出.该系统由区域地震速报系统触发,能自动实现中等强度地震矩张量的快速反演,同时也包含人机交互模块,可进行人工校正,最终以网页形式对外服务.本文将系统运行以来成功反演的结果与USGS和中国地震局地球物理研究所的计算结果进行对比,验证了该系统的可靠性.
    Abstract: Seismic moment tensor is an important part of seismology study, which supplies indispensable information for earthquake research. Fast acquisition of seismic moment tensor solution could be the key of post-earthquake relief and tendency determination. Based on the moment tensor inversion package from Nevada Seismology Laboratory, using JAVA and HTML language, we developed a near real-time full waveform moment tensor inversion system, which could fast output seismic moment tensor. Triggered by the Earthquakes Instant Messenger (EQIM), the system could inverse seismic moment tensor of moderate earthquakes automatically, also could be corrected manually, and offer web services in the end. Comparison has been made between our results and published ones by USGS and Institute of Geophysics, China Earthquake Administration, verifying the reliability of this system.

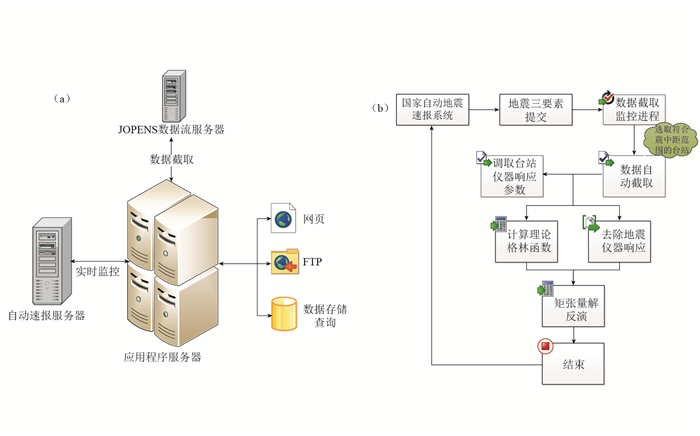

  • 图  1   自动计算系统框架(a)和自动矩张量反演流程(b)

    Figure  1.   Framework of auto computing system (a) and flowchart of auto moment tensor inversion (b)

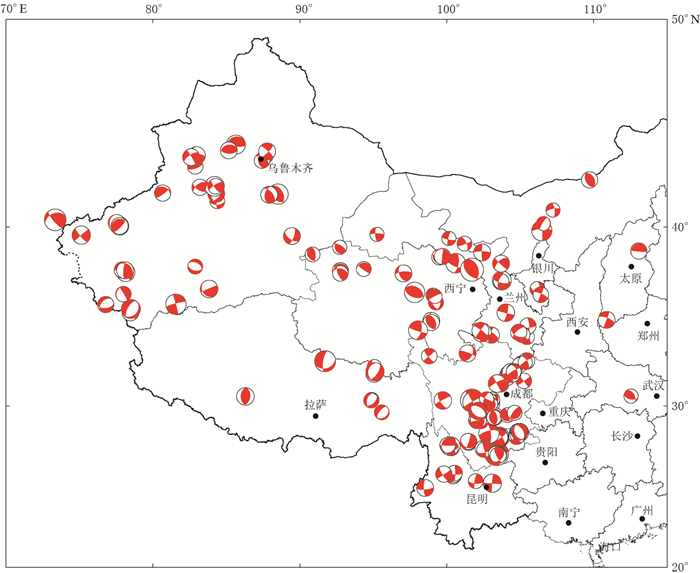

    图  2   区域台网快速矩张量反演系统获取的165次地震反演结果分布

    Figure  2.   Distribution of 165 seismic moment tensor solutions from fast inversion system using regional seismic network data

    表  1   区域台网地震矩张量自动反演系统MS≥5.0地震反演结果对比

    Table  1   Contrast analysis of MS≥5.0 earthquakes' inversion solutions from regional fast inversion system

    发震时刻 震中
    位置
    MW 深度
    /km
    节面Ⅰ 节面Ⅱ 资料来源*
    年-月-日 时:分 走向/° 倾角/° 滑动角/° 走向/° 倾角/° 滑动角/°
    6.0 8 165 90 17 75 73 180 本文
    2014-08-03 16:30 云南
    鲁甸
    6.1 14 160 87 5 69 85 177 USGS
    6.3 11 165 87 6 74 87 177 地球物理研究所
    2014-08-17 06:07 云南
    永善
    5.0 8 318 64 2 227 84 154 本文结果
    4.9 8 319 62 0 229 90 152 地球物理研究所
    2014-10-01 09:23 四川
    越西
    5.0 8 352 74 20 256 70 163 本文结果
    5.0 10 350 79 21 256 69 168 地球物理研究所
    5.0 16 299 40 97 110 50 84 本文
    2014-10-02 23:56 青海
    乌兰
    5.1 12 299 60 105 90 34 66 USGS
    5.1 17 287 47 80 121 44 101 地球物理研究所
    5.8 8 234 80 -176 143 86 -10 本文
    2014-11-22 16:55 四川
    康定
    5.9 14 231 78 -170 139 80 -12 USGS
    6.1 12 233 90 180 143 90 0 地球物理研究所
    2014-11-25 23:19 四川
    康定
    5.3 12 151 88 -7 241 83 -178 本文
    5.6 12 152 82 -3 242 87 -172 USGS
    2015-01-14 13:21 四川
    乐山
    4.6 10 292 14 68 135 77 95 本文
    4.6 12 151 47 80 345 44 101 地球物理研究所
    2015-02-22 14:43 新疆
    沙湾
    4.8 8 242 18 58 95 74 100 本文
    4.7 17 57 45 65 270 50 113 地球物理研究所
    2015-04-15 15:39 内蒙古
    阿拉善
    左旗
    5.1 4 358 84 -164 267 74 -6 本文
    5.4 22 174 85 -169 83 79 -5 USGS
    5.0 20 140 43 83 330 48 97 本文
    2015-06-25 03:12 新疆
    托克逊
    5.0 33 133 46 98 302 45 82 USGS
    5.0 31 154 58 88 338 32 93 地球物理研究所
    4.8 12 108 83 28 14 62 172 本文
    2015-10-12 18:04 青海
    玛多
    5.2 20 288 81 5 197 85 171 USGS
    5.1 20 112 81 6 21 84 171 地球物理研究所
    2015-11-23 05:02 青海
    祁连
    5.0 20 10 64 151 114 64 30 本文
    5.0 9 11 78 143 110 54 15 地球物理研究所
    4.9 20 242 39 27 131 74 125 本文
    2016-01-14 05:18 新疆
    轮台
    5.1 24 273 28 85 99 62 93 USGS
    5.0 20 272 23 78 105 68 95 地球物理研究所
    5.7 12 342 42 109 137 51 74 本文
    2016-01-21 01:13 青海
    门源
    5.9 7 342 55 101 144 36 75 USGS
    6.0 7 335 53 98 141 38 79 地球物理研究所
    * USGS的反演结果引自http://earthquake.usgs.gov/earthquakes/search/, 中国地震局地球物理研究所的反演结果引自http://www.cea-igp.ac.cn/tpxw/index.shtml/.
    下载: 导出CSV
  • 陈继锋. 2015. 2012年5月3日甘肃金塔MS5.4地震矩张量反演[J].地震工程学报, 37 (4): 1124-1128. http://www.cnki.com.cn/Article/CJFDTotal-ZBDZ201504036.htm

    Chen J F. 2015. Moment tensor inversion of the 2012 Jinta, Gansu MS5.4 earthquake[J]. China Earthquake Engineering Journal, 37 (4): 1124-1128 (in Chinese). http://www.cnki.com.cn/Article/CJFDTotal-ZBDZ201504036.htm

    康清清, 缪发军, 刘红桂, 徐戈, 李峰. 2015.利用矩张量反演法研究江苏高邮-宝应MS4.9级地震震源机制解和震源深度[J].地球物理学报, 58 (1): 204-215. http://manu39.magtech.com.cn/Geophy/CN/abstract/abstract11171.shtml

    Kang Q Q, Miao F J, Liu H G, Xu G, Li F. 2015. Focal mechanism and focal depth of the Gaoyou-Baoying, Jiangsu, China MS4.9 earthquake on 20 July 2012 derived from moment tensor inversion[J]. Chinese Journal of Geophysics, 58 (1): 204-215 (in Chinese). http://manu39.magtech.com.cn/Geophy/CN/abstract/abstract11171.shtml

    吕坚, 郑勇, 倪四道, 高建华. 2008. 2005年11月26日九江-瑞昌MS5.7、MS4.8地震的震源机制解与发震构造研究[J].地球物理学报, 51 (1): 158-164. http://www.cnki.com.cn/Article/CJFDTotal-DQWX200801021.htm

    Lü J, Zheng Y, Ni S D, Gao J H. 2008. Focal mechanisms and seismogenic structures of the MS5.7 and MS4.8 Jiujiang-Ruichang earthquakes of Nov.26, 2005[J]. Chinese Journal of Geophysics, 51 (1): 158-164 (in Chinese). http://www.cnki.com.cn/Article/CJFDTotal-DQWX200801021.htm

    邱毅, 金星, 李军, 朱耿青, 邵平荣, 徐嘉隽. 2014.利用区域台网快速自动反演中等强度地震矩张量[J].地震, 34 (2): 65-73. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN201402007.htm

    Qiu Y, Jin X, Li J, Zhu G Q, Shao P R, Xu J J. 2014. Automated and rapid moment tensor inversion for moderate earthquakes using regional seismic network[J]. Earthquake, 34 (2): 65-73 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN201402007.htm

    吴微微, 杨建思, 苏金蓉, 杜文康, 高瑜, 郑钰, 田宝峰, 刘莎, 吴朋. 2014. 2013年吉林前郭-乾安震源区中强地震矩张量反演与区域孕震环境研究[J].地球物理学报, 57 (8): 2541-2554. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201408015.htm

    Wu W W, Yang J S, Su J R, Du W K, Gao Y, Zheng Y, Tian B F, Liu S, Wu P. 2014. Moment inversion of moderate earthquakes and seismogenic environment in Qianguo-Qian'an source region, 2013, Jilin Province[J]. Chinese Journal of Geophysics, 57 (8): 2541-2554 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX201408015.htm

    谢祖军, 郑勇, 倪四道, 熊熊, 王行舟, 张炳. 2012. 2011年1月19日安庆ML4.8地震的震源机制解和深度研究[J].地球物理学报, 55 (5): 1624-1634. http://cn.bing.com/academic/profile?id=2464562164&encoded=0&v=paper_preview&mkt=zh-cn

    Xie Z J, Zheng Y, Ni S D, Xiong X, Wang X Z, Zhang B. 2012. Focal mechanism and focal depth of the 19 January 2011 Anqing earthquake[J]. Chinese Journal of Geophysics, 55 (5): 1624-1634 (in Chinese). http://cn.bing.com/academic/profile?id=2464562164&encoded=0&v=paper_preview&mkt=zh-cn

    赵翠萍, 陈章立, 郑斯华, 张智强. 2008.伽师震源区中等强度地震矩张量反演及其应力场特征[J].地球物理学报, 51 (3): 782-792. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200803020.htm

    Zhao C P, Chen Z L, Zheng S H, Zhang Z Q. 2008. Moment inversion of moderate earthquakes and the locally perturbed stress field in the Jiashi source region[J]. Chinese Journal of Geophysics, 51 (3): 782-792 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200803020.htm

    赵旭, Zacharie D, 黄志斌, 陈宏峰, 赵博. 2014.基于W震相技术的全球强震(MW≥6.5)矩心矩张量自动反演系统评估[J].地震学报, 36 (5): 800-809. http://www.dzxb.org/Magazine/Show?id=29007

    Zhao X, Zacharie D, Huang Z B, Chen H F, Zhao B. 2014. Assessment of the automatic centroid moment tensor inversion system for global strong earthquakes (MW≥6.5) based on the W-phase method[J]. Acta Seismologica Sinica, 36 (5): 800-809 (in Chinese). http://www.dzxb.org/Magazine/Show?id=29007

    郑秀芬, 欧阳飚, 张东宁, 姚志祥, 梁建宏, 郑洁. 2009. "国家数字测震台网数据备份中心"技术系统建设及其对汶川大地震研究的数据支撑[J].地球物理学报, 52 (5): 1412-1417. http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200905032.htm

    Zheng X F, Ouyang B, Zhang D N, Yao Z X, Liang J H, Zheng J. 2009. Technical system construction of Data Backup Centre for China Seismograph Network and the data support to researches on the Wenchuan earthquake[J]. Chinese Journal of Geophysics, 52 (5): 1412-1417 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DQWX200905032.htm

    Ben-Menahem A. 1995. A concise history of mainstream seismology: Origins, legacy, and perspectives[J]. Bull Seismol Soc Am, 85 (4): 1202-1225. http://cn.bing.com/academic/profile?id=2343889148&encoded=0&v=paper_preview&mkt=zh-cn

    Bernardi F, Braunmiller J, Kradolfer U, Giardini D. 2004. Automatic regional moment tensor inversion in the European-Mediterranean region[J]. Geophys J Int, 157 (2): 703-716. doi: 10.1111/gji.2004.157.issue-2

    Daniel S, Ammon C J, Jose M. 2003. Moment tensor solutions for small and moderate earthquakes in the Ibero-Maghreb region[J]. Journal of Geophysical Research, 108 (108): 101-112. http://cn.bing.com/academic/profile?id=2039092103&encoded=0&v=paper_preview&mkt=zh-cn

    Dreger D S, Helmberger D V. 1993. Determination of source parameters at regional distances with three-component sparse network data[J]. J Geophys Res, 98 (B5): 8107-8125. doi: 10.1029/93JB00023

    Fukuyama E, Ishida M, Dreger D S, Kawai H. 1998. Automated seismic moment tensor determination by using on-line broadband seismic waveforms[J]. Zisin, 51 (1): 149-156. http://cat.inist.fr/?aModele=afficheN&cpsidt=1590165

    Fukuyama E, Dreger D S. 2000. Performance test of an automated moment tensor determination system for the future "Tokai" earthquake[J]. Earth Planets Space, 52 (6): 383-392. doi: 10.1186/BF03352250

    Herrmann R B, Wang C Y. 1985. A comparison of synthetic seismograms[J]. Bull Seismol Soc Am, 75 (1): 41-56. http://cn.bing.com/academic/profile?id=2266104895&encoded=0&v=paper_preview&mkt=zh-cn

    Hou J M, Xu Z G. 2015. Focal mechanism solution statistics of seismic tsunami sources[J]. Mar Sci Bull, 17 (1): 40-49.

    Ichinose G A, Anderson J G, Smith K D, Zeng Y H. 2003. Source parameters of eastern California and western Nevada earthquakes from regional moment tensor inversion[J]. Bull Seismol Soc Am, 93 (1): 61-84. doi: 10.1785/0120020063

    Jost M L, Herrmann R B. 1989. A student's guide to and review of moment tensors[J]. Seismol Res Lett, 60 (2): 37-57. http://cn.bing.com/academic/profile?id=2100344690&encoded=0&v=paper_preview&mkt=zh-cn

    Kawakatsu H. 1998. On the realtime monitoring of the long-period seismic wavefield[J]. Bull Earthquake Res Inst Univ Tokyo, 73 (3/4): 267-274. http://cn.bing.com/academic/profile?id=1661763827&encoded=0&v=paper_preview&mkt=zh-cn

    Kubo A, Fukuyama E, Kawai H, Nonomura K. 2002. NIED seismic moment tensor catalogue for regional earthquakes around Japan: Quality test and application[J]. Tectonophysics, 356 (1/2/3): 23-48. http://cn.bing.com/academic/profile?id=2156947561&encoded=0&v=paper_preview&mkt=zh-cn

    Nábělek J, Xia G Y. 1995. Moment-tensor analysis using regional data: Application to the 25 March, 1993, Scotts Mills, Oregon, earthquake[J]. Geophys Res Lett, 22 (1): 13-16. doi: 10.1029/94GL02760

    Pasyanos M E, Dreger D S, Romanowicz B. 1996. Toward real-time estimation of regional moment tensors[J]. Bull Seismol Soc Am, 86 (5): 1255-1269. http://cn.bing.com/academic/profile?id=2138040462&encoded=0&v=paper_preview&mkt=zh-cn

    Randall G E, Ammon C J, Owens T J. 1995. Moment tensor estimation using regional seismograms from a Tibetan Plateau portable network deployment[J]. Geophys Res Lett, 22 (13): 1665-1668. doi: 10.1029/95GL00909

    Romanowicz B, Dreger D, Pasyanos M, Uhrhammer R. 1993. Monitoring of strain release in central and northern California using broadband data[J]. Geophys Res Lett, 20 (15): 1643-1646. doi: 10.1029/93GL01540

    Rueda J, Mezcua J. 2005. Near-real-time seismic moment-tensor determination in Spain[J]. Seismol Res Lett, 76 (4): 455-465. doi: 10.1785/gssrl.76.4.455

    Saikia C K. 1994. Modified frequency-wavenumber algorithm for regional seismograms using Filon's quadrature: Modelling of Lg waves in eastern North America[J]. Geophys J Int, 118 (1): 142-158. doi: 10.1111/gji.1994.118.issue-1

    Stich D, Ammon C J, Morales J. 2003. Moment tensor solutions for small and moderate earthquakes in the Ibero-Maghreb region[J]. J Geophys Res, 108 (B3): 2148. http://cn.bing.com/academic/profile?id=2039092103&encoded=0&v=paper_preview&mkt=zh-cn

    Tajima F, Mégnin C, Dreger D S, Romanowicz B. 2002. Feasibility of real-time broadband waveform inversion for simultaneous moment tensor and centroid location determination[J]. Bull Seismol Soc Am, 92 (2): 739-750. doi: 10.1785/0120000294

    Wang C Y, Herrmann R B. 1980. A numerical study of P-, SV-, and SH-wave generation in a plane layered medium[J]. Bull Seismol Soc Am, 70 (4): 1015-1036. http://cn.bing.com/academic/profile?id=1837126878&encoded=0&v=paper_preview&mkt=zh-cn

    Zhao L S, Helmberger D V. 1994. Source estimation from broadband regional seismograms[J]. Bull Seismol Soc Am, 84 (1): 91-104. http://cn.bing.com/academic/profile?id=2158364965&encoded=0&v=paper_preview&mkt=zh-cn

    Zhu L P, Helmberger D V. 1996. Advancement in source estimation techniques using broadband regional seismograms[J]. Bull Seismol Soc Am, 86 (5): 1634-1641. http://cn.bing.com/academic/profile?id=2141133733&encoded=0&v=paper_preview&mkt=zh-cn
