Earthquake and explosion identification based on Deep Learning residual network model
-
摘要: 为加强对地震台网记录的天然地震与人工爆破事件进行准确的性质识别，本文基于深度学习技术中的残差网络模型，提出了一种新的爆破识别方法，并根据北京数字遥测地震台网及国家数字测震台网中心记录的波形数据及其发布的包含事件性质的地震报告，选取河北三河采石场的93次爆破事件和54次周边地震事件的波形功率谱，分别采用不同的训练样本比例进行了100次和1 000次独立的随机抽样子试验以及 “留一交叉验证法” 试验，对人工爆破与天然地震进行了识别研究。试验结果表明，深度学习残差网络模型在天然地震与爆破事件的性质识别中具有很高的识别率且效果稳定，具有较好的应用前景。Abstract: In order to enhance the property identification of earthquakes and explosions recorded by seismic network, this paper proposed a new technology of explosion discrimination based on the residual network model in Deep Learning technology, and utilized it to identifying explosion and surrounding earthquakes in Sanhe Quarry of Hebei Province. According to the waveform data recorded by the Beijing Digital Telemetry Seismic Network and China Center of Digital Seismic Network, and the released seismic phase reports, we analyzed the waveform power spectrum of 93 explosion events and 54 surrounding seismic events in Sanhe Quarry of Hebei Province. Moreover, 100 independent random sampling sub-tests, 1 000 independent random sampling sub-tests and leave-one-out-cross-validation test were conducted by adopting different training sample proportions, respectively. The test results show that the residual network model in Deep Learning has a high recognition rate and a stable effect in identifying the property of earthquakes and explosions, therefore it has a wonderfully potential application.
-
-
![]()

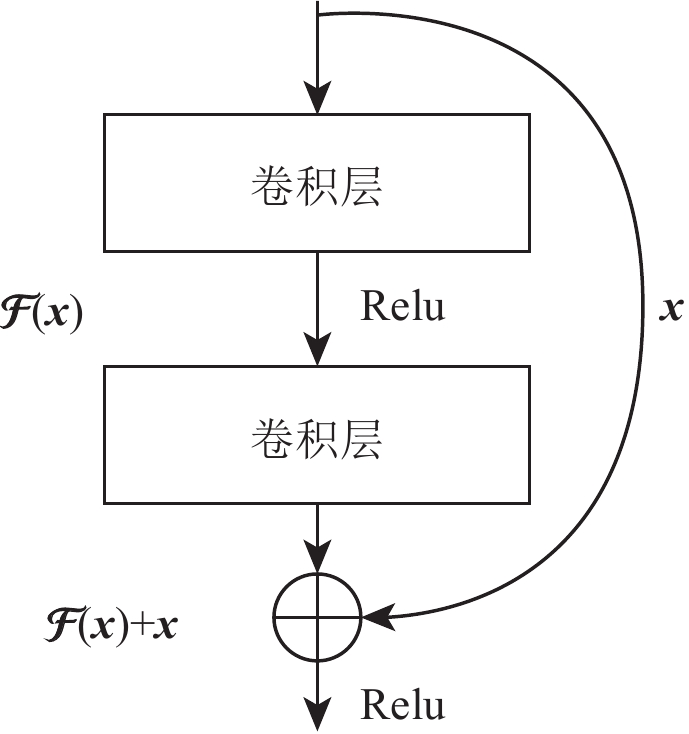

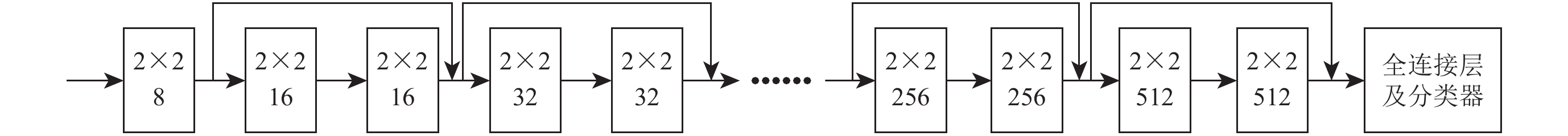

图 2 本文应用的残差网络模型
图中省略了4层卷积核为64和128的卷积层，加上全连接层及分类器层，共计14层，图中上方数字2×2为卷积核大小，下方数字为卷积核的数量
Figure 2. The residual network model applied in this paper
The four convolutional layers with 64 and 128 convolution kernels was omitted；coupled with the fully connected layer and the classifier layer，there are 14 layers in total。2×2 on the upper in the figures is the size of the convolution kernel，and on the bottom is the number of the convolution kernel
![]()

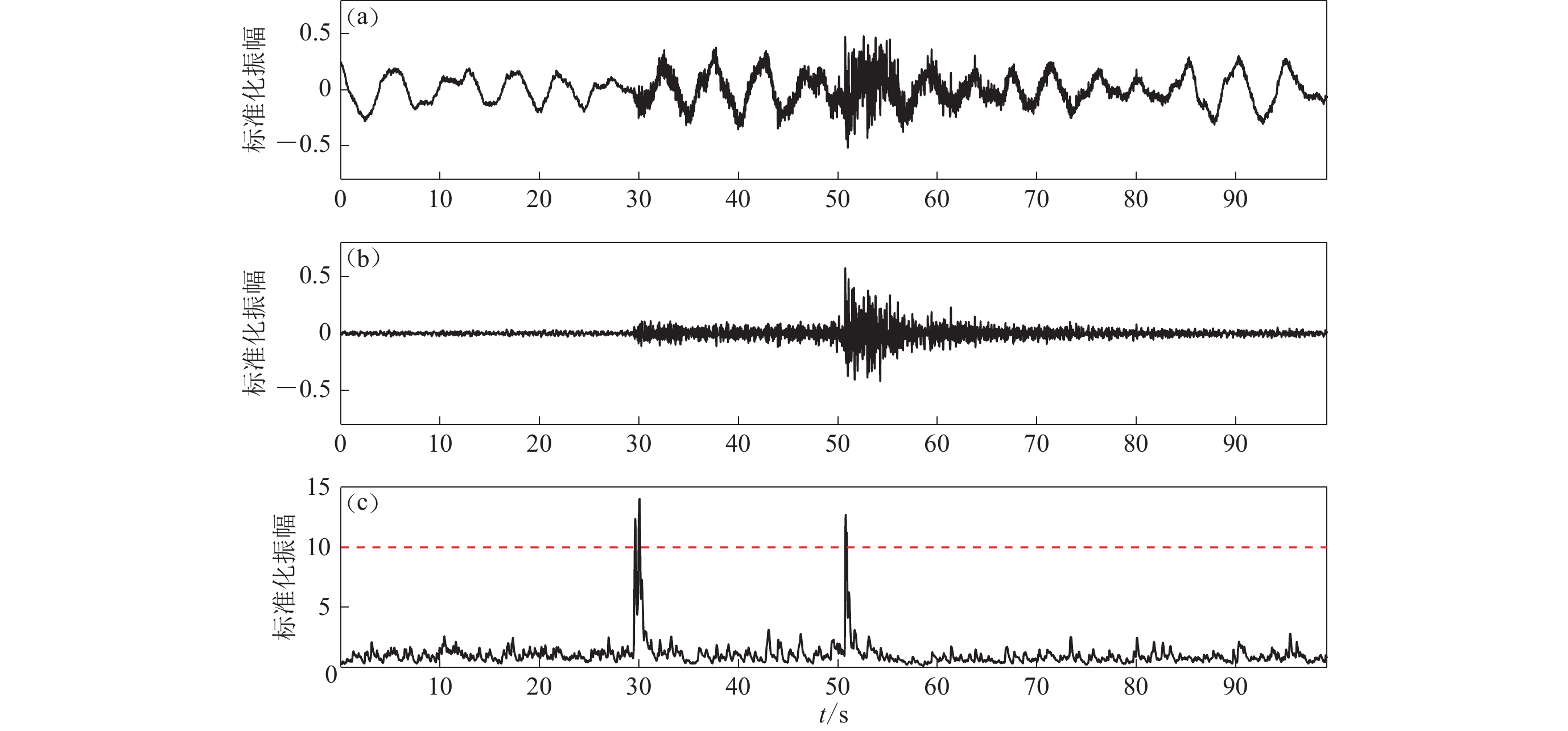

图 4 波形筛选示意图
（a） 原始波形；（b） 带通滤波去噪结果；（c） TKEO短长时窗比
Figure 4. Schematic diagram of waveform selection
（a） Original waveform；（b） De-noising result by band-pass filtering；（c） TKEO short-length time-to-window ratio
![]()

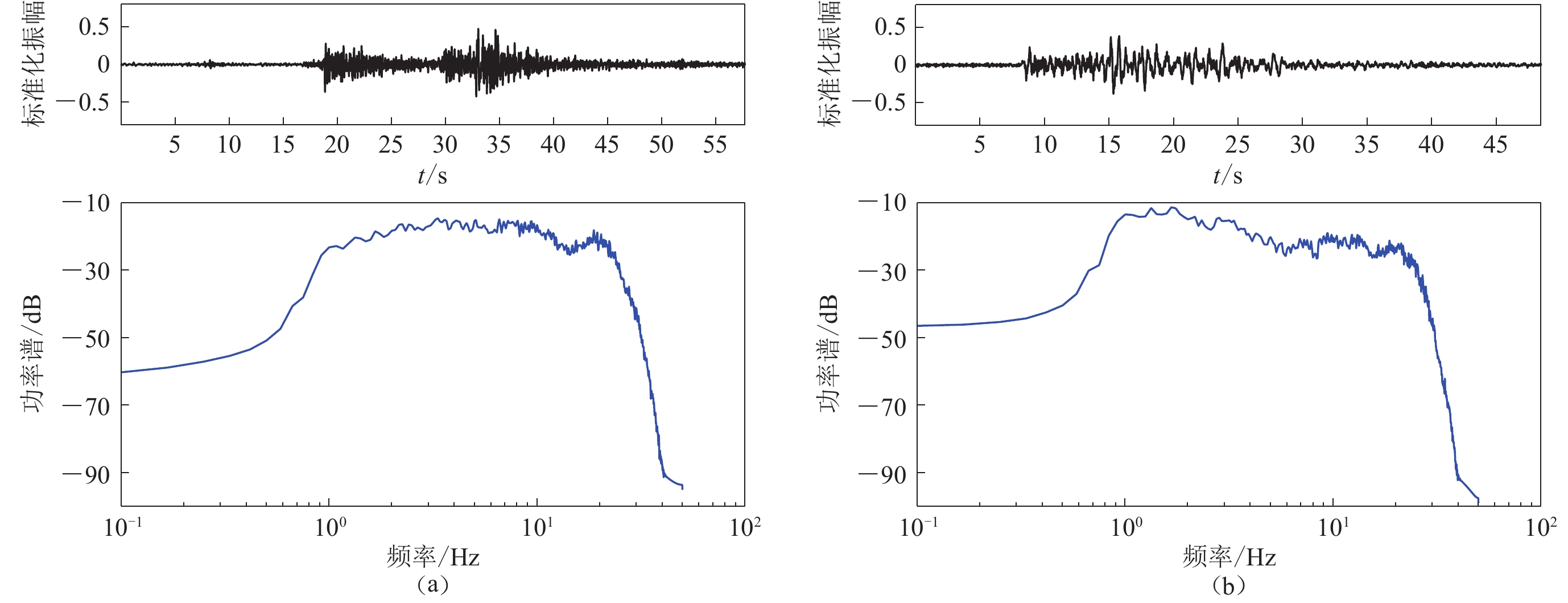

图 5 MS2.0天然地震（a）和人工爆破（b）经1—25 Hz带通滤波的波形及功率谱
Figure 5. Waveforms with 1−25 Hz bandpass filter and power spectra of MS2.0 earthquake （a） and explosion （b）
![]()

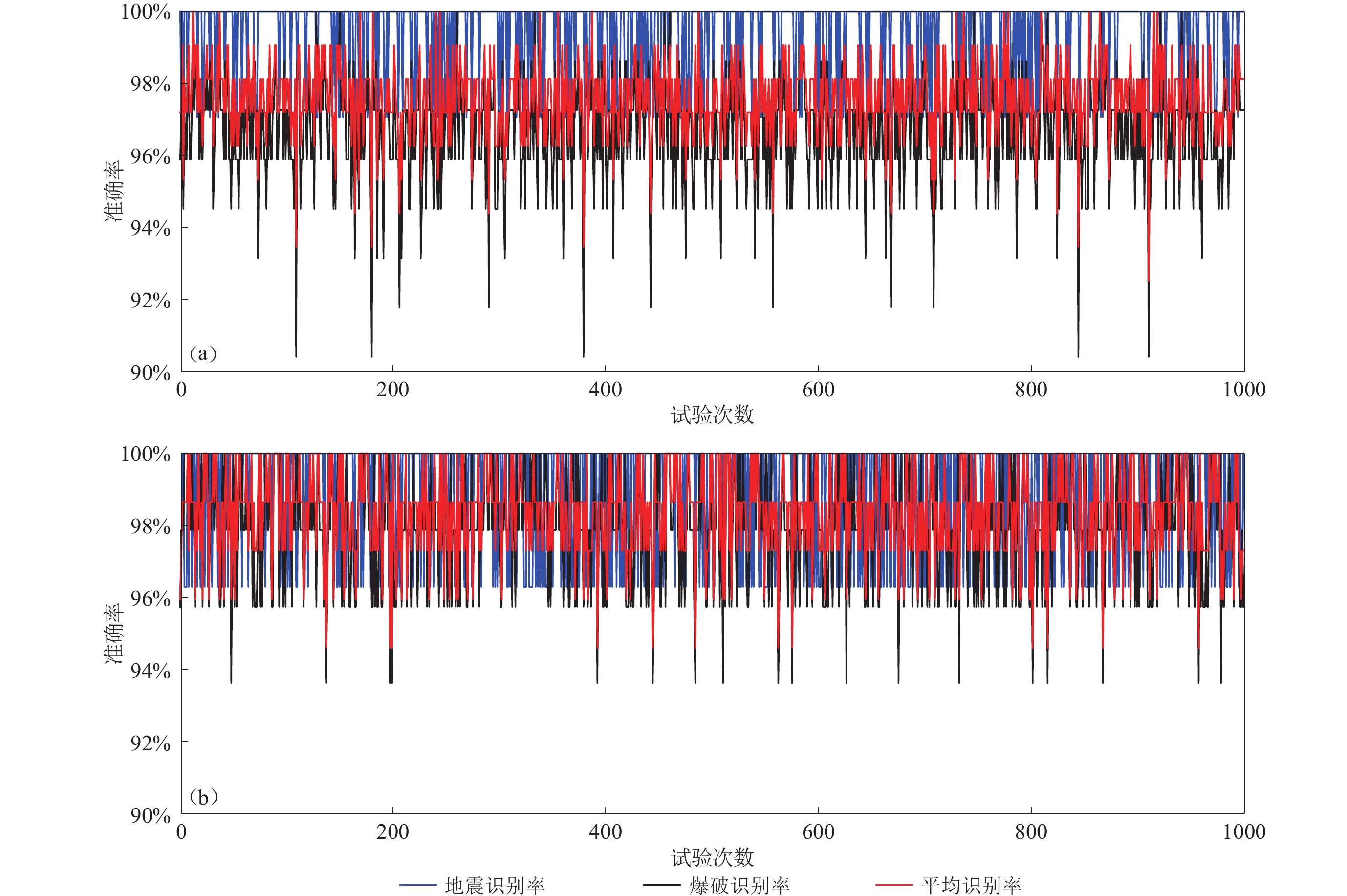

图 6 基于台站记录的试验结果
图（a）和（b）为第一组试验中的100次随机子试验和1 000次随机子试验，每次子试验从地震和爆破中分别抽取20次事件进行训练，余下的事件作为预测；图（c）和（d）分别表示第二组试验中100次随机子试验和1 000次随机子试验，每次子试验从地震和爆破中分别抽取 27和46次事件进行训练，余下的事件作为预测
Figure 6. Test results based on station records
Figs. （a） and （b） are the results for the 100 random subtests and 1 000 random subtests in the first group， each subtest selects 20 events from earthquakes and explosions for training，and the remaining events are used as predictions；Figs. （c） and （d） are the results for 100 random subtests and 1 000 random subtests in the second group，each subtest selects 27 and 46 events from earthquakes and explosions for training，and the remaining events are used as predictions
![]()
图 7 基于事件的100次随机子试验结果
图（a）为第一组试验中的100次随机子试验，每次的子试验从地震和爆破中分别抽取20次事件进行训练，余下的事件作为预测；图（b）为第二组试验中的100次随机子试验，每次子试验从地震和爆破中分别抽取27和46次事件进行训练，余下的事件作为预测。图中红、蓝线条分别代表基于50%，60%台站记录被正确判别为识别标准（基于事件）的识别率
Figure 7. Results of 100 random subtests based on the events
Figs. （a） and （b） represent 100 random subtests in the first group and the second group，respectively. Fig. （a） indicates that each subtest takes 20 events from the blasting and earthquakes for training，and the remaining events are used as predictions；Fig. （b） indicates that each subtest takes 46 and 27 events from the blasting and earthquakes for training，and the remaining events are used as predictions.
![]()
表 1 各卷积层输入及输出的通道数量
Table 1 The number of channels for input and output of each convolution layer
卷积层 输入通道数 输出通道数 卷积层 输入通道数 输出通道数 卷积层 输入通道数 输出通道数 1 1 8 6 32 64 11 256 256 2 8 16 7 64 64 12 256 512 3 16 16 8 64 128 13 512 512 4 16 32 9 128 128 14 全连接 5 32 32 10 128 256
下载: 导出CSV
表 2 基于事件的3组试验结果对比
Table 2 Comparison of the three groups of event-based test results
试验组 随机子
试验次数基于50%记录被正确
判别的平均识别率基于50%记录被正确
判别的地震识别率基于50%记录被正确
判别的爆破识别率平均值 最大值 最小值 平均值 最大值 最小值 平均值 最大值 最小值 第一组 100 97.7% 100% 93.5% 99.4% 100% 97.1% 96.9% 100% 91.8% 1 000 97.6% 100% 92.5% 99.3% 100% 97.1% 96.8% 100% 90.4% 第二组 100 98.4% 100% 95.9% 98.7% 100% 96.3% 98.3% 100% 93.6% 1 000 98.3% 100% 94.6% 98.8% 100% 90.5% 98.1% 100% 93.6% 留一交叉验证 97.3% 96.3% 97.8%
下载: 导出CSV
-
