Study on the mechanical properties of core about borehole strain meters based on uniaxial compression experiment
-
摘要: 采用室内岩石力学试验方法—单轴压缩试验，对江苏省钻孔应变仪岩芯试样进行单轴压缩试验，通过应力-应变曲线特征和变形特性获取了钻孔岩芯的力学参数，定量化地了解和掌握钻孔岩芯性质；在观测资料的基础上计算面应变耦合系数，对比研究试样的单轴抗压强度和弹性模量与面应变耦合系数的关系。结果表明，弹性模量E对面应变耦合系数A有显著的影响，随着岩石弹性模量的增大，面应变耦合系数呈线性增长，二者具有很好的相关性。Abstract: First, using uniaxial compression experiment to the borehole cores of body strain meters in Jiangsu, based on the stress strain curve and characteristics of deformation to obtain the mechanical properties of strain meters borehole core quantitatively. Second, using analysis method to calculate coupling coefficient of the plane strain so as to obtain the relationship between coupling coefficient of the plane strain and the mechanical properties. We observe the effects between coupling coefficient of the plane strain and the uniaxial compressive strength and elastic modulus. The results show that the elastic modulus of borehole has obvious influence on coupling coefficient of the plane strain, and with the increase of coupling coefficient of the plane strain, the elastic modulus of rock increase in linear, and the two have a good correlation. The main factor of the mechanical properties of borehole leads to the great difference of coupling coefficient of the plane strain for borehole strain.
-
-
![]()
图 3 单轴压缩条件下灰岩应力-应变曲线
Figure 3. Stress-strain curves of limestone samples in uniaxial compression experiment
![]()
图 6 单轴压缩条件下片麻岩应力-应变曲线
Figure 6. Stress-strain curves of gneiss samples in uniaxial compression experiment
![]()
图 4 单轴压缩条件下安山岩应力-应变曲线
Figure 4. Stress-strain curves of andesite samples in uniaxial compression experiment
![]()
图 5 单轴压缩条件下砂岩应力-应变曲线
Figure 5. Stress-strain curves of sandstone samples in uniaxial compression experiment
![]()

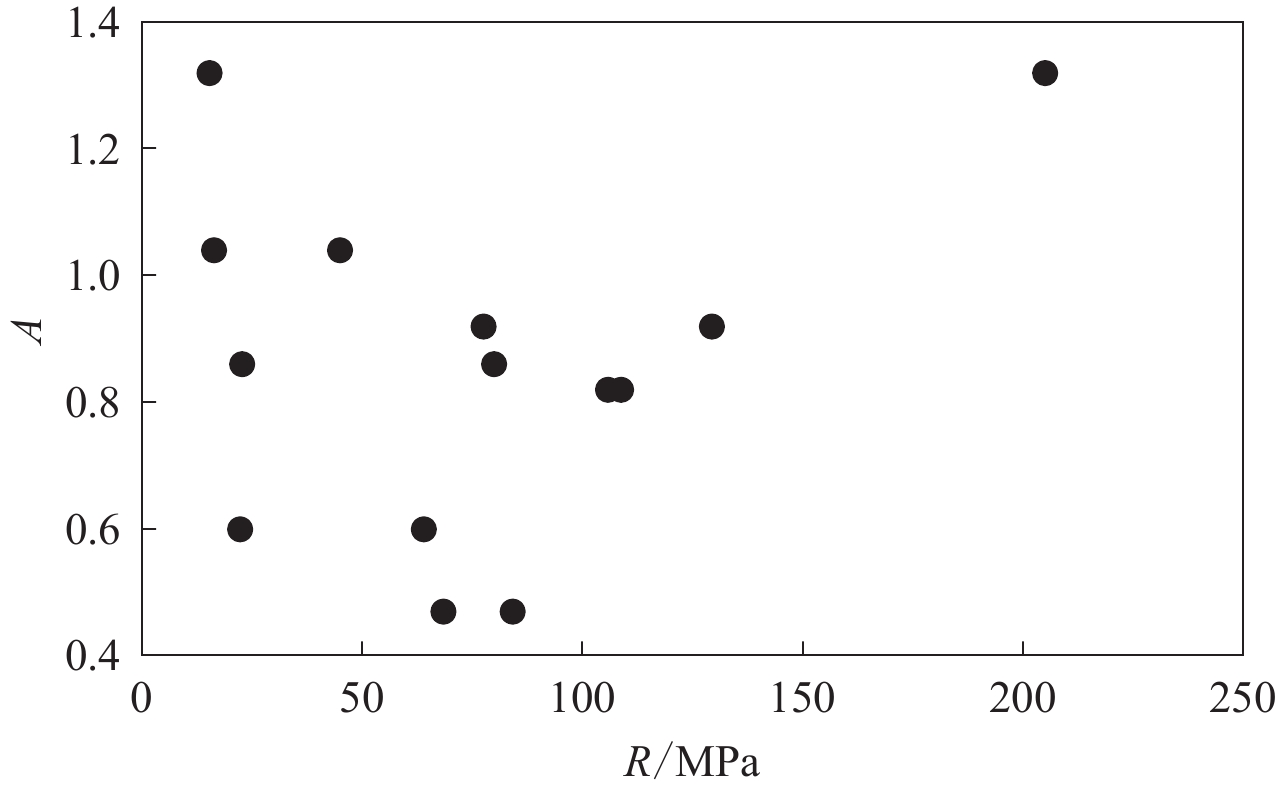

图 7 耦合系数A与单轴抗压强度R之间的关系
Figure 7. The relationship between the uniaxial compressive strength R and coupling coefficient A of the plane strain
![]()

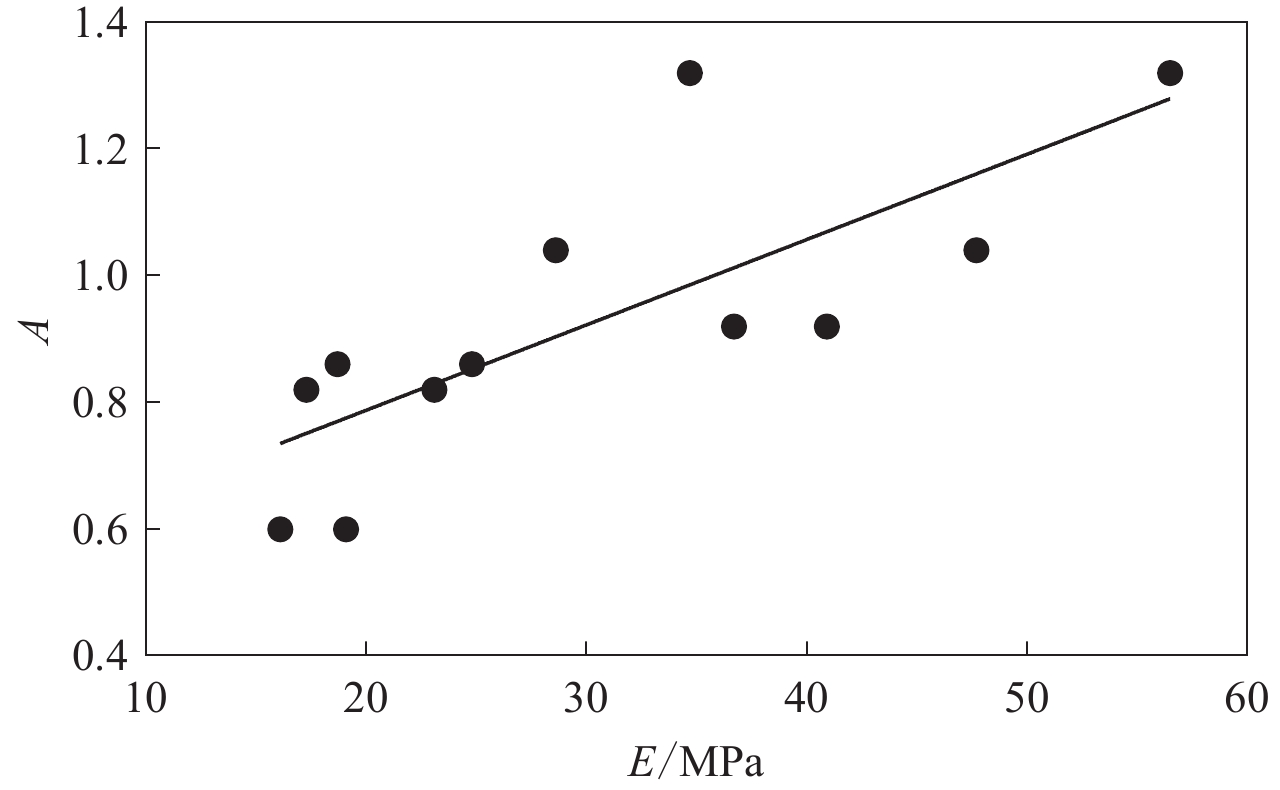

图 8 耦合系数A与弹性模量E之间的关系
Figure 8. The relationship between modulus E and coupling coefficient A of the plane strain
表 1 取样岩芯深度、尺寸及岩石名称
Table 1 The depth, size and properties of rock samples
岩石
属性钻孔
编号组号 取样
深度/m试样尺寸/mm 直径 高度 灰岩 JS01 1 51 31.23 108.35 2 31.23 106.74 JS02 3 87 31.23 61.21 4 31.23 28.97 安山岩 JS03 5 50 31.50 116.61 6 31.50 113.50 JS04 7 60 31.50 116.46 8 31.50 115.77 砂岩 JS05 9 44 31.50 82.36 10 31.50 94.81 JS06 11 60 31.50 113.15 12 31.50 110.83 片麻岩 JS07 13 61 31.23 59.45 14 41.59 46.41
下载: 导出CSV
表 2 各岩样的力学参数
Table 2 The mechanical parameters of rock samples
钻孔编号 组号 抗压强度R/MPa 弹性模量E/GPa JS01 1 108.78 23.1 2 105.82 15.3 JS02 3 15.42 34.7 4 205.05 56.5 JS03 5 80.01 24.8 6 22.76 18.7 JS04 7 44.95 28.6 8 16.45 47.7 JS05 9 64.00 19.1 10 22.28 16.1 JS06 11 84.12 48.6 12 68.41 34.5 JS07 13 129.41 36.7 14 77.56 40.9
下载: 导出CSV
-
陈瑜,黄永恒,曹平,衣永亮,李娜,李丽娟. 2010. 不同高径比时软岩强度与变形尺寸效应试验研究[J]. 中南大学学报(自然科学版),41(3):1073–1078. Chen Y,Huang Y H,Cao P,Yi Y L,Li N,Li L J. 2010. Size effect experimental study of strength and deformation in different height-to-diameter ratio soft rocks[J]. Journal of Central South University (Science and Technology)
,41(3):1073–1078 (in Chinese). 池顺良,武红岭,骆鸣津. 2007. 钻孔应变观测中潮汐因子离散性与各向异性原因探讨:“十五”数字地震观测网络分量钻孔应变仪首批观测资料分析解释[J]. 地球物理学进展,22(6):1746–1753. doi: 10.3969/j.issn.1004-2903.2007.06.010 Chi S L,Wu H L,Luo M J. 2007. Discussion on strain tidal factor separation and anisotropy:Analysis of first data of borehole component strain-meter of China’s digital seismological observational networks[J]. Progress in Geophysics,22(6):1746–1753 (in Chinese).
何斌,田韬,王恒知. 2018. 基于钻孔特性的体应变观测相关性研究[J]. 地震工程学报,40(1):153–158. doi: 10.3969/j.issn.1000-0844.2018.01.153 He B,Tian T,Wang H Z. 2018. Study on correlation of volume strain observation based on borehole features[J]. China Earthquake Engineering Journal,40(1):153–158 (in Chinese).
贾媛,甘卫军,李杰,朱成林,殷海涛,卢双苓,鞠佳斌. 2019. 抽水对泰安地震台钻孔分量应变的影响及其机制[J]. 地震地质,41(6):1429–1443. doi: 10.3969/j.issn.0253-4967.2019.06.008 Jia Y,Gan W J,Li J,Zhu C L,Yin H T,Lu S L,Ju J B. 2019. Influence of pumping on four-component borehole strain at Tai’anseismic station and its interference mechanism[J]. Seismology and Geology,41(6):1429–1443 (in Chinese).
刘序俨,王紫燕,方宏芳,黄声明,王林. 2014. 对当前四分量钻孔应变观测的审视:以应变不变量为标尺[J]. 地球物理学报,57(10):3332–3346. doi: 10.6038/cjg20141020 Liu X Y,Wang Z Y,Fang H F,Huang S M,Wang L. 2014. Analysis of 4-component borehole strain observation based on strain invariant[J]. Chinese Journal of Geophysics,57(10):3332–3346 (in Chinese).
牛安福,张凌空,闫伟,吉平. 2011. 中国钻孔应变观测能力及在地震预报中的应用[J]. 大地测量与地球动力学,31(2):48–52. Niu A F,Zhang L K,Yan W,Ji P. 2011. Borehole strain measurement and application to earthquake prediction in China[J]. Journal of Geodesy and Geodynamics,31(2):48–52 (in Chinese).
邱泽华,石耀霖,欧阳祖熙. 2005. 四分量钻孔应变观测的实地相对标定[J]. 大地测量与地球动力学,25(1):118–122. Qiu Z H,Shi Y L,Ouyang Z X. 2005. Relative in-situ calibration of 4-component borehole strain observation[J]. Journal of Geodesy and Geodynamics,25(1):118–122 (in Chinese).
邱泽华. 2017. 钻孔应变观测理论和应用[M]. 北京: 地震出版社: 93–116. Qiu Z H. 2017. Borehole Strain Observation, Theory and Application [M]. Beijing: Seismological Press: 93–116 （in Chinese）.
王恒知,周昱辰,何斌,王俊. 2019. 溧阳地区强震动台站场地特征研究[J]. 防灾减灾工程学报,39(6):1005–1009. Wang H Z,Zhou Y C,He B,Wang J. 2019. Study on site characteristics of strong motion stations in Liyang city[J]. Journal of Disaster Prevention and Mitigation Engineering,39(6):1005–1009 (in Chinese).
王文星. 2004. 岩石力学[M]. 长沙: 中南大学出版社: 5–12. Wang W X. 2004. Rock Mechanics[M]. Changsha: Central South University Press: 5–12 （in Chinese）.
中国地震局监测预报司. 2008. 地形变测量[M]. 北京: 地震出版社: 226–245. Monitoring and Forecasting Department of China Earthquake Administration. 2008. Ground Deformation Measurement[M]. Beijing: Seismological Press: 226–245 （in Chinese）.
熊振,李清河,张元生,侯康明,金淑梅,周彩霞. 2016. 郯庐断裂带鲁苏晥段未来强震可能发生地段初探[J]. 地震地质,38(4):964–977. doi: 10.3969/j.issn.0253-4967.2016.04.013 Xiong Z,Li Q H,Zhang Y S,Hou K M,Jin S M,Zhou C X. 2016. Preliminary discussion on the possible area of strong earthquake occurrence in future along the Shandong-Jiangsu-Anhui segment of Tancheng-Lujiang fault zone[J]. Seismology and Geology,38(4):964–977 (in Chinese).
姚瑞,杨树新,王迪. 2016. 裂隙对四分量钻孔应力-应变观测影响的数值模拟分析[J]. 岩土工程学报,38(2):331–335. doi: 10.11779/CJGE201602017 Yao R,Yang S X,Wang D. 2016. Numerical simulation analysis of effects of cracks on 4-component borehole observation of stress-strain[J]. Chinese Journal of Geotechnical Engineering,38(2):331–335 (in Chinese).
杨小林,杨锦玲,危自根. 2020. 中国东南沿海地区钻孔体应变对超强台风 “利奇马” 的响应特征与机制[J]. 地震学报,42(3):306–318. Yang X L,Yang J L,Wei Z G. 2020. Signature and physical mechanism of borehole dilatometers in response to super typhoon Lekima in southeastern coastal area of China[J]. Acta Seismologica Sinica,42(3):306–318 (in Chinese).
张凌空,牛安福. 2013. 分量式钻孔应变观测耦合系数的计算[J]. 地球物理学报,56(9):3029–3037. doi: 10.6038/cjg20130916 Zhang L K,Niu A F. 2013. Component borehole strain observations coupling coefficients calculation[J]. Chinese Journal of Geophysics,56(9):3029–3037 (in Chinese).
张凌空,牛安福. 2019. 周期气压波对地壳岩石应变测量影响的理论解[J]. 地球物理学进展,34(4):1366–1370. doi: 10.6038/pg2019CC0244 Zhang L K,Niu A F. 2019. Theoretical solution of periodic pressure wave effect on crustal rock strain measurement[J]. Progress in Geophysics,34(4):1366–1370 (in Chinese).
中华人民共和国住房和城乡建设部, 中华人民共和国国家质量监督检验检疫总局. 2013. GB/T 50266—2013 工程岩体试验方法标准[S]. 北京: 中国计划出版社: 19–21. Ministry of Housing and Urban Rural Development of the People’s Republic of China, General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China. 2013. GB/T 50266—2013 Standard for Test Methods of Engineering Rock Mass[S]. Beijing: China Planning Press: 19–21 （in Chinese）.
