Impact of topographic effect on ground motion characteristics in the extreme seismic region of Yangbi MS6.4 earthquake on May 21，2021
-
摘要:
基于对2021年5月21日漾濞MS6.4地震微观震中秀岭村进行的震害调查，利用流动观测地形台阵观测资料，分析了地形效应对地震动特性的影响。结果表明，若地震波垂直山脉走向入射，陡坡会放大地震波的高频部分，且不同高程处，山脉垂向低频差异较大，山脉走向低频差异较小。利用谱衰减法计算高频衰减参数的场地影响项κ0，分析了水平和竖向分量的κ0与场地软弱程度和卓越频率的相关性，其结果表明，在小尺度范围内，水平分量和竖向分量的κ0均具有较强的空间不均匀性。
Abstract:Historical earthquake experience has shown that complex terrain in mountainous areas can exacerbate earthquake damage. Complex terrain can alter the duration, amplitude and frequency characteristics of seismic waves, causing unanticipated and severe damage to buildings located on them. On May 21, 2021, a MS6.4 earthquake occurred in Yangbi, Yunnan Province. Near the epicenter of the earthquake, Xiuling village is located in a mountain range with a straight line distance of about 4.5 km from the top to the foot of the mountain, with an elevation difference of about 800 m. The investigation found that the damage to the houses on the top of the mountain was serious, generally manifested as wall collapse or serious damage; the damage to the houses on the mountainside was moderate, manifested as wall collapse and foundation settlement; the damage to the houses at the foot of the mountain was relatively light, without wall collapse, and was dominated by the tensile cracks in the contact surfaces of the structural columns and load-bearing walls. According to the difference in topographic seismic damage, four strong motion observation stations were set up at the top of the mountain, the mountainside and the foot of the mountain in Xiuling village, respectively, on June 8, and a reference station was set up in Huai’an village, which is located in a basin, with a total of five stations, and a total of 63 aftershocks with magnitudes ranging from 1.0 to 4.9 were recorded by the topographic mobile observation station array. According to the spatial distribution of mobile stations and aftershocks, the size of aftershocks and the mountain range orientation, three earthquakes with different magnitudes were selected for acceleration recording analysis, and the analysis results show that when the seismic waves are incident perpendicular to the mountain range orientation, there is anomalous amplification of the high frequency at the steep slopes of the mountainside, and the low-frequency portion of the Fourier amplitude spectrum at different elevations differs significantly along the mountain range orientation and the vertical orientation, at the same time the analysis results of the basin station under the three seismic effects also reflect the directional difference of the basin effect. A method is used to calculate the site effect term κ0 of the high-frequency attenuation parameters, and the correlation between the horizontal and vertical components of κ0 and the site softness and predominant frequency is analyzed, and the results show that, in the close range （＜30 km）, κH correlates with the softness of the local site conditions, which is determined by the predominant frequency and the peak amplification bandwidth of the site, and κV has a weaker correlation with local site softness, both of which have a decreasing trend with increasing local site predominant frequency, κV is especially obvious. Due to the relatively small number of observation stations, the relevant conclusions are only for the present study area. Considering the complexity of the actual mountainous terrain, more actual observational data are needed for validation. Through further verifying, it can provide a useful reference for the site adjustment estimated from ground motion impact on a small scale.
-
2021年5月22日青海果洛州玛多县发生MS7.4地震，震中位于（34.59°N，98.34°E），其震源机制解显示该地震为高倾角走滑型（张喆，许立生，2021）。玛多地震的发震构造为昆仑山口—江错断裂，是东昆仑断裂的一条分支断裂（王未来等，2021）。玉树地震台位于甘孜—玉树断裂附近。玛多地震震中和玉树地震台均位于巴颜喀拉次级地块内，玉树地震台位于巴颜喀拉地块的南边界。此次地震震中处于玉树地震台的NE方向，距巴颜喀拉地块北边界85 km （图1）。
玛多地震前玉树地震台井水温呈现异常变化。2021年3月15日9时玉树地震台井水温出现突降，截止到16日0时，最大降幅约0.002 6 ℃，之后水温逐步回返恢复，总体呈不规则的“V”型变化（图2）。2021年5月22日青海果洛州玛多县发生MS7.4地震，异常测项距震中220 km。
![]()
图 2 2021年玛多MS7.4地震前玉树地震台井水温整点值观测曲线Figure 2. The observation curve of hourly well water temperature in Yushu seismic station before the 2021 Maduo MS7.4 earthquake玉树地震台水温观测井深105 m，井内套管下设深度100 m，水温观测仪器为SWY- Ⅰ 型数字水温仪，传感器到井口的距离为12.168 m，井孔岩芯为中生代侏罗纪浅成花岗岩。自2007年6月开始观测，数据稳定连续，高频波动明显，2012年至2013年间断性仪器故障，存在长时间的数据缺失（图3）。2017年11月仪器改造，更换为SZW- Ⅱ 型水温仪，数据连续稳定（图4）。
![]()
图 3 2007—2017年玉树地震台井水温整点值观测曲线Figure 3. The observation curves of hourly well water temperature in Yushu seismic station from 2007 to 2017![]()
图 4 2018年以来玉树地震台井水温整点值观测曲线Figure 4. The observation curve of hourly well water temperature in Yushu seismic station since 20182021年3月15日玉树地震台井水温出现异常变化后观测人员进行现场异常核实。现场调查可知：仪器工作状态正常，附近无施工和灌溉抽水情况，基本排除了人类活动和自然环境造成的干扰（孙小龙等，2020）。对观测井和距观测井20 m的饮用泉进行取样，与2018年的取样结果进行对比分析，结果（表1）显示：两次采样结果均在“未成熟水”范围内，水化学类型均属HCO3-Ca型（张磊等，2019）；2021年饮用泉的
${\rm{HCO}}_3^{-} $ 浓度较2018年显著增大，考虑其水体溶解的CO2含量增加，可能指示区域存在断裂活动的迹象（康来迅等，1999）。表 1 2018年与2021年玉树地震台水样结果对比Table 1. Comparison of water sample results in Yushu seismic station in the year 2018 and 2021样品编号 各组分浓度/（mg·L−1） Ca2+ Mg2+ Na+ K+ HCO3− ${\rm{SO} }_4^{2 - }$ Cl− 2021年观测井 51.31 22.9 23.09 4.52 354.1 33.71 2.15 2021年饮用泉 72.88 27.16 22.07 4.51 423.1 39.48 2.45 2018年观测井 67.16 24.25 26.56 9.91 346 45.56 9.95 2018年饮用泉 75.29 23.68 22.84 10.07 340.5 49.9 9.73 玉树地震台井水温测项自2007年观测以来，一共出现7次异常，异常对应率为100%，对应于M5.0以上地震（图3，4），一般在异常出现后3个月内发震，地震分散在青藏高原内部（何案华等，2012；王博等，2016；杨晓霞等，2016）。为获得更为明确的时空强指示信息，以本次“突降—缓慢上升”的异常形态对震例进一步梳理，结果列于表2，可见：震例指示异常开始的三个月内青藏高原巴颜喀拉地块边界及其附近的M7.0以上地震（图5）（芦山MS7.0地震发生在观测数据断记期间，故未统计在内）。异常指标通过预报效能检验的R值评分为R＝0.61，R0＝0.45 （张国民等，2002）。因此在井水温异常上升恢复的过程中发生于2021年3月19日的西藏那曲MS6.1地震经研判认为非目标地震，异常仍需跟踪，而2021年5月22日玛多MS7.4满足异常所指示的时空强三要素特征。
表 2 玉树地震台井水温震例统计Table 2. Earthquake case statistics of water temperature in Yushu seismic station序号 异常起始时间 异常形态 异常幅度/℃ 持续时间/d 井震距km 对应地震 1 2008-03-15 突降—上升 0.022 18 643 2008年3月21日于田MS7.3，2008年5月12日汶川MS8.0 2 2010-01-19 突降—上升 0.029 24 46 2010年4月14日青海玉树MS7.1 3 2021-03-15 突降—上升 0.002 6 36 20 2021年5月22日玛多MS7.4 ![]()
图 5 玉树地震台对应于三次大地震的井水温异常整点值曲线Figure 5. The anomalous hourly value curve of well water temperature in Yushu seismic station corresponding to the three major earthquakes在地震孕育过程中，区域应力应变状态发生改变，在应力加载作用下，含水层岩体变形、相应的孔隙压力发生变化，导致井-含水层系统的水动力条件改变，进而引起井水微温度场发生改变（车用太等，1996；鱼金子等，1997；孙小龙，刘耀炜，2006）。玛多MS7.4为左旋走滑型地震，玉树地震台井水温测项位于其主动盘一侧，在孕震后期临近发震时，应力加载作用显著增强，可能造成水温测项所在区域的短期应力加载，微破裂大量发育，使不同含水层的地下水串通混合，进而水温快速下降，之后井-含水层系统趋于稳定，水温缓慢上升恢复。
综合异常核实和震例梳理结果显示，此次玉树地震台井水温异常信度较高，从时空强三要素较好地对应于2021年5月22日玛多MS7.4地震。通过对水温前兆异常的可能机理探讨分析，玉树地震台作为巴颜喀拉地块上地球物理场观测的构造敏感点，其井水温的异常变化对该地块上的地震孕震过程具有较好的短期指示意义，在未来震情跟踪过程中应予以重点关注。
-
![]()
图 8 三次地震作用下流动台阵加速度平行山脉走向（a）、垂直山脉走向（b）和竖向（c）的傅里叶振幅谱
Figure 8. Fourier amplitude spectrum of mobile array acceleration parallel to the mountain range strike （a）， perpendicular to the mountain range strike （b） and vertical （c） for three earthquakes
![]()
图 1 山顶、山腰和山脚位置处的地震破坏情况对比
（a） 山顶房屋东西向墙体倒塌；（b） 山顶房屋四面墙体倒塌；（c） 山腰房屋山墙倒塌；（d） 山腰房屋地基沉降；（e） 山脚房屋墙体拉裂
Figure 1. Comparison of seismic damage at top，mountainside and foot
（a） Collapse of the east-west wall of a house at the top of the mountain；（b） Collapse of all the walls of a house at the top of the mountain；（c） Collapse of the gable wall of a house on the mountainside；（d） Subsidence of the foundation on the mountainside；（e） Pull apart of the wall of a house at the foot of the mountain
![]()

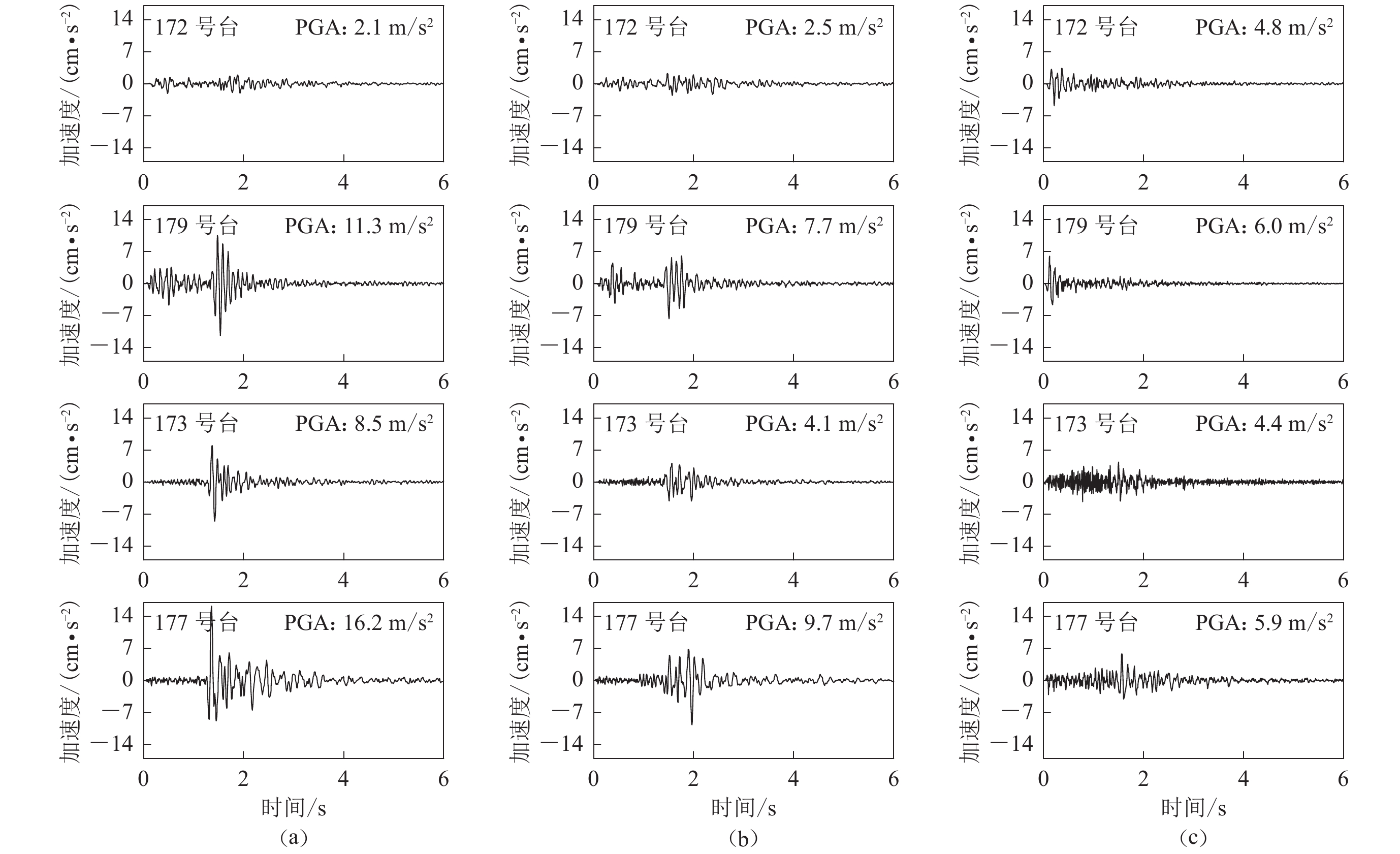

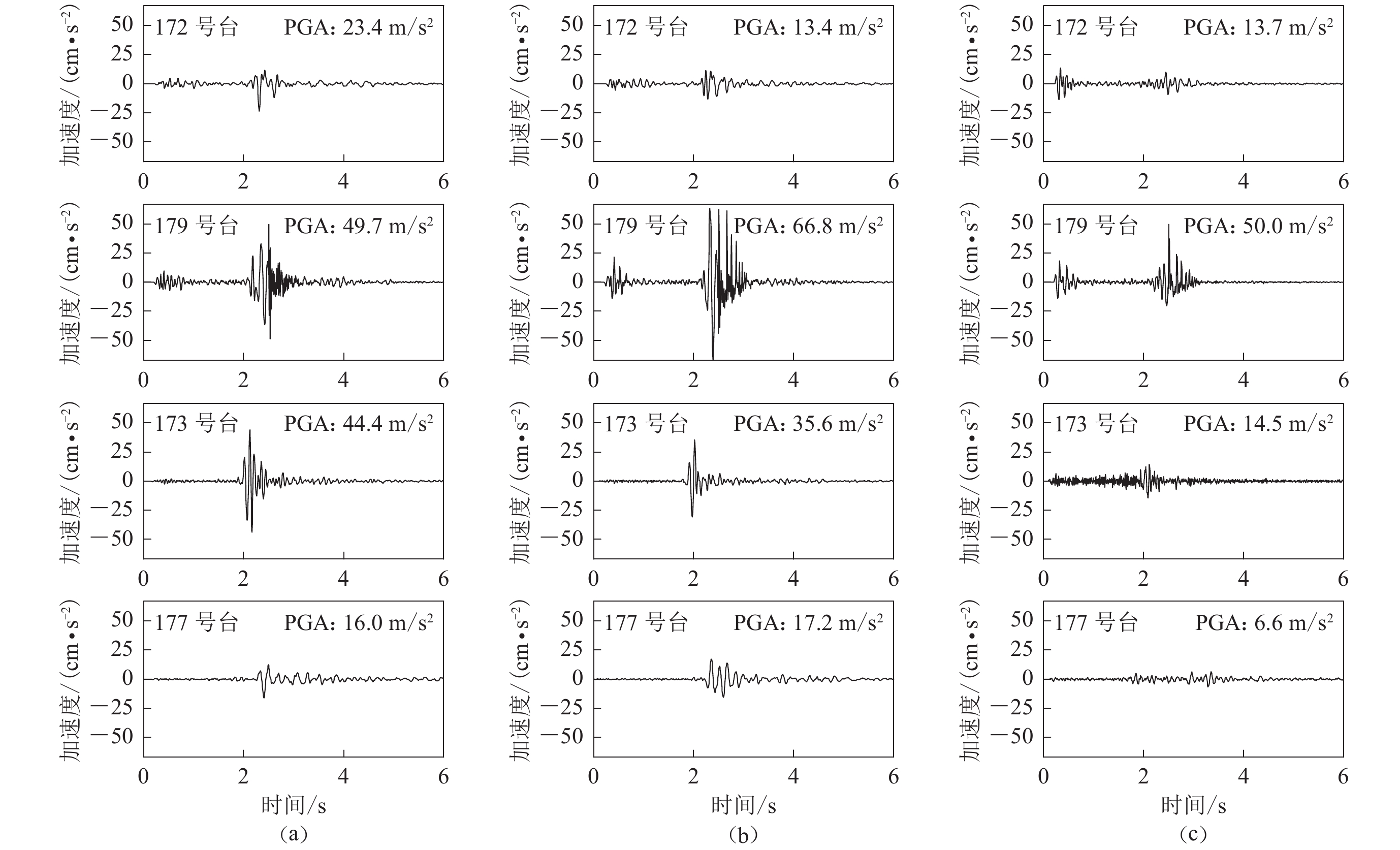

图 4 MS4.1地震作用下流动台阵的加速度东西向（a）、南北向（b）和竖向（c）时程
Figure 4. The acceleration time histories in east-west （a），north-south （b） and vertical （c） directions for the mobile array under the effect of the MS4.1 earthquake
![]()
图 5 MS3.4地震作用下流动台阵的加速度东西向（a）、南北向（b）和竖向（c）时程
Figure 5. The acceleration time histories in east-west （a），north-south （b） and vertical （c） directions for the mobile array under the effect of the MS3.4 earthquake
![]()
图 6 MS2.5地震作用下流动台阵的加速度东西向（a）、南北向（b）和竖向（c）时程
Figure 6. The acceleration time histories in east-west （a），north-south （b） and vertical （c） directions for the mobile array under the effect of the MS2.5 earthquake
![]()

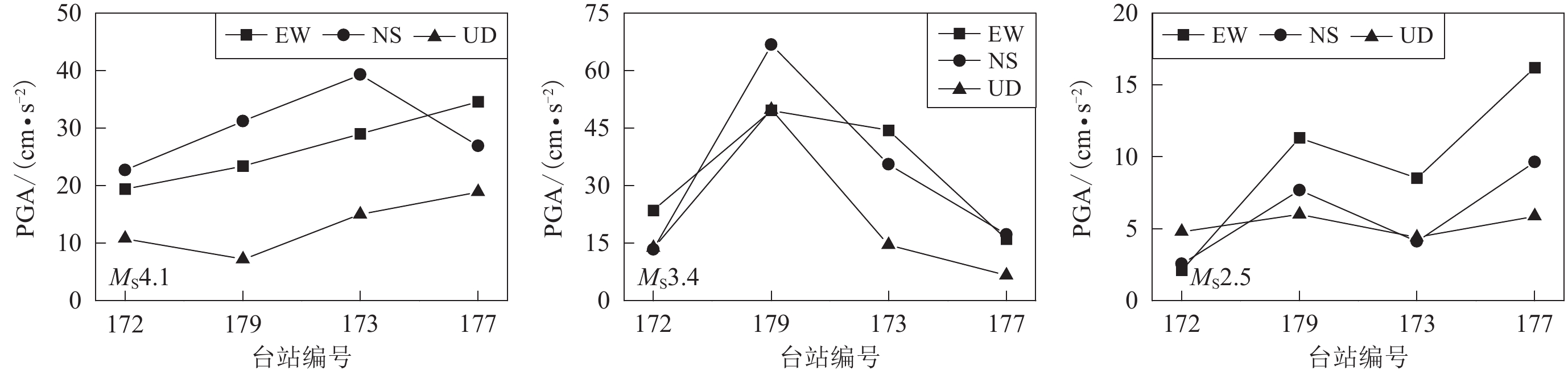

图 7 三次地震作用下不同台站（即不同高程） PGA 的变化规律
Figure 7. Variation of PGA at different stations （at different elevations） under the three earthquakes
![]()

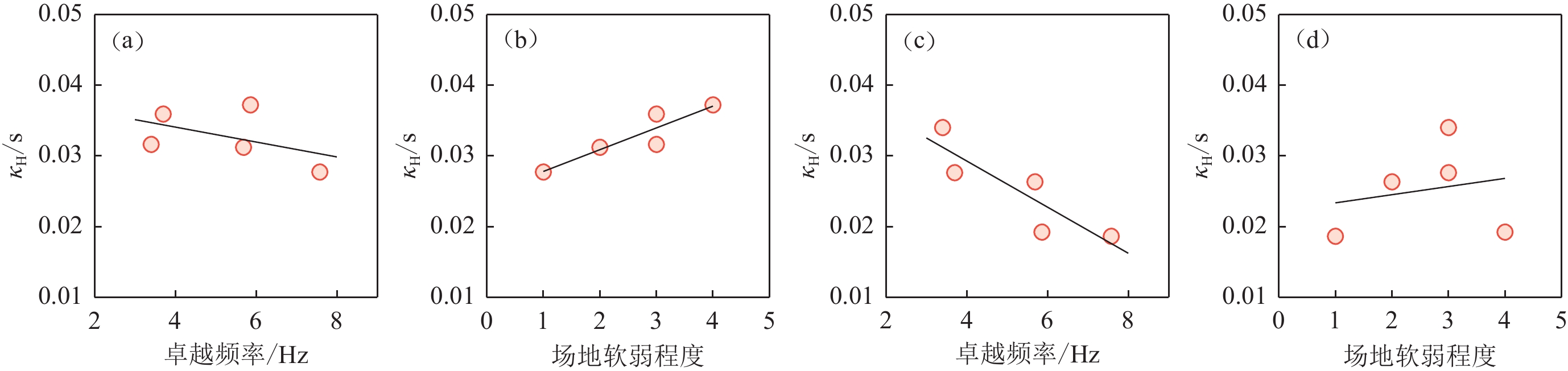

图 11 ${ {\textit{κ}} }_{\mathrm{H}}$ （a，b）和${ {\textit{κ}} }_{\mathrm{V}}$ （c，d）随场地卓越频率、场地软弱程度的变化规律
Figure 11. Changes in ${ {\textit{κ}} }_{\mathrm{H}}$ （a，b） and ${ {\textit{κ}} }_{\mathrm{V}}$ （c，d） with site predominant frequency and site weakness
表 1 流动地形台阵台站信息
Table 1 Mobile terrain array station information
台站编号 场地类型 台站位置 高程/m 记录组数 台站编号 场地类型 台站位置 高程/m 记录组数 东经/° 北纬/° 东经/° 北纬/° 172 山顶台地 99.92 25.64 2 300 40 173 山脚缓坡 99.96 25.66 1 523 40 179 山腰陡坡 99.92 25.64 2 180 40 177 狭长盆地 99.94 25.69 1 505 39 175 山腰台地 99.92 25.65 2 070 8
下载: 导出CSV
表 2 流动地形台阵地震记录情况（2021年6月8日—7月11日）
Table 2 Seismic records of mobile terrain array （June 8−July 11，2021）
震级范围 地震次数 记录组数 震中距范围/km 1.0—1.9 31 63 0.9—13.2 2.0—2.9 29 92 0.9—16.4 3.0—3.9 2 8 2.2—8.5 4.0—4.9 1 4 5.8—24.9 总计 63 167 —
下载: 导出CSV
表 3 三次地震中四个台站对应的震中距
Table 3 Epicentral distance corresponding to four stations in three earthquakes
台站编号 MS4.1 MS3.4 MS2.5 172 16.8 14.2 11.8 179 16.6 14.2 11.8 173 13.8 13.0 12.9 177 12.0 15.7 12.5
下载: 导出CSV

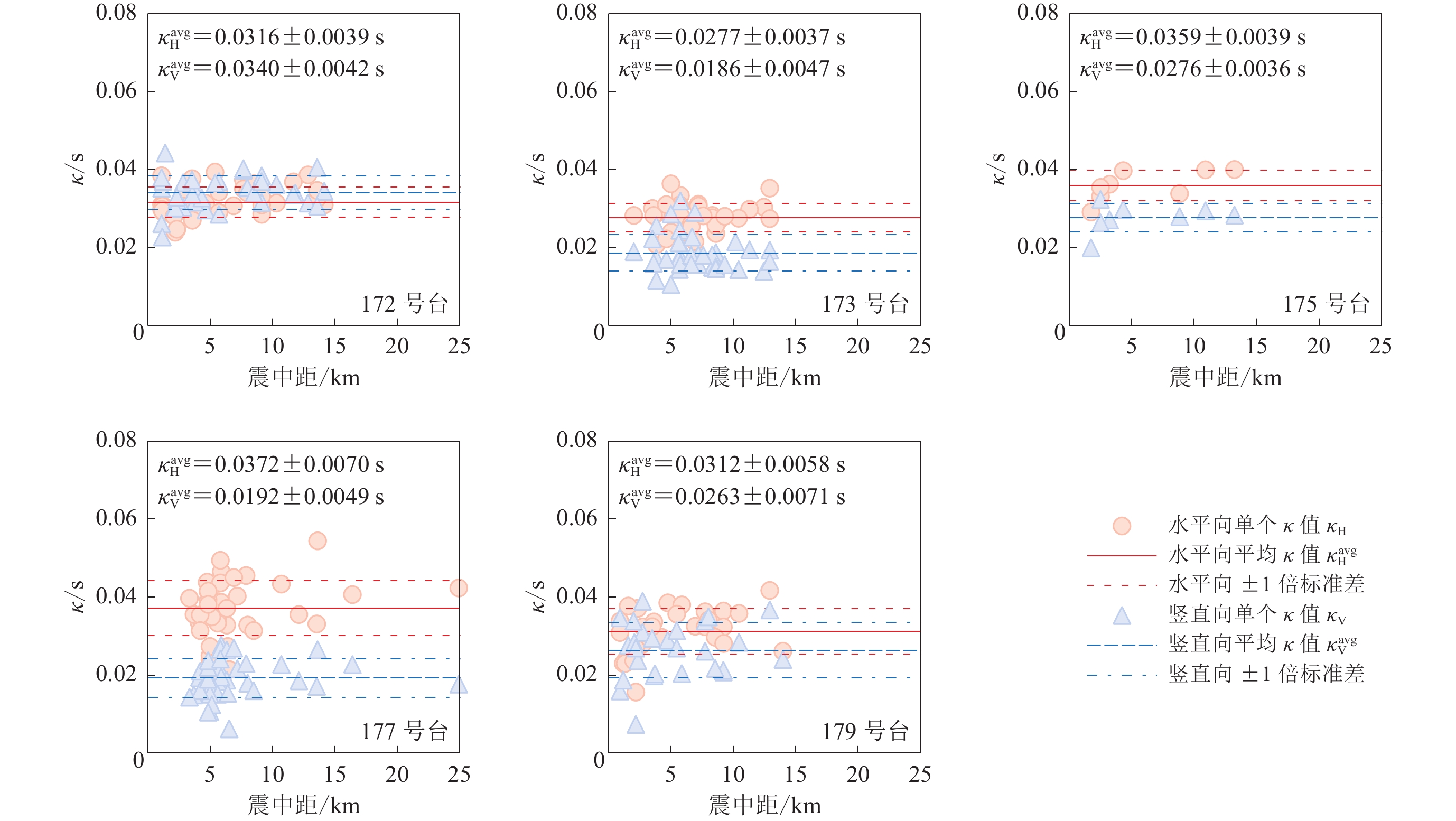

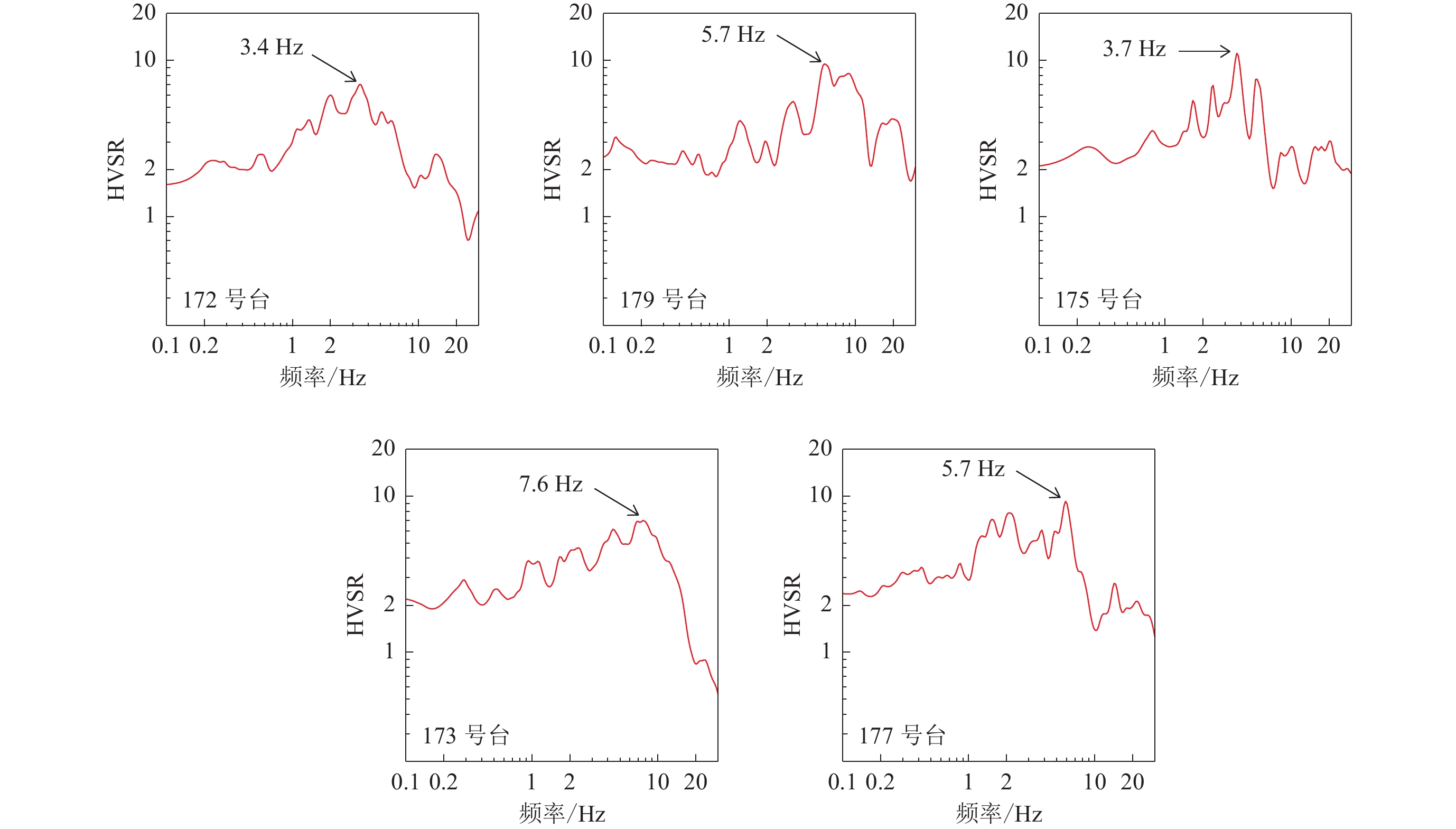

表 4 五个流动台高频衰减参数信息
Table 4 High frequency attenuation parameter information of five mobile stations
台站编号 软弱程度 fres/Hz ${ {\textit{κ}} }_{\mathrm{H} }$/s ${ {\textit{κ}} }_{\mathrm{V} }$/s 172 3 3.40 0.031 6 0.034 0 175 3 3.70 0.035 9 0.027 6 179 2 5.69 0.031 2 0.026 3 177 4 5.86 0.037 2 0.019 2 173 1 7.58 0.027 7 0.018 6 注：表中fres为场地卓越频率，${ {\textit{κ}} }_{\mathrm{H} } $为水平向场地项，${ {\textit{κ}} }_{\mathrm{V} } $为竖直向场地项
下载: 导出CSV
-
