静动力边界转换及其合理性验证方法的研究

马笙杰, 迟明杰, 陈学良, 陈苏, 陈红娟, 邢浩洁

马笙杰,迟明杰,陈学良,陈苏,陈红娟,邢浩洁. 2024. 静动力边界转换及其合理性验证方法的研究. 地震学报,46(1):157−171. DOI: 10.11939/jass.20220136
引用本文: 马笙杰,迟明杰,陈学良,陈苏,陈红娟,邢浩洁. 2024. 静动力边界转换及其合理性验证方法的研究. 地震学报,46(1):157−171. DOI: 10.11939/jass.20220136
Ma S J,Chi M J,Chen X L,Chen S,Chen H J,Xing H J. 2024. Research on the static-dynamic boundary switch and its rationality verification method. Acta Seismologica Sinica46(1):157−171. DOI: 10.11939/jass.20220136
Citation: Ma S J,Chi M J,Chen X L,Chen S,Chen H J,Xing H J. 2024. Research on the static-dynamic boundary switch and its rationality verification method. Acta Seismologica Sinica46(1):157−171. DOI: 10.11939/jass.20220136

静动力边界转换及其合理性验证方法的研究

基金项目: 国家重点研发计划资助项目(2019YFC1509403)、国家自然科学基金重点项目(51639006)和国家自然科学基金资助项目(51878625)共同资助
详细信息
    作者简介:

    马笙杰,在读博士研究生,研究方向为岩土地震工程,e-mail:mashengjie18@mails.ucas.ac.cn

    通讯作者:

    迟明杰,博士,副研究员,研究方向为岩土工程和防灾减灾工程,e-mail:03115049@bjtu.edu.cn

  • 中图分类号: P315.9;TU435

Research on the static-dynamic boundary switch and its rationality verification method

  • 摘要:

    繁琐复杂的静动力边界转换处理是进行静动力耦合模拟的关键步骤,为了研究黏弹性边界条件下传统静动力边界转换的合理性及其验证方法的适用性,本文首先根据弹性叠加原理提出了一种验证静动力耦合模拟分析中静动力边界转换合理性的方法(参考解法);然后基于有限元软件ABAQUS,并结合自行研发的适用于成层介质的黏弹性边界施加和等效节点力计算程序VBEA2.0,对多土层自由场静动力耦合模型和土-地下结构静动力耦合模型进行了地震反应分析,对参考解法的适用性进行了探究;最后使用本文提出的参考解法,对一种典型的未进行合理静动力边界转换的自由场模型进行了分析,探讨了静动力边界转换产生振荡的原因和机理。研究结果表明:用于验证静动力边界转换合理性的参考解法,既适用于多土层自由场静动力耦合计算模型,又适用于土-结构相互作用的静动力耦合模型;静动力边界转换后产生的振荡是静动力耦合计算模型静力不平衡所导致,一般是因为未合理施加边界反力或单元应力。

    Abstract:

    In the dynamic analysis of underground structure subjected to seismic loading, dynamic boundary (e.g., viscous-spring boundary condition, transient wave transmission boundary, etc.) is essential to be adopted to absorb the reflected wave. Generally, the dynamic boundary is not applicable to the static analysis in the simulation of seismic response of underground structure. Taking the viscous-spring boundary condition as an example, if this dynamic boundary condition is applied during the static analysis phase the subsequent dynamic response will be significantly affected, since this operation results in incorrect input of ground motion in the numerical model. To solve this problem, the traditional approach involves employing a fixed boundary during static analysis, which is then replaced by a dynamic boundary during dynamic analysis. Specifically, the dynamic calculation is performed using a viscous-spring boundary condition based on the results obtained in the static analysis with static boundary condition. The complex process of switching between static and dynamic boundary is a significant step in the static-dynamic coupling simulation. However, oscillations occur at the onset of dynamic response when switching from a static to a dynamic boundary, affecting dynamic response of acceleration, velocity, displacement, etc.  To investigate the validity of the traditional scheme for switching static-dynamic boundary condition types (from static boundary to viscous-spring boundary) and the applicability of the verification method the following works were conducted: based on the superposition principle, a method for verifying the rationality of static-dynamic boundary switch is given (reference method). Using the finite element method software ABAQUS and the self-developed VBEA2.0 program, which can automatically set viscous-spring boundary and input seismic wave, the seismic response of layered free field and soil-underground structure models (Dakai metro station) considering integral static-dynamic analysis are analyzed. Based on these results, the applicability of the reference method is discussed. Adopting this reference method, an analysis is conducted on a free field model employing a typical, unreasonable static-dynamic switching method with the aim of shedding lights on the oscillations during the switching between the static and dynamic boundary condition. Finally, a potential mechanism for the observed oscillation in the process of switching boundary condition is proposed.  The simulation results indicate that the introduced method of switching boundary conditions for the viscous-spring boundary condition in seismic analysis performs well, effectively avoiding oscillations at the beginning of dynamic analysis. The procedure should be as follows: First, perform the static analysis to balance the in-situ stress; then, carry out the switching between static and dynamic boundaries; and finally, calculate the dynamic analysis. In particular, the rational application of nodal reaction force, gravity, and element stress is a key factor influencing the rationality of static-dynamic boundary switching.In addition to that, the proposed reference method for verifying the rationality of static-dynamic boundary switching is applicable to both the layered free field model and the soil-underground structure model based on the seismic response of the free field and the field embedding an underground structure. In the reference method, dynamic results of the elastic and non-damped model, without considering the static-dynamic coupling effects (reference model), are used as the benchmark solution for checking the dynamic response analysis. Dynamic response of the numerical model with the correct static and dynamic boundary switching should align with the corresponding dynamic response recorded in the reference model, in terms of acceleration, displacement time history. The second-order Euclidean norm is recommended for calculating the relative errors between the benchmark model and the numerical model which needs to check the validity of the traditional scheme for switching static-dynamic boundary. This can intuitively indicate the presence of oscillations in the early stage of dynamic calculation and assess the degree of their impact on the later stage, offering an effective tool to examine the rationality of static and dynamic boundary switching for a reasonable static-dynamic coupling analysis of soil-underground structure.  Lastly, to reveal the mechanism of oscillation in the switching process of static and dynamic boundary, a model with only nodal reaction forces on the truncated boundary extracted and applied for the dynamic phase, which is typically incorrect to switch the static boundary condition to dynamic boundary condition, is built and analyzed. This incorrect way generates substantial forces in the spring elements leading the inaccurate seismic wave input employing equivalent nodal forces in the dynamic phase, according to the magnitude of elastic fore for spring elements located at the viscous-spring boundary. This means the numerical model may underestimate the dynamic response as portion of the equivalent nodal forces are counteracted by these forces from the springs. Therefore, the oscillated response in this switching procedure of static-dynamic boundary is typically caused by the non-static equilibrium in the static-dynamic coupling calculation model, possibly resulting from incorrect static-dynamic boundary switching.

  • 2022年1月8日01时45分27秒青海省海北藏族自治州门源回族自治县发生MS6.9地震,震中位置为(37.77°N,101.26°E),震源深度为10 km。本次地震造成了17 069人受灾,由于震中距离人口稠密地区较远,尚无人员伤亡的相关报道(青海日报,2022),兰新高铁浩门至山丹军马场区间隧道群由于此次地震而发生局部塌方(央视网,2022)。门源MS6.9地震发生在青藏高原东北缘冷龙岭断裂、托莱山断裂和肃南—祁连断裂的阶区部位。现场工作队在冷龙岭断裂带西段探测到长约22 km的地表破裂带(青海省地震局,2022)。托莱山断裂和冷龙岭断裂现为左旋兼挤压断裂(李强等,2013),历史上无M7以上地震记载(姜文亮,2018),最近一次强震为2016年1月21日门源MS6.4地震,该地震的发生反映了青藏高原地块向NE向不断推挤生长的过程(胡朝忠等,2016)。门源MS6.9地震发生后,许英才等(2022)对门源地震早期序列(2022年1月8日至12日)进行了重定位和震源机制研究,其结果表明目前门源地区还存在一定的应力积累且应力尚未得到充分释放,该地区仍有发生强震的危险。由于地震灾害主要是地震在地表产生的强地面运动造成的,因此为了获得地震波场传播过程及其引起的地表响应,对门源MS6.9地震开展强地面运动初步模拟及烈度估计具有重要意义。

    地震波场的正演模拟需要考虑复杂地表。曲线网格有限差分方法(Zhang,Chen,2006;Zhang et al2012)适用于含起伏地形的地震波场模拟,该方法中地表的形状用任意曲线网格近似,并采用牵引力镜像法处理自由表面条件。曲线网格有限差分的强地面运动模拟方法在地震后的灾害评估中得到了非常广泛的应用。Zhang等(2008)结合三维介质模型、震源破裂模型和地表地形数据模拟了2008年汶川MS8.0地震的强地面运动,研究表明断层破裂方式和盆地构造控制了地表峰值速度(peak ground velocity,缩写为PGV)的分布,地表起伏剧烈地区往往对应较大的PGV数值,应关注其震害问题。张振国等(2014ab)对2014年2月12日新疆于田MS7.3地震和2014年8月3日云南鲁甸MS6.5地震引起的强地面运动作了初步模拟和烈度预测,研究显示地震动在山峰、山脊处具有较大幅值,该结果可指导震后的灾区重建工作。赵宏阳和陈晓非(2017)利用1975年2月4日辽宁海城MS7.3地震的地震地质资料,模拟计算了海城地震的波场传播过程,分析了强地面运动的方向性效应、盆地效应和近断层效应,得出理论烈度分布同震后调查烈度分布基本一致,验证了研究所用的震源模型和速度结构的合理性。

    本文拟根据张勇提供的门源地震震源破裂过程的初步结果,利用曲线网格有限差分方法模拟门源MS6.9地震的强地面运动,再结合地表峰值速度和烈度间的关系,计算地震烈度,并在此基础上评估地震灾害分布特征,以期为门源地区的防震减灾提供科学依据。

    研究区范围如图1所示,可以看出,该区域的地貌特征变化大,地势西南高东北低,高程介于1.3—5.0 km之间。门源MS6.9地震发生后至2022年1月20日,该地区已发生MS≥4.0余震23次,其中MS≥5.0余震2次。

    图  1  研究区及周边的地质概况和2022年1月8—20日震源区MS≥3.0 地震分布
    Figure  1.  Geological overview of the study area and its surrounding regions,spatial distribution of MS≥3.0 earthquakes in source zone during the period of 8 to 20 January,2022

    采用曲线网格有限差分方法(Zhang,Chen,2006Zhang et al,2012)对门源MS6.9地震的强地面运动进行模拟。计算中需要设置描述地形起伏的网格模型、反映地下物质属性的介质模型,以及表示地震破裂过程的震源模型。

    地形选取GTOPO30地形数据,其水平分辨率大约为1 km。整个计算区域尺度为350 km×220 km,深度为60 km。将研究区域离散成700×440×120个网格,垂直方向采用等间距排列,单位网格为边长500 m的立方体。

    考虑到面波对纵波速度的灵敏度和起伏地形的影响,Han等(2022)提出一种改进的体波和面波数据联合反演方法获得中国大陆地壳和上地幔水平分辨率为0.5°的速度结构(USTClitho2.0模型)。该模型对于青藏高原地块内体波射线覆盖相对稀疏的区域,加入面波频散数据可更好地提高纵波速度和横波速度的准确度,因此本文以USTClitho2.0模型为基础建立研究区域的网格化横波速度和纵波速度模型。每个网格的东向、北向和垂直方向的长度分别为43.75 ,55 和5 km,同时依据Brocher (2005)提出的密度和纵波速度的经验关系确定各网格的密度。模拟采用的横波速度结构如图2所示,可以看出,2—12 km深度存在高速层,沿北东方向地壳厚度逐渐减薄。虽然青海湖处于研究区域内(图1),但是由于其位于模拟计算区域的边缘,且水深较浅,因此在建立介质模型时忽略其影响。

    图  2  横波速度结构
    Figure  2.  S-wave velocity structure

    张勇反演了该地震的震源破裂过程,结果显示断层滑动出露地表,走向为103°,倾角为88°,滑动角为−6°,共有31×11=341个子断层,子断层的空间分辨率为2 km×2 km,采样点为80个,每间隔0.25 s给出一个滑动速率,破裂过程持续时间约20 s,最大滑动量为1.8 m。基于这一结果,本文设置了相应的震源模型,如图3所示。

    图  3  本文所用的门源MS6.9地震震源模型
    Figure  3.  Source model of Menyuan MS6.9 earthquake used in this study

    强地面运动模拟计算的时间步长为0.01 s,总步数为1万步,模拟时长共100 s,使用640个计算核心进行计算。门源地震x分量的模拟速度场快照如图4所示,可见:地震的主要能量由位于震中附近下方的位错产生,且以水平走向错动为主,因此在断层垂向上产生了能量较强的S波;大约第2.36 s时,地震波到达地表,在初 始破裂时刻,速度的最大值集中在断层破裂的前锋上;随着远离发震断层,地震波场能量逐渐减小。

    图  4  门源MS6.9地震x分量粒子速度波场快照
    Figure  4.  Wavefield snapshots of the x component particle velocity of Menyuan MS6.9 earthquake

    通过强地面运动模拟得到各网格点xyz三个方向不同时刻的速度,然后对三个方向的速度分量求矢量和获得各网格点的运动速度随时间的变化,根据各网格点的速度最大值确定研究区域的地表峰值速度(PGV)分布,并结合国家市场监督管理总局和国家标准化管理委员会(2021)给出的PGV与烈度之间的关系得到对应的地震烈度,如图5所示,结果表明:沿平行断层走向方向的地震动衰减明显小于垂直断层走向方向;地震的最大烈度为Ⅷ度(PGV=37.63 cm/s),位于震源破裂起始点附近区域;Ⅷ度区主要涉及门源县、祁连县和肃南县的部分区域;Ⅶ度区主要涉及大通县、永昌县、民乐县等部分区域。中国地震局(2022)野外调查的烈度分布显示等震线长轴呈WNW走向,同理论模拟显示的高烈度区主要沿WNW方向延伸的结果一致。理论烈度分布与中国地震局工程力学研究所强震动观测组(2022)给出的仪器烈度分布(图6)较为接近,即高烈度区主要沿断层走向展布,且断层南侧的地震烈度大于北侧。受模型分辨率和计算成本的限制,本文模拟的地震波场的最高有效频率为0.4 Hz (2.5 s),缺少高频成分,因此获得的烈度较强震仪和烈度仪观测的结果偏低,但相较于使用低分辨率介质模型的模拟结果(徐剑侠等,2015),地震动模拟的最高频率得到了一定的提升。

    图  5  门源MS6.9地震烈度分布图
    Figure  5.  The simulated intensity of Menyuan MS6.9 earthquake
    图  6  门源MS6.9地震仪器观测的烈度分布(引自中国地震局工程力学研究所强震动观测组,2022
    Figure  6.  Instrumental seismic intensity distribution of Menyuan MS6.9 earthquake (after Strong Motion Observation Group,Institute of Engineering Mechanics,China Earthquake Administration,2022

    地震灾害区域集中在发震断层附近,并向WNW方向和ESE方向延伸,这主要由两个原因造成:一方面,该地震为高倾角的走滑型地震,地震波能量主要沿走向方向传播,表现出强地面运动的方向性效应;另一方面,起伏地表对地震波传播具有重要影响(Zhang et al,2008),发震断层的WNW方向和ESE方向分布有托莱山、大通山、达坂山和冷龙岭等山脉(图1),属于山地地貌,因此该区域的地震动高值可能与山脊地区地震波多次反射有关。

    强地面运动模拟结果由地形数据、介质模型和震源模型共同决定,因此数据选择对结果的可靠性有较大影响,为使结果更为可信,本文参考美国加州综合地震破裂预测模型(Field et al,2014)中提出的“使用可获得最优解”原则对介质模型进行选择。常用的介质模型包括CRUST1.0模型(Laske et al,2012)和CRUST2.0模型(Bassin et al,2000),二者均基于水平层状介质的假设,水平分辨率分别为1.0°和2.0°,而Han等(2022)提出的USTClitho2.0模型的水平分辨率更高,因此研究中选择USTClitho2.0模型作为介质模型。本文基于门源地震震源区附近的地形数据、介质模型和震源模型,使用曲线网格有限差分方法计算了该地震的近场地震波传播过程,得到了理论的速度场快照和地震烈度分布。研究结果表明:总体上垂直断层走向方向的地震动衰减大于平行断层走向方向的地震动衰减,震中最大烈度为Ⅷ度;模拟得到的理论烈度同野外调查的地震烈度分布基本一致。受强地面运动方向性效应和起伏地表的影响,地震灾害主要沿断层的WNW方向和ESE方向分布。由于地震发生区域主要以山地地貌为主,该地震的发生造成了局部边坡崩塌、滚石和冻土开裂以及兰新高铁大桥桥面受损等次生灾害(颉满斌,2022)。考虑到研究区域仍有发生强震的危险(许英才等,2022),今后的防震减灾工作中有必要加强地表起伏剧烈区域特别是山脊地貌的震害防御工作。

    北京大学张勇教授为本文提供了震源破裂过程的初步结果,中国科学技术大学张海江教授为本文提供了三维速度结构,中国地震局工程力学研究所马强研究员为本文提供了仪器观测的地震烈度分布图,中国地震局地震预测研究所徐岳仁研究员与作者就青藏高原东北缘的地质概况进行了讨论,审稿专家为本文提出了宝贵意见,作者在此一并表示感谢。

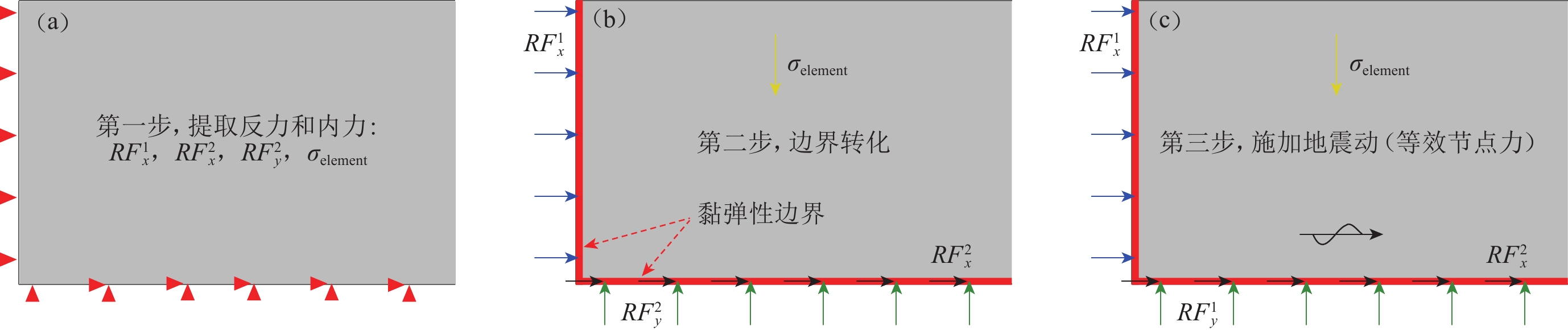

  • 图  1   静动力边界转换方法示意图

    (a) 地应力平衡;(b) 静动力边界转化;(c) 施加地震荷载

    Figure  1.   Schematic diagram of static-dynamic boundary switch

    (a) In-situ stress balance;(b) Switching between static and dynamic boundary;(c) Application of earthquake loading

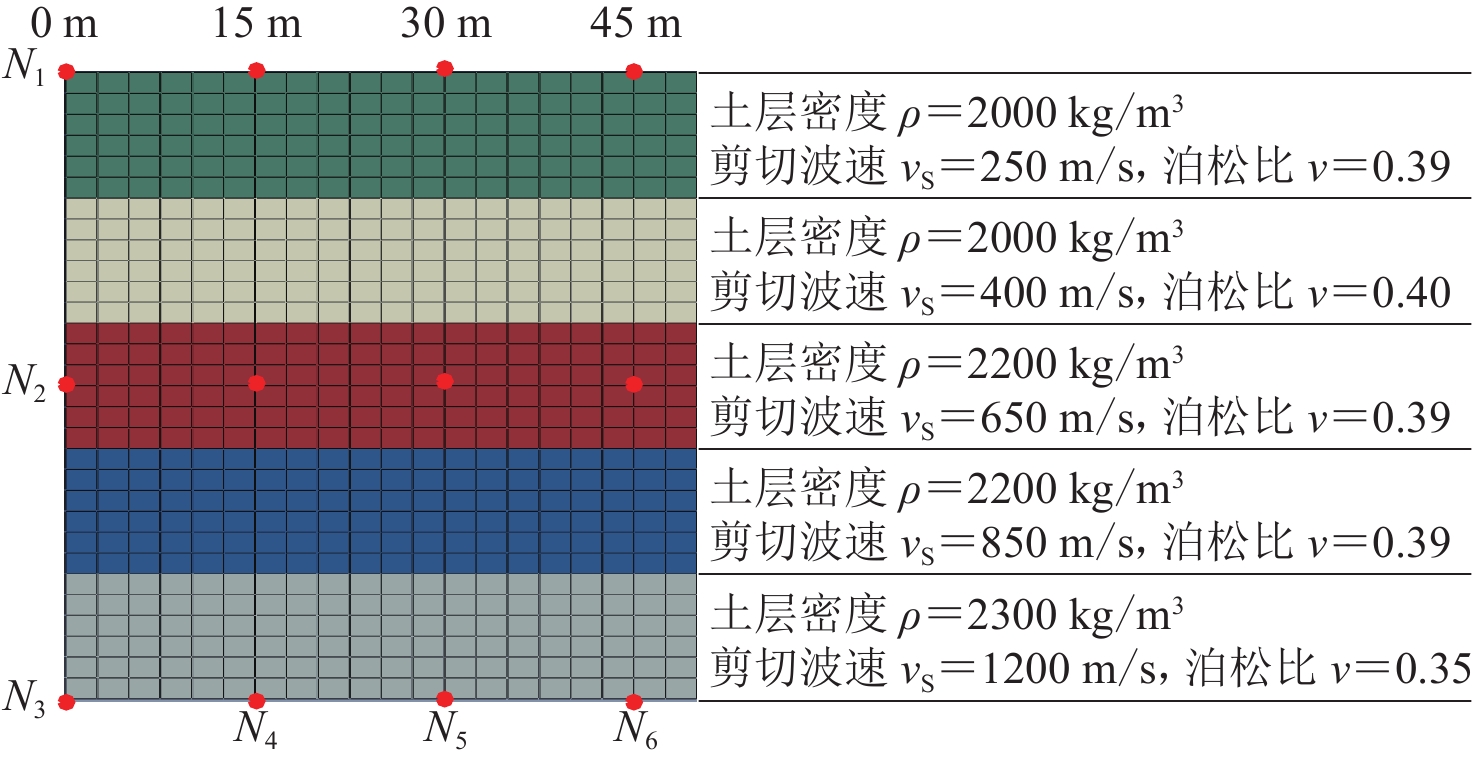

    图  2   二维成层半空间模型

    Figure  2.   Two-dimensional layered half-space model

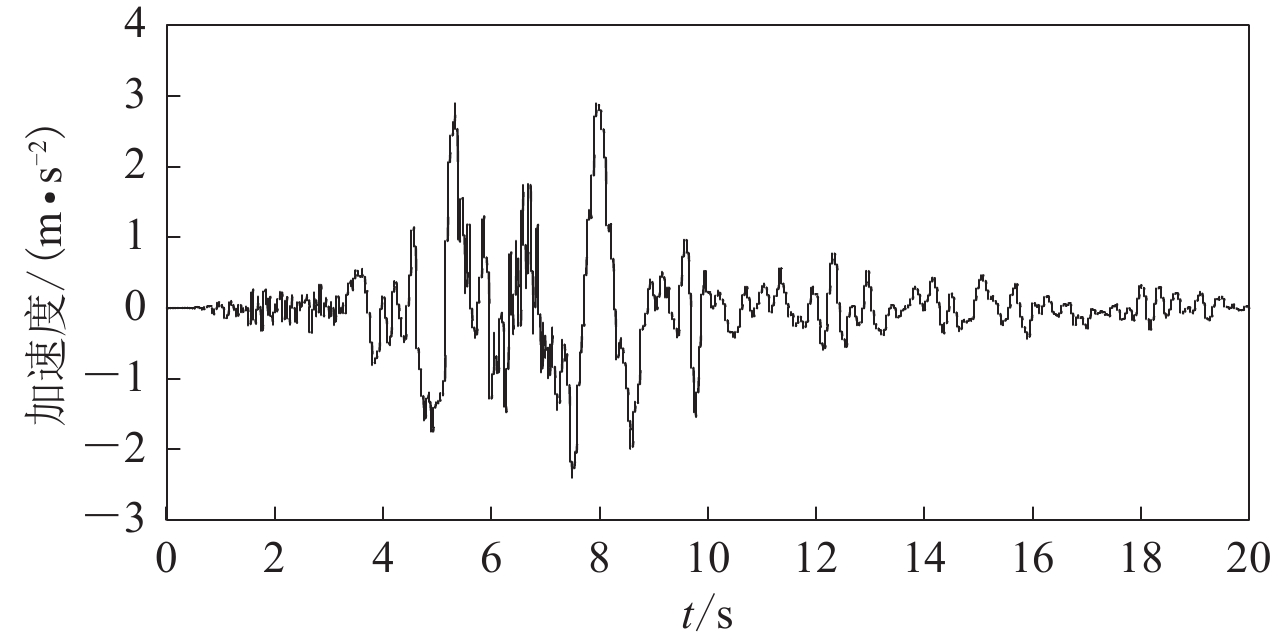

    图  3   日本神户地震南北分量加速度时程

    Figure  3.   Acceleration time history of the north and south components of the Kobe earthquake

    图  4   自由场地震反应计算结果

    (a) 100 m×50 m模型峰值加速度;(b) 100 m×50 m模型最大相对位移;(c) 200 m×100 m模型峰值加速度;(d) 200 m×100 m模型最大相对位移;(e) 随深度变化的加速度、位移时程误差

    Figure  4.   Seismic dynamic response of free field

    (a) Maximum acceleration for 100 m×50 m model;(b) Maximum relative displacement for 100 m×50 m model;(c) Maximum acceleration for 200 m×100 m model;(d) Maximum relative displacement for 200 m×100 m model;(e) Acceleration and displacement time-history errors with varying depths

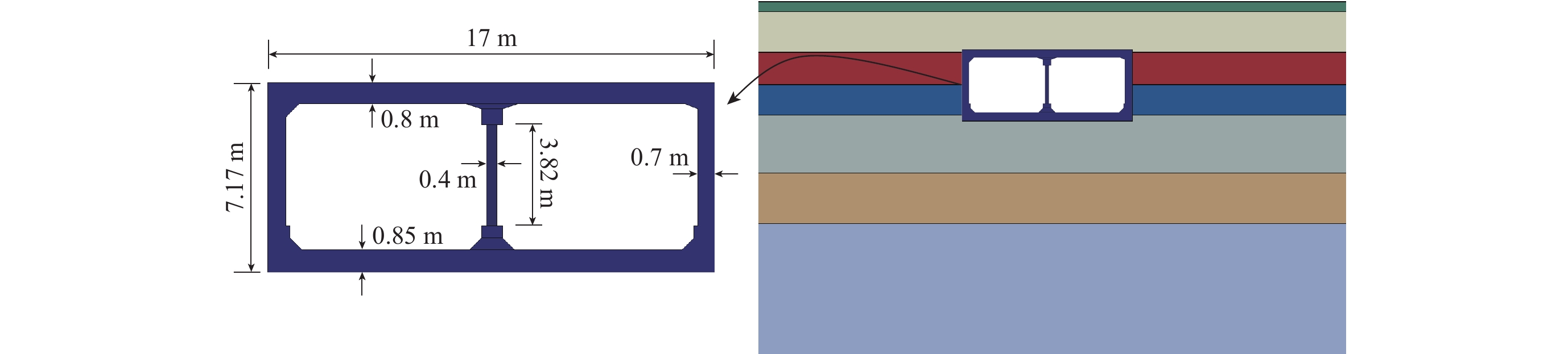

    图  5   大开地铁车站有限元模型

    Figure  5.   Finite element model of Daikai subway station

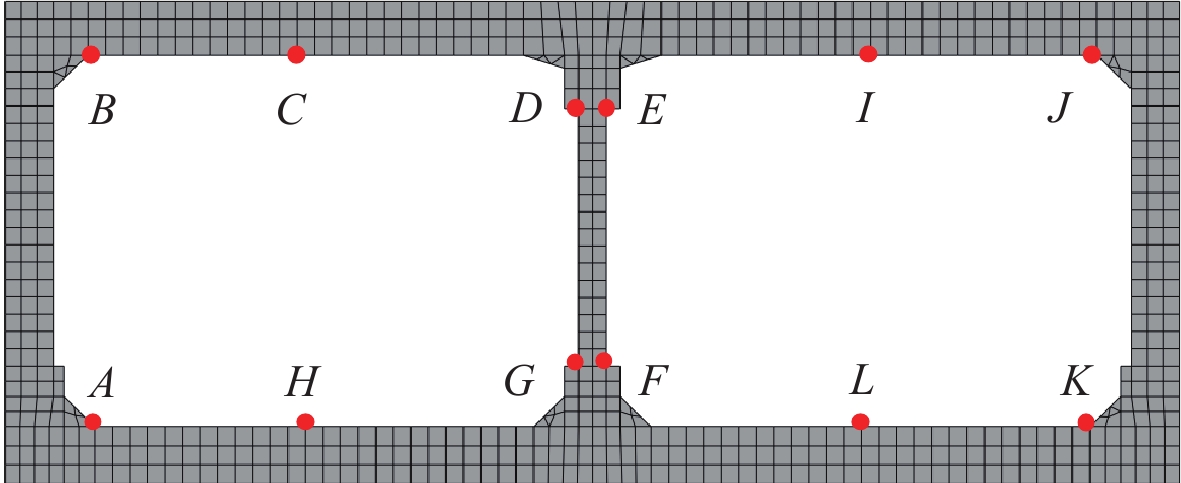

    图  6   车站重点位置监测点

    Figure  6.   Monitoring points in important position of subway station

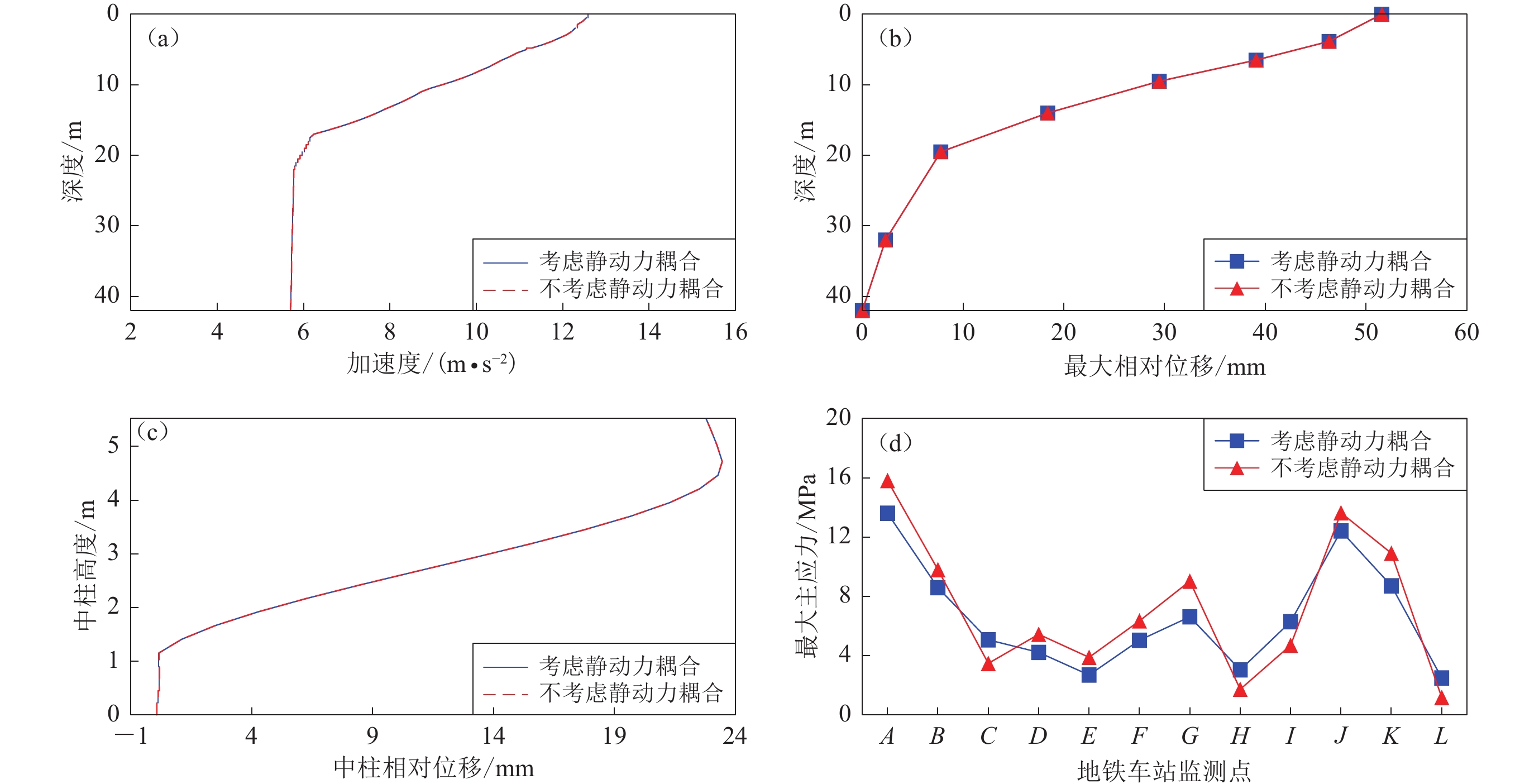

    图  7   带地下结构的成层场地地震动力反应计算结果

    (a) 场地土PGA;(b) 场地土最大相对位移;(c) 车站中柱最大相对位移;(d) 车站结构重要部位最大主应力

    Figure  7.   Earthquake dynamic response of underground structure in the layered site

    (a) Maximum acceleration of the site;(b) Maximum relative displacement of the site;(c) Maximum relative displacement of the central column;(d) Maximum principal stress at points in the station

    图  8   带地下结构的成层场地左边界及中部节点水平向的加速度时程(左)和位移时程(右)

    (a) 左边界顶部节点;(b) 地表中部节点;(c) 左边界底部节点;(d) 底边界中部节点

    Figure  8.   Horizontal acceleration (left) and displacement (right) time history of nodes at the left boundary and the vertical middle of underground structure in the layered site

    (a) Node at the top of the left boundary;(b) Node at the centre of the surface;(c) Node at the bottom of the left boundary;(d) Node at the centre of the base

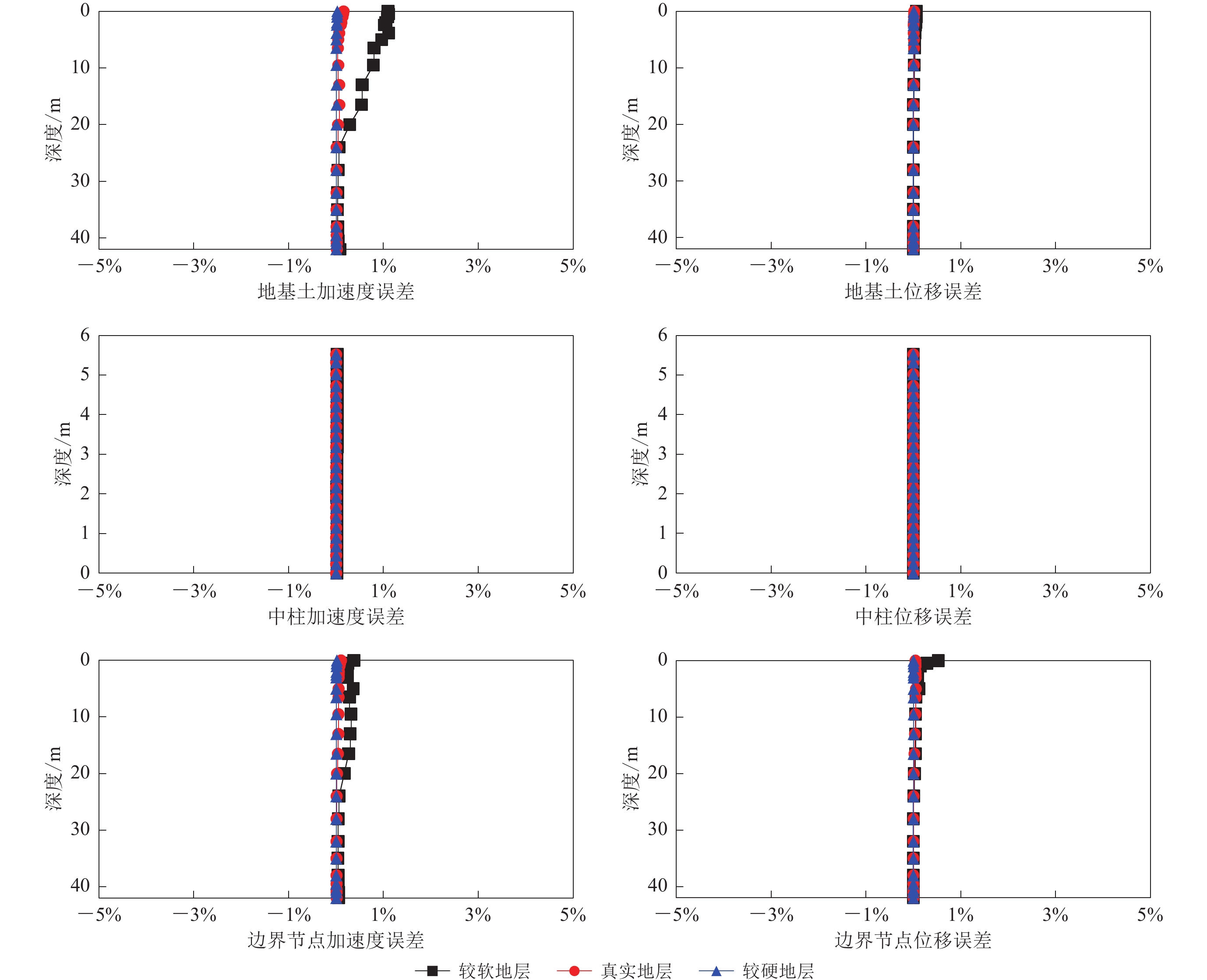

    图  9   带地下结构的成层场地地震动力反应时程结果误差

    Figure  9.   The error of the earthquake dynamic response of sub-structure in the layered site

    图  10   模型左边界(a)及中部(b)的顶部节点水平加速度时程

    Figure  10.   Acceleration time history of nodes at the top of the left boundary (a) and the vertical middle model (b)

    图  11   不合理静动力边界转换下模型不同位置节点水平加速度时程曲线

    Figure  11.   Horizontal acceleration time history of different nodes with unreasonable static-dynamic boundary switch method

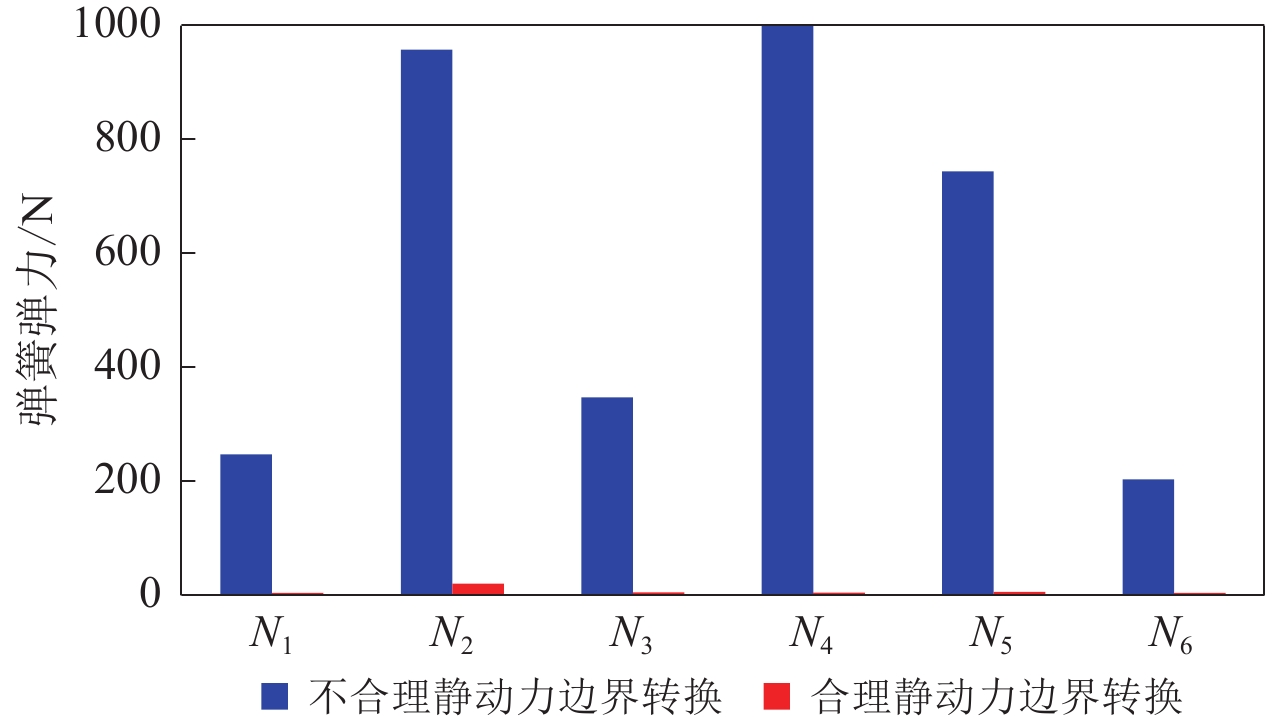

    图  12   多土层自由场模型黏弹性边界节点弹簧弹力受力情况

    Figure  12.   The magnitude of elastic fore for spring elements located at the viscous-spring boundary

    表  1   大开地铁车站数值模型场地条件参数

    Table  1   Mechanical parameters of the soil layers for the Dakai metro station

    土质模型各层厚度/m密度/(kg·m−3较软地层模型vS
    /(m·s−1
    真实地层模型vS
    /(m·s−1
    较硬地层模型vS
    /(m·s−1
    泊松比
    人工填土11 900801402900.333
    全新世砂土41 900801402900.320
    全新世砂土31 9001101703200.320
    更新世黏土31 9001301903400.400
    更新世黏土61 9001802403900.300
    更新世砂土52 0002703304800.260
    基岩202 0001 0001 0001 0000.260
    下载: 导出CSV
