Anomalies of middle infrared brightness before 2008 Yutian MS7.3 and 2010 Yushu MS7.1 earthquakes
-
摘要: 以静止卫星中波红外亮温为数据源， 应用功率谱相对变化法对2008年新疆于田MS7.3和2010年青海玉树MS7.1地震进行了分析研究. 结果表明， 两次地震前均出现了不同程度的功率谱信息增强现象， 特征周期分别为64和13天； 两次地震前特征功率谱幅值达到近几年来的相对最大值或极值， 且功率谱幅值均在6倍以上； 两次地震前、 后功率谱幅值大于2倍的持续时间均为近80天， 异常极值时功率谱幅值大于6倍的范围面积分别达12万和4万平方千米. 上述结果与长波辐射通量和热红外亮温资料的研究结果基本一致， 可为将来实现多波段同时监测热辐射变化进行地震预测提供参考.Abstract: This paper use middle infrared brightness data from geostationary satellite to research the 2008 Yutian MS7.3 and the 2010 Yushu MS7.1 earthquakes by estimating relative variance rate of power spectrum. The results show that the power spectrum amplitude of middle infrared brightness increased at different degrees before the two earthquakes. The characteristic periods were about 64 days and 13 days respectively. Before the two earthquakes, characteristic power spectrum amplitudes reached relatively the maximum or extreme in recent years, which were over six times of their average. The duration of power spectrum amplitude over twice of average were 80 days. The extreme areas of power spectrum amplitude over six times of average reached about 120000 and 40000 square kilometers respectively. These results are basically consistent with the previous results from outgoing long-wave radiation and thermal infrared brightness temperature data, which can be used as reference for realizing multi-wave band monitoring of heat radiation so as to predict earthquake in the future.
-
-
![]()

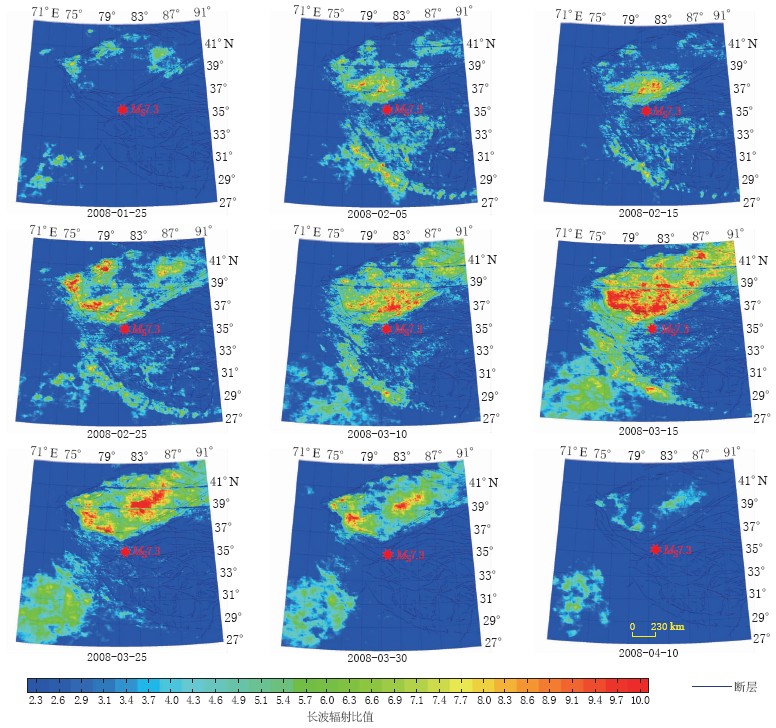

图 1 2008年于田MS7.3地震前、 后中波红外亮温相对功率谱异常时空演化
Figure 1. Abnormal spatio-temporal evolution of relative power spectrum of middle infrared brightness for the 2008 Yutian MS7.3 earthquake
![]()
图 2 2008年于田MS7.3地震异常区(77.8°—80.3°E， 37°—37.5°N) 小范围的相对功率谱平均值时序曲线
Figure 2. Time history plot of mean values of relative power spectrum in small regions (77.8°—80.3°E， 37°—37.5°N) for the 2008 Yutian MS7.3 earthquake
![]()
图 3 2010年玉树MS7.1地震前、 后中波红外功率谱异常时空演化
Figure 3. Abnormal spatio-temporal evolution of relative power spectrum of middle infrared brightness for the 2010 Yushu MS7.1 earthquake
-
陈梅花, 邓志辉, 马晓静, 陶京玲, 王煜. 2007. 断裂带内外温差法在震前红外异常研究中的应用[J]. 地震地质, 29(4): 863-872. Chen M H, Deng Z H, Ma X J, Tao J L, Wang Y. 2007. Application of the inside-outside temperature relation analysis method in study on satellite infrared anomalies prior to earthquake[J]. Seismology and Geology, 29(4): 863-872 (in Chinese).
崔承禹, 邓明德, 耿乃光. 1993. 在不同压力下岩石光谱辐射特性研究[J]. 科学通报, 38(6): 538-541. Cui C Y, Deng M D, Geng N G. 1993. Study on radiation of rock under different compress[J]. Chinese Science Bulletin, 38(6): 1377-1382 (in Chinese).
邓志辉, 王煜, 陈梅花, 唐方头, 楚全芝, 徐好民. 2003. 中国大陆几次强地震活动的卫星红外异常分析[J]. 地震地质, 25(2): 327-337. . Deng Z H, Wang Y, Chen M H, Tang F T, Chu Q Z, Xu H M. 2003. Satellite infrared anomaly of several strong earthquakes in China Mainland[J]. Seismology and Geology, 25(2): 327-337 (in Chinese). .
耿乃光, 于萍, 邓明德, 崔承禹, 罗灼礼. 1998. 热红外震兆成因的模拟实验研究[J]. 地震, 18(1): 83-88. Geng N G, Yu P, Deng M D, Cui C Y, Luo Z L. 1998. The simulated experimental studies on cause of thermal infrared precursor of earthquakes[J]. Earthquake, 18(1): 83-88 (in Chinese). .
郭晓, 张元生, 钟美娇, 沈文荣, 魏从信. 2010. 提取地震热异常信息的功率谱相对变化法及震例分析[J]. 地球物理学报, 53(11): 2688-2695. Guo X, Zhang Y S, Zhong M J, Shen W R, Wei C X. 2010. Variation characteristics of OLR for the Wenchuan earthquake[J]. Chinese Journal of Geophysics, 53(11): 2688-2695 (in Chinese).
荆凤, 申旭辉, 康春丽, 孟庆岩, 熊攀. 2009. 中强地震前的长波辐射异常震例研究[J]. 地震, 29(4): 117-122. . Jing F, Shen X H, Kang C L, Meng Q Y, Xiong P. 2009. Anomalies of outgoing longwave radiation before some medium to large earthquakes[J]. Earthquake, 29(4): 117-122 (in Chinese).
荆凤, 申旭辉, 康春丽, 熊攀, 孙珂. 2012. 2010年新西兰M7.1地震前的长波辐射变化特征[J]. 地球科学进展, 27(9): 979-986. Jing F, Shen X H, Kang C L, Xiong P, Sun K. 2012. Variation of outgoing longwave radiation around the time of New Zealand earthquake M7.1, 2010[J]. Advances in Earth Science, 27(9): 979-986 (in Chinese). .
康春丽, 韩延本, 刘德富, 曹忠权. 2008. 强震前地气系统长波辐射(OLR)异常的成因[J]. 地球物理学进展, 23(6): 1703-1708. Kang C L, Han Y B, Liu D F, Cao Z Q. 2008. The OLR anomaly and mechanism before Tibet earthquake (M6.9)[J]. Progress in Geophysics, 23(6): 1703-1708 (in Chinese). .
康春丽, 刘德富, 荆凤, 熊攀, 曹忠权. 2011. 大地震红外辐射异常信息时空特征分析[J]. 地球物理学进展, 26(6): 1897-1905. Kang C L, Liu D F, Jing F, Xiong P, Cao Z Q. 2011. Study on the indication of infrared radiation prior to impending strong earthquakes[J]. Progress in Geophysics, 26(6): 1897-1905 (in Chinese). .
刘德富, 彭克银, 刘维贺, 黎令仪, 候建盛. 1999. 地震有"热征兆"[J]. 地震学报, 21(6): 710-715. . Liu D F, Peng K Y, Liu W H, Li L Y, Hou J S. 1999. Thermal omens before earthquake[J]. Acta Seismologica Sinica, 21(6): 710-715 (in Chinese).
刘德富. 2000. 台湾集集强震前的卫星遥感长波辐射场变异分析[J]. 地球信息科学, 2(1): 33-36. . Liu D F. 2000. Abnormal detection on satellite remote sensing OLR before Chichi earthquakes[J]. Geo-Information Science, 2(1): 33-36 (in Chinese).
马瑾, 陈顺云, 刘培洵, 汪一鹏, 刘力强. 2006. 用卫星热红外信息研究关联断层活动的时空变化: 以南北地震构造带为例[J]. 地球物理学报, 49(3): 816-826. Ma J, Chen S Y, Liu P X, Wang Y P, Liu L Q. 2006. Temporal-spatial variations of associated faulting inferred from satellite infrared information: A case study of N-S seismo-tectonic zone in China[J]. Chinese Journal of Geophysics, 49(3): 816-826 (in Chinese). .
强祖基, 徐秀登, 赁常恭. 1990. 卫星热红外异常: 临震前兆[J]. 科学通报, 35(17): 1324-1327. Qiang Z J, Xu X D, Lin C G. 1990. Satellite infrared thermo-anomaly: Earthquake imminent precursor[J]. Chinese Science Bulletin, 35(17): 1324-1327 (in Chinese).
强祖基, 孔令昌, 郭满红, 王弋平, 郑兰哲, 赁常恭, 赵勇. 1997. 卫星热红外增温机制的实验研究[J]. 地震学报, 19(2): 197-201. . Qiang Z J, Kong L C, Guo M H, Wang G P, Zheng L Z, Lin C G, Zhao Y. 1997. An experimental study on temperature increasing mechanism of satellitic thermo-infrared[J]. Acta Seismologica Sinica, 19(2): 197-201 (in Chinese).
强祖基, 赁常恭, 李玲芝, 徐旻, 戈风沙, 柳涛, 赵勇, 郭满红. 1998. 卫星热红外图像亮温异常: 短临震兆[J]. 中国科学: D辑, 28(6): 564-573. . Qiang Z J, Lin C G, Li L Z, Xu M, Ge F S, Liu T, Zhao Y, Guo M H. 1999. Satellitic thermal infrared brightness temperature anomaly image: Short-term and impending earthquake precursors[J]. Science in China: Series D, 28(6): 564-573 (in Chinese).
屈春燕, 单新建, 马瑾. 2006. 红河断裂高温条带的成因及其与地震活动性的关系探讨[J]. 地震学报, 28(1): 91-97. . Qu C Y, Shan X J, Ma J. 2006. Formation cause of thermal infrared high temperature belt along Honghe fault and its relation to earthquakes[J]. Acta Seismologica Sinica, 28(1): 91-97 (in Chinese).
屈春燕, 闫丽莉, 温少妍, 单新建. 2011. 首都圈地区卫星热红外亮温变化特征研究[J]. 地球科学进展, 26(2): 202-211. Qu C Y, Yan L L, Wen S Y, Shan X J. 2011. A study of variation characteristics of satellite thermal infrared brightness temperature in capital region[J]. Advances in Earth Science, 26(2): 202-211 (in Chinese). .
万永革, 沈正康, 盛书中, 徐晓枫. 2010. 2008年新疆于田7.3级地震对周围断层的影响及其正断层机制的区域构造解释[J]. 地球物理学报, 53(2): 280-289. Wan Y G, Shen Z K, Sheng S Z, Xu X F. 2010. The mechanical effects of the 2008 MS7.3 Yutian, Xinjiang earthquake on the neighboring faults and its tectonic origin of normal faulting mechanism[J]. Chinese Journal of Geophysics, 53(2): 280-289 (in Chinese).
吴立新, 唐春安, 钟声, 吴育华, 张后全, 谭志宏. 2006. 非连续断层破裂红外辐射与声发射、 应力场的对比研究[J]. 岩石力学与工程学报, 25(6): 1111-1117. Wu L X, Tang C A, Zhong S, Wu Y H, Zhang H Q, Tan Z H. 2006. Comparison of thermal infrared radiation from discontinuous jointed faults fracturing with its acoustic emission and stress field[J]. Chinese Journal of Rock Mechanics and Engineering, 25(6): 1111-1117 (in Chinese).
徐秀登, 徐向民, 马升灯, 骆高远. 1995. 临震大气增温异常成因的初步认识[J]. 地震学报, 17(1): 123-127. Xu X D, Xu X M, Ma S D, Luo G Y. 1995. Preliminary inquiry into the causes of anomaly increase of air temperature by an impending earthquake[J]. Acta Seismologica Sinica, 17(1): 123-127 (in Chinese).
张国宏, 屈春燕, 单新建, 张桂芳, 宋小刚, 汪荣江, 李振洪, 胡植庆. 2011. 2008年MS7.1于田地震InSAR同震形变场及其震源滑动反演[J]. 地球物理学报, 54(11): 2753-2760. Zhang G H, Qu C Y, Shan X J, Zhang G F, Song X G, Wang R J, Li Z H, Hu J C. 2011. The coseismic InSAR measurements of 2008 Yutian earthquake and its inversion for source parameters[J]. Chinese Journal of Geophysics, 54(11): 2753-2760 (in Chinese).
张元生, 沈文荣, 徐辉. 2002. 新青8.1级地震前卫星热红外异常[J]. 西北地震学报, 24(1): 1-4. . Zhang Y S, Shen W R, Xu H. 2002. Satellite thermal infrared anomaly before the Xinjiang-Qinghai border MS=8.1 earthquake[J]. Northwestern Seismological Journal, 24(1): 1-4 (in Chinese).
张元生, 郭晓, 钟美娇, 沈文荣, 李稳, 何斌. 2010. 汶川地震卫星热红外亮温变化[J]. 科学通报, 55(10): 904-910. Zhang Y S, Guo X, Zhong M J, Shen W R, Li W, He B. 2010. Wenchuan earthquake: Brightness temperature changes from satellite infrared information[J]. Chinese Science Bulletin, 55(10): 904-910 (in Chinese).
张元生, 郭晓, 魏从信, 沈文荣, 惠少兴. 2011. 日本9级和缅甸7.2级地震热辐射表现特征[J]. 地球物理学报, 54(10): 2575-2580. Zhang Y S, Guo X, Wei C X, Shen W R, Hui S X. 2011. The characteristics of seismic thermal radiation of Japan MS9.0 and Myanmar MS7.2 earthquake[J]. Chinese Journal of Geophysics, 54(10): 2575-2580 (in Chinese).
Gabrielov A, Zaliapin I, Newman W L, Keilis-borok V I. 2000. Colliding cascades model for earthquake prediction[J]. Geophys J Int, 143(2): 427-437.
Pulinets S A, Ouzounov D, Karelin A V, Boyarchuk K A, Pokhmelnykh L A. 2006. The physical nature of thermal anomalies observed before strong earthquakes[J]. Phys Chem Earth, 31(4): 143-153.
Saraf A K, Rawat V, Banerjee P, Choudhury S, Panda S K, Dasgupta S, Das J D. 2008. Satellite detection of earthquake thermal infrared precursors in Iran[J]. Nature Hazards, 47: 119-135.
Tronin A A, Hayakawa M, Molchanov O A. 2002. Thermal IR satellite data application for earthquake research in Japan and China[J]. J Geodyn, 33(4/5): 519-534.
