Analysis on the anomaly of water level in Kaiyuan well, Yunnan
-
摘要: 通过对开远井水位的分析， 发现水位与降水有一定的相关性. 当这种相关性消失后， 井孔附近300 km、 400 km和500 km内常有5级、 6级和6.5级以上地震发生. 2009年以来开远井水位出现了低值异常， 这段时期异常与降水不完全相关， 而井孔附近地区的GPS观测结果显示井孔处于构造活动的拉张区域. 综合分析认为开远水位这个时期的持续低值异常， 除有降水减少的因素外， 可能与井孔附近地区的拉张活动关系更为密切.Abstract: By analyzing observations of water level in Kaiyuan well, Yunnan, China, it is found that there exist some correlations between the water level in Kaiyuan well and the precipitation in its adjacent areas. After the disappearances of these correlations, there always are earthquakes greater than 5 (6 or 6.5) happened within a radius of 300 km (400 or 500 km) near the Kaiyuan well. The low-water level anomalies in Kaiyuan well, having been appearing since 2009, are not entirely relevant with precipitation in the same period. Comprehensive analysis results indicate that the persistent low-water level anomalies in Kaiyuan well in this period are correlated with recent regional extensional tectonic activity to a certain degree, deduced from GPS observations in 2009—2010, besides the precipitation reduction.
-
Keywords:
- water level in Kaiyuan well /
- anomaly analysis /
- tectonic activity
-
-
![]()

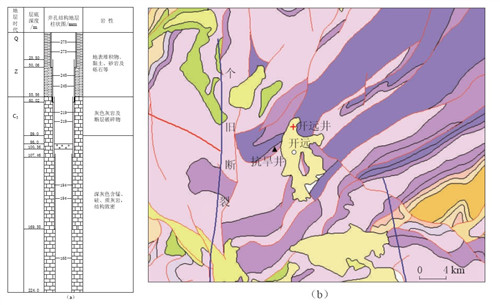

图 1 开远井孔柱状图(a)及附近地质构造图(b)
Figure 1. Columnar section for Kaiyuan well (a) and geological structure near Kaiyuan well (b)
![]()

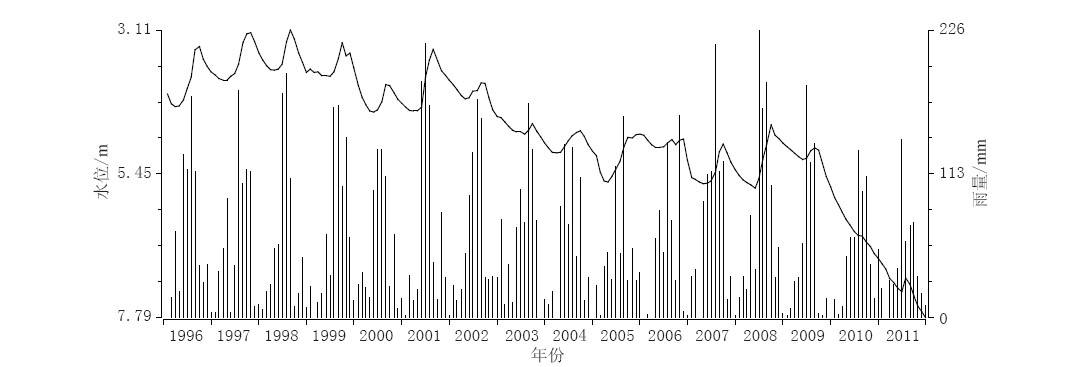

图 2 开远井水位月均值与月降水时间进程曲线
Figure 2. Monthly mean water levels and precipitations in Kaiyuan well
![]()

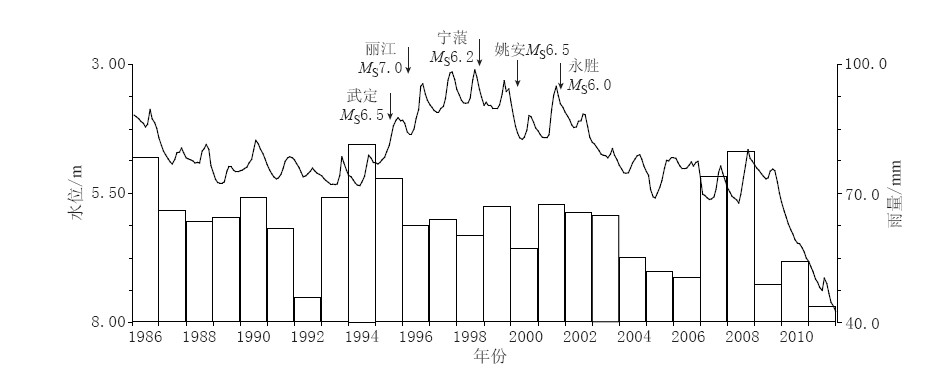

图 3 开远井水位月均值与年降水时间进程曲线
Figure 3. Monthly mean water levels and average annual precipitations in Kaiyuan well
![]()

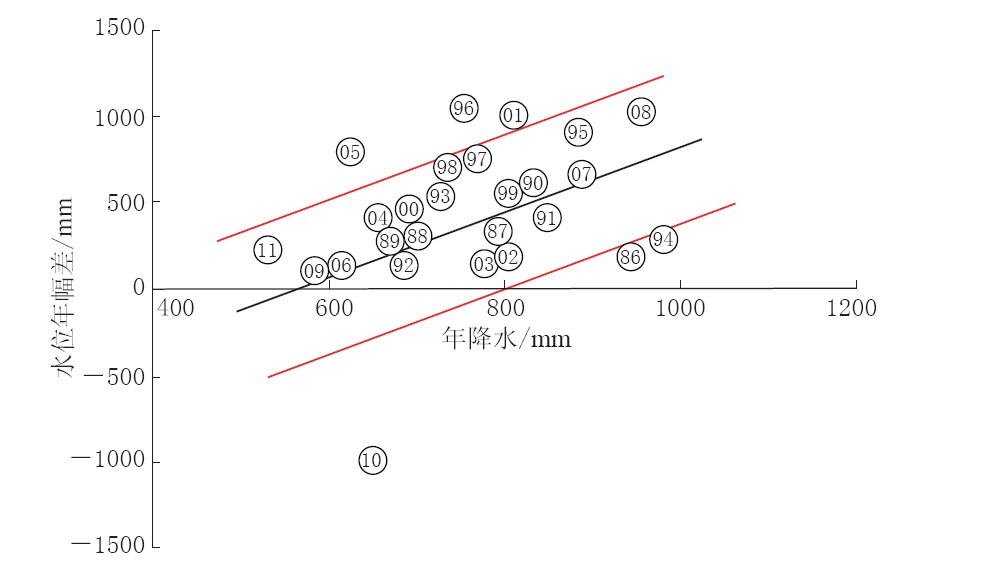

图 4 开远井降水与水位年幅差变化示意图
图中圆圈内数字表示年份的后两位数， 如“96” 表示1996年， “01”表示2001年. 以此类推
Figure 4. Comparison of precipitation with annual amplitude change of water level
The numbers in circles mean the last two digits of the years, for example， “96” means 1996， “01” means 2001, and so on
![]()

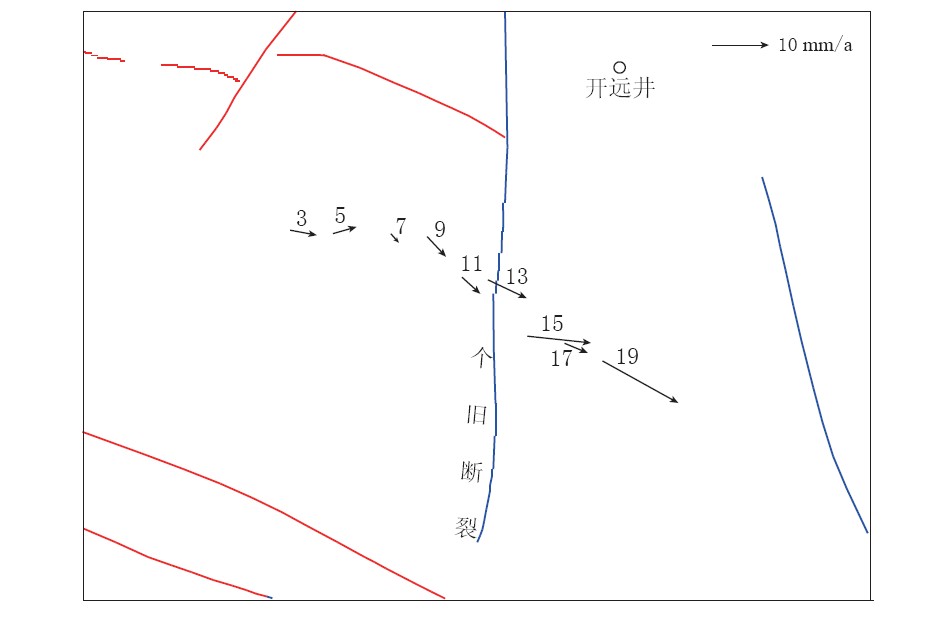

图 5 个旧断裂两侧GPS观测运动速率变化示意图
图中数字表示观测点位
Figure 5. Velocity at two sides of Gejiu fault obtained by GPS observation
Numbers in the figure denote theobservation point locations
表 1 开远井水位测值与降水量相关异常年份及其所对应的地震
Table 1 The earthquakes occurred in Yunnan at the years when abnormal water level was correlated with precipitation
下载: 导出CSV
-
陈立德, 郭大庆, 付虹, 毛可. 1996. 孕震系统宏观层次的单元体应力水平群体涨落模型[J]. 高原地震, 8 (2): 1-9. Chen L D, Guo D Q, Fu H, Mao K. 1996. Swarm fluctuation model of unit stress level from macro -layer of seismogenic system[J]. Plateau Earthquake Research, 8 (2): 1-9 (in Chinese).
陈立德, 付虹. 2011. 汶川8.0级地震前兆异常对比研究[J]. 内陆地震, 24 (4): 289-297. Chen L D, Fu H. 2011. The contrast study of Wenchuan M8.0 earthquake precursor anomalies[J]. Inland Earthquake, 24 (4): 289-297 (in Chinese).
陈运泰. 2005. 地震预报战略研究会上的发言[J]. 国际地震动态, (5): 34. Chen Y T. 2005. Speech on the strategy seminar of earthquake prediction[J]. Recent Developments in World Seismology, (5): 34 (in Chinese).
付虹, 陈立德, 罗平, 杨杰英, 张立, 刘翔, 李永强, 刘仲全, 沈斌, 王世芹. 1997. 1995年7月12日云南孟连中缅边界7.3级地震中短临预报及前兆异常特征[J]. 地震研究, 20 (4): 354-356. Fu H, Chen L D, Luo P, Yang J Y, Zhang L, Liu X, Li Y Q, Liu Z Q, Shen B, Wang S Q. 1997. Medium-short-impending prediction and precursory anomalous characteristics on earthquake of M7.3 on July 12, 1995 in border area between China Yunnan's Menglian and Burma[J]. Journal of Seismological Research, 20 (4): 354-356 (in Chinese).
林辉, 顾宁杰, 林佳霓. 2011. 云南降水与M≥6地震关系初步分析[J]. 地震研究, 34 (4): 428-434. Lin H, Gu N J, Lin J N. 2011. Preliminary analysis of correlation between precipitation and M≥6 earthquakes in Yunnan[J]. Journal of Seismological Research, 34 (4): 428-434 (in Chinese).
刘耀炜, 陆明勇, 付虹, 黄辅琼, 李胜乐. 2010. 地下流体动态信息提取与强震预测技术研究[M]. 北京: 地震出版社: 39-40. Liu Y W, Lu M Y, Fu H, Huang F Q, Li S L. 2010. Dynamic Information Extraction and Strong Earthquake Prediction Technique Research of Groundwater[M]. Beijing: Seismological Press: 39-40 (in Chinese).
马宗晋, 傅征祥, 张郢珍, 汪成民, 张国民, 刘德富. 1982. 中国九大地震[M]. 北京: 地震出版社: 98-102. Ma Z J, Fu Z X, Zhang Y Z, Wang C M, Zhang G M, Liu D F. 1982. Nine Big Earthquakes in China[M]. Beijing: Seismological Press: 98-102 (in Chinese).
万登堡, 王家彬, 刘国寿. 1994. 列车荷载作用对某些前兆观测的影响[J]. 地震, 33 (3): 91-94. Wang D B, Wang J B, Liu G S. 1994. Influence of the train's loading on some precursory observation[J]. Earthquake, 33 (3): 91-94.
汪成民, 车用太, 万迪堃, 董守义. 1988. 地下水微动态研究[M]. 北京: 地震出版社: 3-4. Wang C M, Chen Y T, Wang D K, Dong S Y. 1988. Research of Groundwater Micro-Behavior[M]. Beijing: Seismological Press: 3-4 (in Chinese).
中国地震局. 2004. GB/T地震台站观测环境技术要求[S]. 北京: 中国标准出版社: 61-62. China Earthquake Administration. 2004. Technical Requirement for Observation Environment to GB/T Seismic Stations[S]. Beijing: Standards Press of China: 61-62 (in Chinese).
