Composition and amplitude-frequency characteristics of ground motion acceleration based on fast Fourier transform analysis
-
摘要: 根据2008年汶川MS8.0地震广元曾家台(GYZJ)的强震记录，运用Matlab软件对东西向55—75 s的加速度时程进行快速傅里叶变换，得到有限复傅里叶系数，从而将离散的加速度记录转化为加速度随时间变化的函数表达式. 该表达式中包含了50组不同频率的正弦波和余弦波，由此确定了地震波加速度的主要构成. 经回归分析可知, 函数计算值与原始记录的相关系数R为0.9，拟合程度良好； 利用SeismoSignal软件对地震波加速度时程进行谱分析，结果表明在原来的波中频率约为2.8 Hz的谐振分量振幅最大且0—10 Hz这一频段的波最为丰富. 这一结果与函数表达式中频率与振幅的分布基本吻合, 为深入研究汶川地震的动力特性及其对山体动力效应的分析提供了重要的理论依据，具有广阔的应用前景.Abstract: This paper analyzed the strong ground motion records of the 2008 Wenchuan MS8.0 earthquake at the station GYZJ, and used Matlab software to carry on the fast Fourier transform on the acceleration records of E--W component in 55—75 s, and then obtained a function expression of the acceleration variation with time. The expression contains 50 groups of sine and cosine waves with different frequencies, which are the main composition of the seismic wave. A correlation coefficient of 0.9 deduced from regression analysis shows well fitting between the calculated values and observed records. In addition, we used the SeismoSignal software to analyze the spectrum of the ground motion acceleration. Our results show that the harmonic component with frequency of 2.8 Hz in the original wave has the maximum amplitude and a dominant range of seismic waves has a frequency band of 0—10 Hz. These results generally agree well with the frequency and amplitude distribution of the functional expression. This paper provides an important theoretical basis for the research of wave characteristics and the analysis on the dynamic effect of slope in Wenchuan earthquake.
-
-
![]()
图 1 地震台站分布与2008年汶川MS8.0地震地质灾害区划的对应关系(据王秀英等 (2010)修改)
Figure 1. Distribution of ground motion observation stations and their relationship with zonation map of geologic disasters induced by the 2008 Wenchuan MS8.0 earthquake (revised after Wang et al,2010)
![]()
图 2 广元曾家台(GYZJ)记录到的汶川地震未校正加速度时程(东西向)
Figure 2. Uncorrected acceleration time history of Wenchuan earthquake at GYZJ station (EW component)
![]()

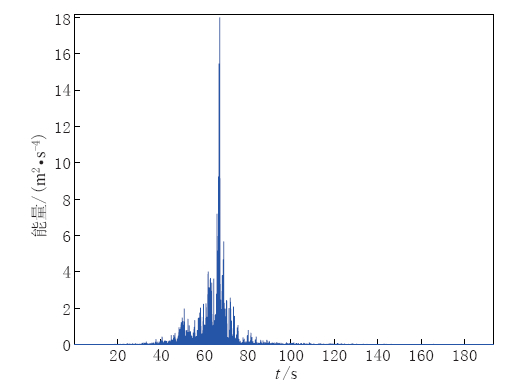

图 3 广元曾家台接收到的汶川地震加速度能量在时域上的分布图
Figure 3. Distribution characteristics of acceleration energy of Wenchuan earthquake at GYZJ station in the time domain
![]()
图 4 广元曾家台记录的55—75 s时段汶川地震东西向加速度时程
Figure 4. A section of acceleration time history of Wenchuan earthquake at GYZJ station (EW component) in the time period of 55-75 s
![]()
图 5 广元曾家台在截取时段上的原始加速度时程与拟合函数曲线的对比图
Figure 5. Comparison of uncorrected acceleration observation curve (bule) and fitted function curve (red) recorded at GYZJ station in the time period 55-75 s
![]()

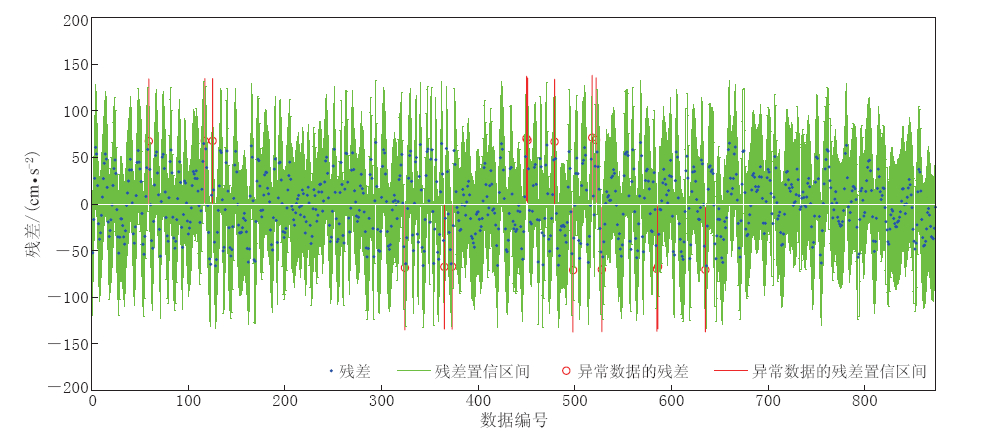

图 6 广元曾家台记录的原始加速度值与拟合函数值的残差分布图
Figure 6. Distribution of residuals between original acceleration values recorded at GYZJ station and its fitted function values
![]()

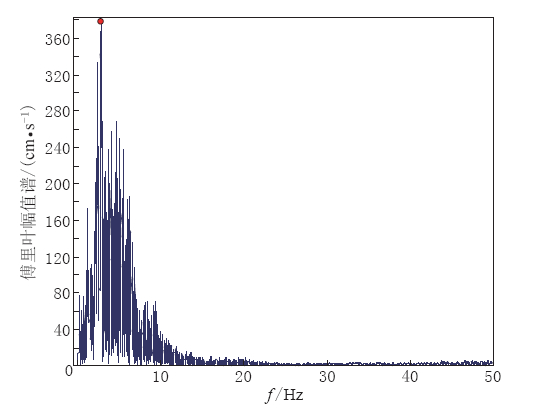

图 7 广元曾家台加速度记录的傅里叶幅值谱
Figure 7. Fourier amplitude spectrum of acceleration records at GYZJ station
![]()

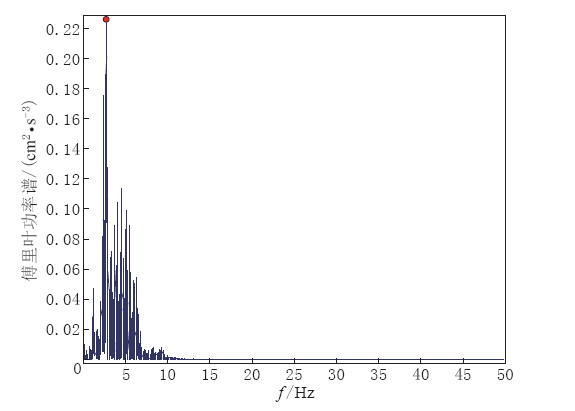

图 8 广元曾家台加速度记录的傅里叶功率谱
Figure 8. Fourier power spectrum of acceleration records at GYZJ station
表 1 广元曾家台加速度记录的有限复傅里叶系数
Table 1 The finite complex Fourier coefficients of acceleration records at GYZJ station
下载: 导出CSV
-
大崎顺彦(著). 1980. 吕敏申, 谢礼立(译). 2008. 地震动的谱分析入门[M]. 北京: 地震出版社: 1-297. Osaki Y. 1980. Lü M S, Xie L L (trans). 2008. Introduction to Spectrum Analysis of Ground Motion [M]. Beijing: Seismological Press: 1-297 (in Chinese).
郭晓云. 2011. 汶川地震反应谱研究[D]. 哈尔滨: 中国地震局工程力学研究所: 1-135. 刘晓. 2010. 汶川地震区斜坡动力反应研究[D]. 武汉: 中国地质大学: 1-155. Liu X. 2010. Research on Dynamic Response of Slope in Wenchuan Earthquake Area [D]. Wuhan: China University of Geosciences: 1-155 (in Chinese).
罗永红. 2011. 地震作用下复杂斜坡响应规律研究[D]. 成都: 成都理工大学: 1-211. Luo Y H. 2011. Study on Complex Slopes Response Law Under Earthquake Action[D]. Chengdu: Chengdu University of Technology: 1-211 (in Chinese).
祁生文. 2006. 单面边坡的两种动力反应形式及其临界高度[J]. 地球物理学报, 49(2): 518-523. Qi S W. 2006. Two patterns of dynamic responses of single-free-surface slopes and their threshold height[J]. Chinese Journal of Geophysics, 49(2): 518-523 (in Chinese).
王秀英, 聂高众, 王登伟. 2009. 利用强震记录分析汶川地震诱发滑坡[J]. 岩石力学与工程学报, 28(11): 2369-2376. Wang X Y, Nie G Z, Wang D W. 2009. Analysis of landslide induced by Wenchuan earthquake by strong motion records[J]. Chinese Journal of Rock Mechanics and Engineering, 28(11): 2369-2376 (in Chinese).
王秀英, 聂高众, 王登伟. 2010. 汶川地震诱发滑坡与地震动峰值加速度对应关系研究[J]. 岩石力学与工程学报, 29(1): 82-89. Wang X Y, Nie G Z, Wang D W. 2010. Research on relationship between landslides and peak ground accelerations induced by Wenchuan earthquake[J]. Chinese Journal of Rock Mechanics and Engineering, 29(1): 82-89 (in Chinese).
谢俊举, 温增平, 高孟潭, 袁美巧, 何少林. 2011. 2008年汶川地震近断层地震动的非平稳特征[J]. 地球物理学报, 54(3): 728-736. 谢礼立, 周雍年. 1984. 一个新的地震动持续时间定义[J]. 地震工程与工程振动, 4(2): 27-35. Xie L L, Zhou Y N. 1984. A new definition of strong ground motion duration[J]. Journal of Earthquake Engineering and Engineering Vibration, 4(2): 27-35 (in Chinese).
于海英, 王栋, 杨永强, 解全才, 江汶乡, 周宝峰. 2009. 汶川8.0级地震强震动加速度记录的初步分析[J]. 地震工程与工程振动, 29(1): 1-13. Yu H Y, Wang D, Yang Y Q, Xie Q C, Jiang W X, Zhou B F. 2009. The preliminary analysis of strong ground motion records from the MS8.0 Wenchuan earthquake[J]. Journal of Earthquake Engineering and Engineering Vibration, 29(1): 1-13 (in Chinese).
张冬丽, 徐锡伟, 周正华, 于贵华. 2010. 汶川MS8.0级地震强震记录所揭示的地震断层特征分析[J]. 地学前缘, 17(5): 33-42. Zhang D L, Xu X W, Zhou Z H, Yu G H. 2010. The causative fault properties from strong-motion records of MS8.0 Wenchuan earthquake[J]. Earth Science Frontiers, 17(5): 33-42 (in Chinese).
中国地震局震害防御司. 2008. 汶川8.0级地震未校正加速度记录[M]. 北京: 地震出版社: 1-302. 周荣军, 赖敏, 余桦, 龙承厚, 王世元, 亢川川, 梁明剑. 2010. 汶川MS8.0地震四川及邻区数字强震台网记录[J]. 岩石力学与工程学报, 29(9): 1850-1858. Zhou R J, Lai M, Yu H, Long C H, Wang S Y, Kang C C, Liang M J. 2010. Strong motion records of Wenchuan MS8.0 earthquake from digital strong earthquake networks in Sichuan and its neighbouring regions[J]. Chinese Journal of Rock Mechanics and Engineering, 29(9): 1850-1858 (in Chinese).
-
