Comparative study of different instrumental intensity algorithms for the earthquakes in Sichuan region
-
摘要: 强震观测资料包括强震动时程记录资料和宏观震害调查资料两大类， 前者是定量的微观数据， 后者则是定性的宏观指标. 本文明晰给出了微观仪器烈度与宏观仪器烈度、 微观考察烈度与宏观考察烈度的概念， 并在此基础上提出了只有在宏观仪器烈度与宏观考察烈度之间进行比较才具有实质性的意义；同时对国内外常见的仪器烈度算法进行了比较性研究， 得出了袁一凡仪器烈度算法可靠性更高的结论；最后以四川地区历年来重要震例的强震动记录为依据， 对修正的袁一凡仪器烈度算法的可靠性进行了比较应用. 结果表明， 对袁一凡仪器烈度算法修正与扩展的应用是可行的， 同时也验证了将微观仪器烈度与宏观考察烈度直接进行比较会存在较大的差距.Abstract: Strong motion observation data is classified into two categories， one is strong motion time history data, the other is seismic damage investigation data. The former is the microscopic quantitative data, and the latter is the macro-scopic qualitative indexes. Firstly we define the concept of microscopic instrumental intensity and macroscopic instrumental intensity, microscopic inspection intensity and macroscopic inspection intensity in the present paper. And then we propose it is significant to compare macroscopic instrumental intensity with macroscopic inspection intensity. Meanwhile we also conduct a comparative study about the instrumental intensity algorithms at home and abroad. The results indicate that Yuan’s instrumental intensity algorithm is more reliable. In addition, based on the strong motion records of Sichuan earthquakes, the modified Yuan’s algorithm is applied to calculate seismic intensity. The results show that it is feasible to revise and expand the Yuan’s instrumental intensity algorithm, and also prove that there exists large difference when the micro-scopic instrumental intensity is compared with macroscopic inspection intensity directly.
-
-
![]()

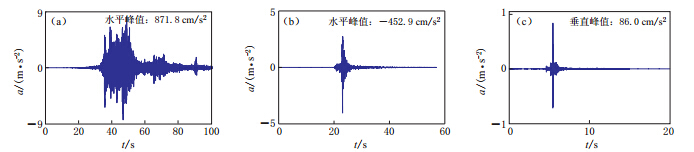

图 1 典型大震、 小震和近震的加速度时程(a)汶川MS8.0地震051MZQ台站水平合成记录;(b)炉霍MS5.3地震051LHT台站水平合成记录;(c)上海MS1.1地震白莲泾台站垂直向记录
Figure 1. Acceleration time histories for typical large，small and near earthquakes(a)Horizontal component synthetic record of Wenchuan MS8.0 earthquake at the station 051MZQ；(b)Horizontal component synthetic record of Luhuo MS5.3 earthquake at the station 051LHT；(c)Vertical component record of Shanghai MS1.1 earthquake at the station Bailianjing
![]()

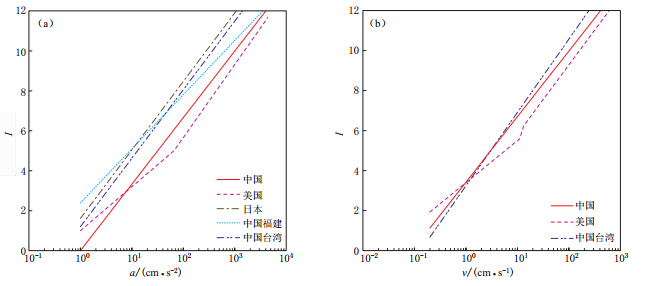

图 2 各国(地区)的地震烈度标准比较(a)由PGA或EPA计算的地震烈度;(b)由PGV或EPV计算的地震烈度
Figure 2. Comparison of seismic intensity st and ards for different countries(areas)(a)Seismic intensity calculated by PGA or EPA;(b)Seismic intensity calculated by PGV or EPV
![]()
图 3 汶川地震宏观仪器烈度(a)、 宏观考察烈度(b)及其与微观仪器烈度比较(c)
Figure 3. Macroscopic instrumental intensity map(a)，macroscopic inspection intensity map(b) and its comparison with microscopic instrumental intensity(c)of Wenchuan earthquake
![]()

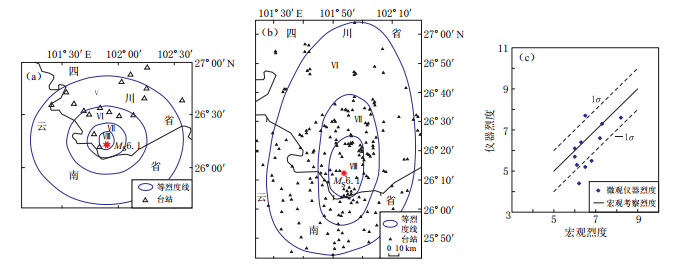

图 4 攀枝花地震宏观仪器烈度(a)、 宏观考察烈度(b)及其与微观仪器烈度比较(c)
Figure 4. Macroscopic instrumental intensity map(a)，macroscopic inspection intensity map(b) and its comparison with microscopic instrumental intensity(c)of Panzhihua earthquake
![]()

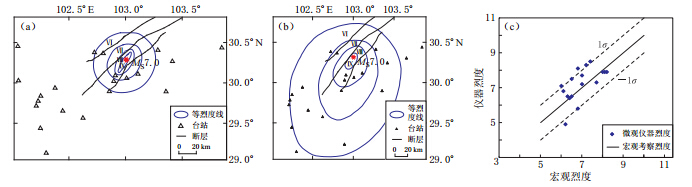

图 5 芦山地震宏观仪器烈度(a)、 宏观考察烈度(b)及其与微观仪器烈度比较(c)
Figure 5. Macroscopic instrumental intensity map(a)，macroscopic inspection intensity map(b) and its comparison with microscopic instrumental intensity(c)of Lushan earthquake
![]()

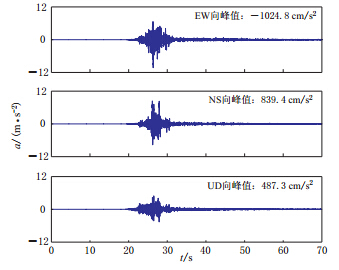

图 6 051BXD台站记录的未校正加速度时程
Figure 6. Uncorrected acceleration time histories recorded by the station 051BXD
![]()

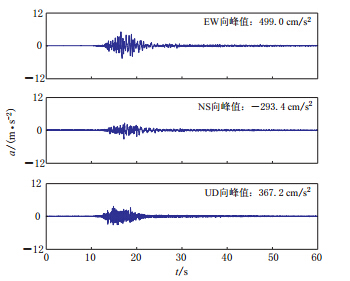

图 7 宝兴中学观测点记录的未校正加速度时程
Figure 7. Uncorrected acceleration time histories reco-rded by the Baoxing middle school observation point
![]()

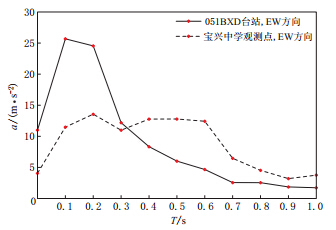

图 8 051BXD台站与宝兴中学观测点记录的反应谱比较
Figure 8. Uncorrected acceleration time histories reco-rded by the Baoxing middle school observation point
![]()
图 9 051BXD台站及其附近的震害示意图(温瑞智等，2013)① 6层框架剪力墙(1995年建)基本完好；② 6层框架剪力墙(1990年建)严重破坏；③ 6层框架剪力墙(1995年建)基本完好；④ 4层框架剪力墙(1995年建)基本完好；⑤ 051BXD台站观测室完好；⑥ 2层砌体结构(1970年建)严重破坏
Figure 9. UncorrectedDamage schematic diagram at the station 051BXD and its surrounding areas(after Wen et al，2013)① 6-storey frame-shear wall built in 1995 was intact； ② 6-storey frame-shear wall built in 1990 subjected to severe damage； ③ 6-storey frame-shear wall built in 1995 was intact； ④ 4-storey frame-shear wall built in 1995 was intact； ⑤ The strong motion observation station 051BXD was intact； ⑥ 2-storey masonry structure built in 1970 subjected to severe damage
表 1 汶川MS8.0地震微观仪器烈度与宏观考察烈度的比较
Table 1 Comparison of microscopic instrumental intensity with macroscopic inspection intensity for Wenchuan MS8.0 earthquake
下载: 导出CSV
表 2 攀枝花MS6.1地震微观仪器烈度与宏观考察烈度的比较
Table 2 Comparison of microscopic instrumental intensity with macroscopic inspection intensity for Panzhihua MS6.1 earthquake
下载: 导出CSV
表 3 芦山MS7.0地震微观仪器烈度与宏观考察烈度的比较
Table 3 Comparison of microscopic instrumental intensity with macroscopic inspection intensity for Lushan MS7.0 earthquake
下载: 导出CSV
表 4 芦山MS7.0地震051BXD台站及宝兴中学观测点所记录的未校正强震动参数
Table 4 Uncorrected strong motion parameters of Lushan MS7.0 earthquake recorded by the station 051BXD and Baoxing middle school observation point
下载: 导出CSV
-
胡聿贤. 2006. 地震工程学[M]. 第2版. 北京: 地震出版社: 3-10. Hu Y X. 2006. Earthquake Engineering[M]. 2nd ed. Beijing: Seismological Press: 3-10 (in Chinese).
李敏. 2010. 地震动加速度反应谱与地震烈度的关系研究[D]. 哈尔滨: 中国地震局工程力学研究所: 44-52. Li M. 2010. A Study on the Relationship Between Seismic Intensity and Spectral Accelerations of Strong Motion[D]. Harbin: Institute of Engineering Mechanics, China Earthquake Administration: 44-52 (in Chinese).
王玉石. 2010. 地震动强度及其特征分析[D]. 哈尔滨: 中国地震局工程力学研究所: 44-52. Wang Y S. 2010. Analyses of Strong Ground Motion Intensity and Its Characteristics[D]. Harbin: Institute of Engineering Mechanics, China Earthquake Administration: 44-52 (in Chinese).
袁一凡. 1998. 由地震动三要素确定地震动强度(烈度)的研究[R]. 哈尔滨: 中国地震局工程力学研究所: 1-42. Yuan Y F. 1998. Research on Seismic Intensity Calculation Method by Using the Three Elements of Ground Motion[R]. Harbin: Institute of Engineering Mechanics, China Earthquake Administration: 1-42 (in Chinese).
袁一凡, 田启文. 2012. 工程地震学[M]. 北京: 地震出版社: 1-9. Yuan Y F, Tian Q W. 2012. Engineering Seismology[M]. Beijing: Seismological Press: 1-9 (in Chinese).
中国地震局. 2013. 中国地震局发布四川省芦山“4·20”7.0级强烈地震烈度图[EB/OL]. [2013-04-25]. http://www.cea.gov.cn/publish/dizhenj/465/539/20130426185746117952058/index.html. China Earthquake Administration. 2013. The intensity map of Lushan MS7.0 earthquake in Sichuan Province on April 20, 2013 issued by China Earthquake Administration[EB/OL]. [2013-04-25]. http://www.cea.gov.cn/publish/dizhenj/465/539/20130426185746117952058/index.html.
中国地震信息网. 2008. 四川省攀枝花市仁和区、 凉山彝族自治州会理县交界6.1级地震烈度分布图[EB/OL]. [2008-09-25].http://www.csi.ac.cn/manage/html/4028861611c5c2ba0111c5c558b00001/_content/08_09/25/1222331919959.html. China Seismic Information. 2008. The intensity map of MS6.1 earthquake occurred at the border of Renhe, Panzhihua-Huili, Liangshan Yi autonomous prefecture, Sichuan Province[EB/OL]. [2008-09-25]. http://www.csi.ac.cn/manage/html/4028861611c5c2ba0111c5c558b00001/_content/08_09/25/1222331919959.html.
中华人民共和国国家质量监督检验检疫总局, 中国国家标准化管理委员会. 2009. 中国地震烈度表(GB/T 17742—2008)[S]. 北京: 中国标准出版社: 1-4. General Administration of Quality Supervision, Inspection and Quarantine of the People’s Republic of China, Standardization Administration of the People’s Republic of China. 2009. The Chinese Seismic Intensity Scale(GB/T 17742—2008)[S]. Beijing: China Standards Press: 1-4 (in Chinese).
Housner G W. 1952. Spectrum intensity of strong-motion earthquake[C]//Proceedings of the Symposium on Earthquake and Blast Effects on Structures. Oakland: Earthquake Engineering Research Institute: 20-36.
Wald D J, Worden B C, Quitoriano V, Pankow K L. 2006. ShakeMap Manual[M/OL]. [2006-06-19]. http://pubs.usgs.gov/tm/2005/12A01/.
