Identification and spatio-temporal characteristics of repeating earthquakes in Kepingtage fault zone
-
摘要: 根据互相关系数不小于0.8的波形互相关意义上重复地震的定义， 利用国家数字地震台网中的乌什和巴楚台记录的区域地震波形数据， 识别并研究了新疆柯坪塔格断裂带及其周缘的板内重复地震. 对所有相互距离不超过30 km的地震事件的垂直分量采用0.5—5.0 Hz带通滤波后进行波形互相关计算. 其中乌什台共识别出460例重复地震， 组成重复地震对和多重地震对共171组， 占总事件数的15.5%； 巴楚台共识别出822例重复地震， 组成重复地震对和多重地震对共298组， 占总事件数的21.2%. 对重复地震的分析表明， 台站分布的不同和波形事件记录质量的差异， 是造成两个台站识别出的“重复地震”数目和比例不同的原因. 对重复地震复发的时间间隔统计表明， 重复间隔从数分钟到数百天不等， 最长重复间隔达10年.Abstract: According to the definition of repeating earthquakes that the waveform cross-correlation coefficient is not less than 0.8, intraplate repeating earthquakes in and around Kepingtage fault zone, XinJiang, were identified and studied using waveform data recorded at WUS and BCH national digital seismic stations. Waveform cross-correlation analysis was carried out after 0.5-5.0 Hz bandpass-filtering on vertical components records from the events being less than 30 km away from each other. Altogether 460 repeating earthquakes were identified from WUS station, which comprised 171 doublets and multiplets, making up 15.5% of total events; 822 repeating earthquakes were identified from BCH station, which comprised 298 doublets and multiplets, making up 21.2% of total events. Our analysis of the repeating earthquakes show that the difference in the number and proportion of repeating earthquakes between the two stations is attributed to the difference in the distribution of stations and waveform record quality. Statistics show that the time interval between repeating earthquakes ranges from a few minutes to hundreds of days, the longest being 10 years.
-
-
![]()

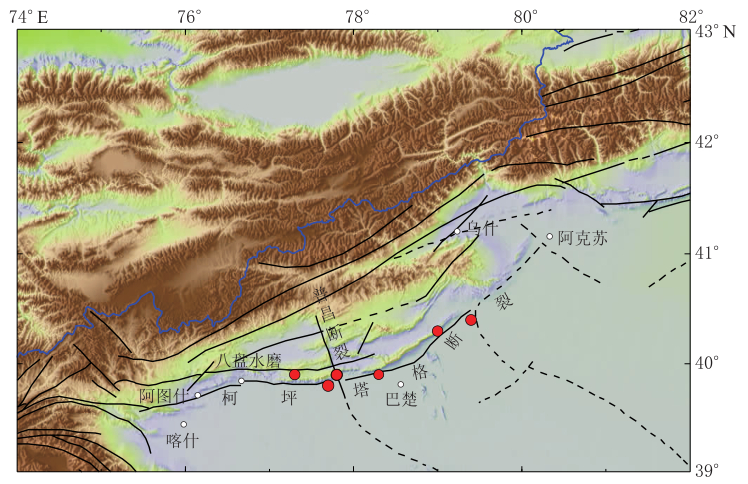

图 1 柯坪块体构造和柯坪塔格断裂1953年以来MS≥6.0强震震中分布图
红色实心圆表示MS≥6.0地震，黑色实线为活动构造，黑色虚线为推测的活动构造
Figure 1. Tectonic setting and distribution of MS≥6.0 earthquakes since 1953 in Keping region
Solid red circles mark MS≥6.0 earthquakes，solid black lines represent active tectonics and dashed black lines represent inferred active tectonics
![]()

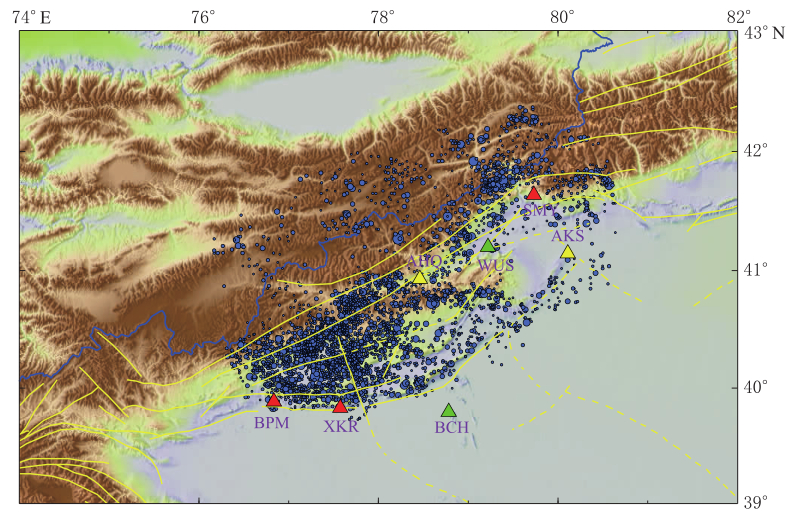

图 2 柯坪块体地震台站和2001—2011年2月以来地震分布
蓝色实心圆表示MS≥1.0地震，红色三角形表示2005年之后新建数字化台站，黄色三角形表示2006年之后进行数字化改造的台站，绿色三角形表示2000年之后开始有数字记录的台站
Figure 2. Distribution of seismic stations and earthquakes form 2001 to Feb. 2011，in Keping region
Solid blue circles mark MS≥1.0 earthquakes，red triangles represent digital stations built after 2005，yellow triangles represent stations after digital reconstruction in 2006 and green triangles denote the stations which began digital recording in 2000
![]()

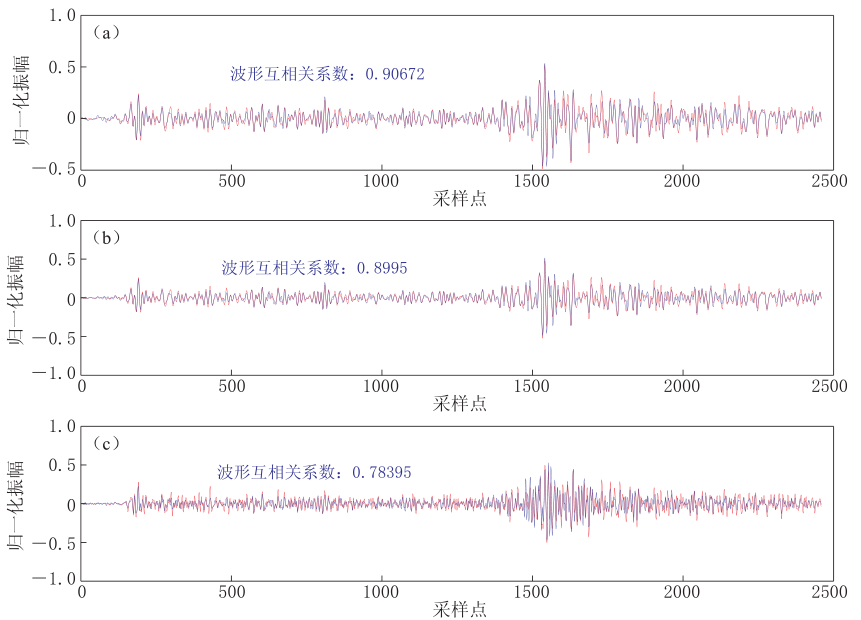

图 3 采用不同频率范围带通滤波计算波形互相关系数的示例蓝色和红色分别表示2005年3月1日MS2.1地震和2007年9月23日MS2.8地震的波形记录(a) 滤波范围0.5—5 Hz； (b) 滤波范围1—5 Hz； (c) 滤波范围1—10 Hz
Figure 3. An example of waveform cross-correlation coefficient computation using bandpass filtering with different frequency rangesBlue and red lines represent waveform records of the MS2.1 earthquake on March 1，2005，and the MS2.8 earthquake on Sep. 23，2007，respectively(a) 0.5—5 Hz; (b) 1—5 Hz; (c) 1—10 Hz
![]()

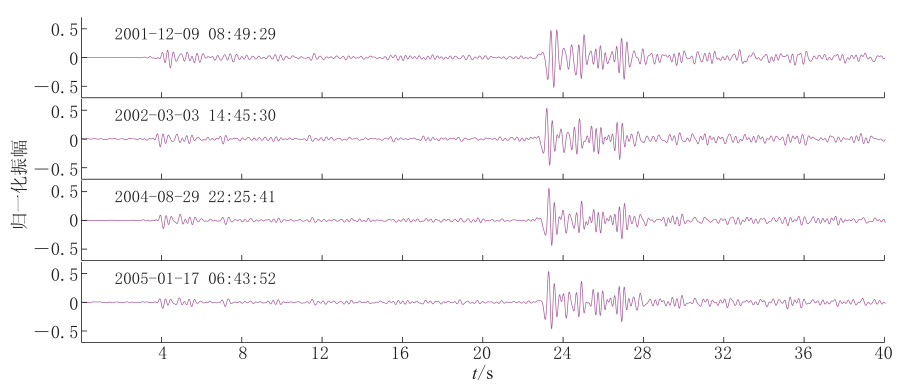

图 4 巴楚地震台记录的重复地震组示例
图中地震波形左上方给出了地震发震时刻
Figure 4. An example of repeating earthquakes recorded at BCH station
Origin time of each earthquake is marked on the upper left of each trace
![]()

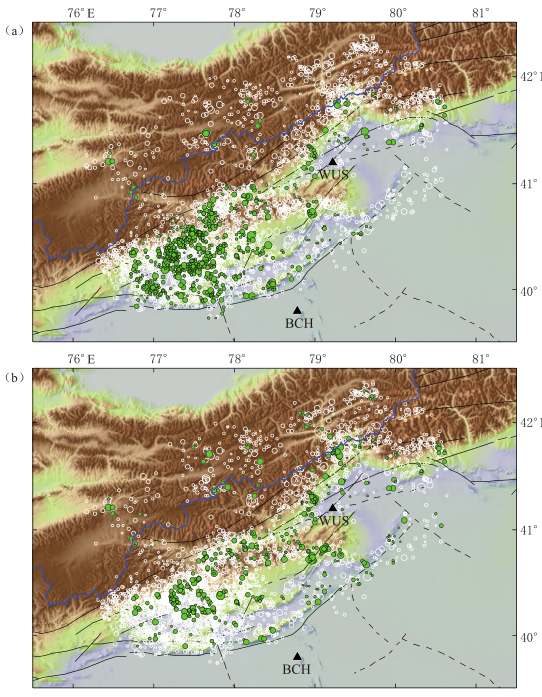

图 5 巴楚台(a)和乌什台(b)识别出的重复地震和全部地震的震中分布
绿色实心圆为重复地震，白色空心圆为全部地震，黑色三角形为选用的台站
Figure 5. Epicenters distribution of repeating earthquakes identified by BCH (a) and WUS (b) stations and all of this other earthquakes used in the study
Solid green circles mark the repeating earthquakes，white circles mark all of the other earthquakes，and black triangles stand for the stations used
![]()

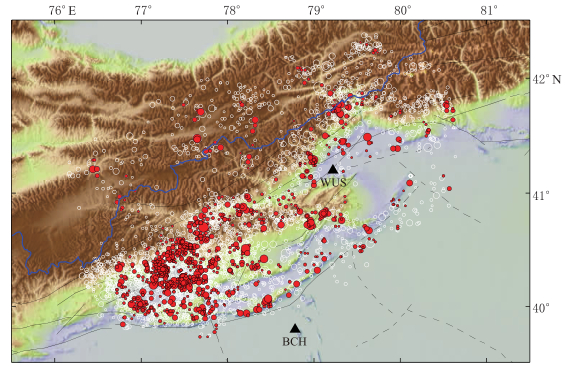

图 6 巴楚台和乌什台联合聚类得到的重复地震分布
白色空心圆为研究选用的地震，红色实心圆为识别出的重复地震，黑色三角形为选用的台站
Figure 6. Distribution of repeating earthquakes identified by correlation clustering of BCH and WUS stations
White circles mark the earthquakes used in the study，solid red circles denote repeating earthquakes，and black triangles stand for the stations used
![]()

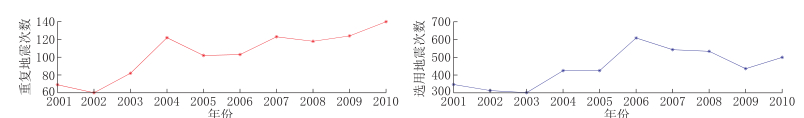

图 7 不同震级重复地震数量统计图
Figure 7. Statistics of the number of repeating earthquakes in different magnitudes
![]()
图 8 重复地震组内地震次数统计图
Figure 8. Statistics of the number of earthquakes in different doublets
-
