The magnitude distribution law of characteristic earthquakes in Chinese mainland
-
摘要: 根据特征地震的震级分布符合正态分布的基本假设，对特征地震的震级分布规律进行定量化研究.考虑到原地复发型大地震的震级数据稀少，提出利用大地震的同震位移转换得到震级数据，再对不同观测点所得到的震级数据进行归一化处理，使所有归一化震级数据均服从均值为0的同分布，进而可以统计得到反映特征地震震级变异性的标准差σ.最后基于广泛搜集的中国大陆54个特征地震的同震位移，利用本文给出的统计方法得到一个通用的标准差σ=0.08，为进一步研究特征地震的发生概率模型提供了重要依据.Abstract: Based on the fundamental assumption that the magnitude distribution of characteristic earthquakes obeys the normal distribution, the quantification research are carried out on the magnitude distribution of characteristic earthquakes. Given sparse magnitude data of large earthquakes recurrence in situ, this paper uses magnitude data converted by coseismic displacement data, and each magnitude obeys identical distribution after normalization, then the standard deviation σ which reflects the variability of the normalized magnitude can be got by statistic analysis. Using the approach proposed in this paper, analysis of coseismic displacements of 54 characteristic earthquakes in Chinese mainland suggests a generic value of σ=0.08, which provides an important basis for further studying occurrence probabilistic model of characteristic earthquakes.
-
Keywords:
- characteristic earthquake /
- magnitude /
- coseismic displacement /
- small sample
-
-
![]()

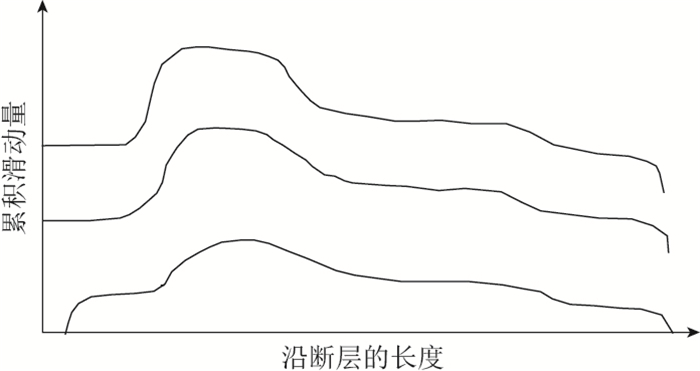

图 1 特征地震模型(引自Schwartz，Coppersmith，1984)
Figure 1. Characteristic earthquake model (after Schwartz, Coppersmith, 1984)
![]()

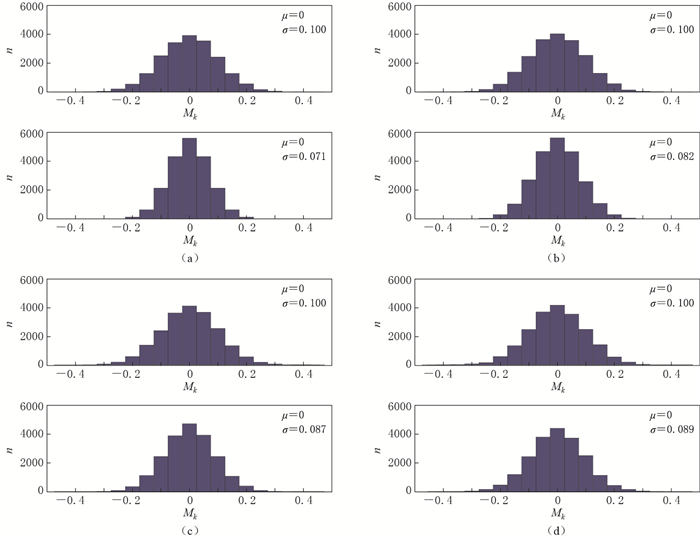

图 2 抽取2次(a)，3次(b)，4次(c)，5次(d)地震事件的Mk值初始分布(上)和基于小样本的分布(下)，图中n为地震事件个数
Figure 2. The initiatory distribution of Mk (upper panels) and the distribution of Mk based on small sample (lower panels) for 2-event (a), 3-event (b), 4-event (c) and 5-event (d) synthetic earthquakes
![]()

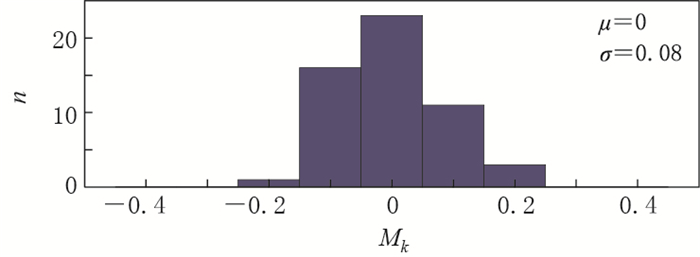

图 3 本文所统计的54个特征地震的Mk值分布直方图
Figure 3. Histogram of Mk values for 54 characteristic earthquakes
表 1 本文所用的中国大陆16个断层上的同震位移数据
Table 1 The data of coseismic displacement on 16 faults of Chinese mainland used in this paper
断层(段) 同震位移/m 归一化无量纲震级 修正系数ρ 数据来源 1.50 -0.0183 鲜水河断裂炉霍段 1.70 0.0179 1.22 钱洪等(1990) 1.60 0.0004 鲜水河断裂道孚段 0.78 0.0644 1.41 Papadimitriou et al (2004) 0.50 -0.0644 夏垫断裂(东柳河屯探槽) 1.75 0.0313 1.41 冉永康等(1997) 1.41 -0.0312 1.0 -0.1022 1.2 -0.0494 夏垫断裂(齐心庄探槽) 1.8 0.0680 1.15 江娃利等(2000) 1.9 0.0836 0.34 0.0697 0.30 0.0335 包代河断裂 0.20 -0.0839 1.15 董治平等(2002) 0.25 -0.0192 0.8 -0.1100 0.8 -0.1100 北京南口-孙河断裂 1.0 -0.0454 1.12 张世民等(2008) 1.8 0.1248 1.9 0.1405 2.6 0.0920 色尔腾山山前断裂大佘太段 1.6 -0.0485 1.15 陈立春等(2003) 2.2 0.0437 1.4 -0.0872 2.6 0.1328 1.8 0.0263 色尔滕山山前断裂乌兰忽洞段 1.3 -0.0679 1.15 陈立春等(2003) 1.2 -0.0911 1.5 -0.0392 2.0 0.0441 贺兰山东麓断裂中北段 2.0 0.0441 1.15 邓起东等(1984) 1.45 -0.0490 贺兰山东麓断裂南段 0.34 -0.1343 1.41 杜鹏等(2009) 0.86 0.1343 1.5 -0.0454 灵武断裂 1.8 0.0074 1.22 柴炽章等(2001) 2.0 0.0379 2.0 0.0287 山西大同盆地恒山北缘断裂 1.5 -0.0555 1.22 江娃利等(2003) 2.0 0.0278 3.2 0.0238 山西交城断裂带 2.5 -0.0477 1.22 谢新生等(2007) 3.2 0.0328 云南龙蟠-乔后断裂剑川段 1.0 0.0476 1.41 汤勇等(2014) 0.72 -0.0476 海原断裂全段 5.6 -0.0323 1.41 冉永康和邓起东(1998) 7.0 0.0323 1.5 -0.0278 海原断裂中段 1.5 -0.0278 1.22 冉永康和邓起东(1998) 2.0 0.0555 6.0 0.0132 郯城断裂中断 5.0 -0.0396 1.15 王华林(1995) 6.0 0.0132 6.0 0.0132
下载: 导出CSV
-
柴炽章, 廖玉华, 张文孝, 许文俊, 申旭辉, 田勤俭. 2001.灵武断裂晚第四纪古地震及其破裂特征[J].地震地质, 23 (1): 15-23. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200101002.htm Chai C Z, Liao Y H, Zhang W X, Xu W J, Shen X H, Tian Q J. 2001. Late Quaternary paleoearthquakes and their rupture features along the Lingwu fault[J]. Seismology and Geology, 23 (1): 15-23 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200101002.htm
陈立春. 2002.河套断陷带的古地震、强震复发规律和未来可能强震地点[D].北京:中国地震局地质研究所: 49-67. Chen L C. 2002. Paleoearthquakes, the Law of Strong Earthquake Recurrence and Potential Sites for the Occurrence of Future Strong Earthquakes in the Hetao Fault-Depression Zone[D]. Beijing: Institute of Geology, China Earthquake Administration: 49-67 (in Chinese).
陈立春, 冉勇康, 常增沛. 2003.色尔腾山山前断裂得令山以东段晚第四纪活动特征与古地震事件[J].地震地质, 25 (4): 555-565. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200304003.htm Chen L C, Ran Y K, Chang Z P. 2003. Characteristics of Late Quaternary faulting and paleoseismic events on the east of Delingshan segment of the Sertengshan piedmont fault[J]. Seismology and Geology, 25 (4): 555-565 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200304003.htm
邓起东, 汪一鹏, 廖玉华, 张维岐, 李孟銮. 1984.断层崖崩积楔及贺兰山山前断裂全新世活动历史[J].科学通报, 29 (9): 557-560. http://www.cnki.com.cn/Article/CJFDTOTAL-KXTB198409013.htm Deng Q D, Wang Y P, Liao Y H, Zhang W Q, Li M L. 1984. Colluvial wedges and Holocene activity along the rang-front fault of Helan Shan[J]. Chinese Science Bulletin, 29 (9): 557-560. http://www.cnki.com.cn/Article/CJFDTOTAL-KXTB198409013.htm
杜鹏, 柴炽章, 廖玉华, 宋方敏, 孟广魁, 雷启云, 王银. 2009.贺兰山东麓断裂南段套门沟-榆树沟段全新世活动与古地震[J].地震地质, 31 (2): 256-264. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200902005.htm Du P, Chai C Z, Liao Y H, Song F M, Meng G K, Lei Q Y, Wang Y. 2009. Study on Holocene activity of the south segment of the eastern piedmont fault of Helan mountains between Taomengou and Yushugou[J]. Seismology and Geology, 31 (2): 256-264 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200902005.htm
董治平, 何文贵, 戴华光. 2002.包代河断裂古地震初步研究[J].西北地震学报, 24 (3): 225-229. http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ200203005.htm Dong Z P, He W G, Dai H G. 2002. Preliminary research on paleoearthquakes of the Baodaihe fault[J]. Northwestern Seismological Journal, 24 (3): 225-229 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ200203005.htm
郭星. 2014.强震复发的随机特征滑动模型及其应用方法研究[D].北京:中国地震局地球物理研究所: 44-70. http://www.cnki.com.cn/Article/CJFDTotal-GJZT201502015.htm Guo X. 2014. Stochastic Characteristic-Slip Model and Its Application Method[D]. Beijing: Institute of Geophysics, China Earthquake Administration: 44-70 (in Chinese). http://www.cnki.com.cn/Article/CJFDTotal-GJZT201502015.htm
郭星, 潘华. 2015.强震复发间隔变异系数的一种计算方法[J].地震学报, 37 (3): 411-419. http://www.dzxb.org/Magazine/Show?id=29086 Guo X, Pan H. 2015. A method for computing the aperiodicity parameter of the strong earthquake recurrence interval [J]. Acta Seismologica Sinica, 37 (3): 411-419 (in Chinese). http://www.dzxb.org/Magazine/Show?id=29086
江娃利, 侯治华, 肖振敏, 谢新生. 2000.北京平原夏垫断裂齐心庄探槽古地震事件分析[J].地震地质, 22 (4): 413-422. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200004009.htm Jiang W L, Hou Z H, Xiao Z M, Xie X S. 2000. Study on paleoearthquakes of Qixinzhuang trench at the Xiadian fault, Beijing plain [J]. Seismology and Geology, 22 (4): 413-422 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200004009.htm
江娃利, 谢新生, 王焕贞, 冯西英, 张康富. 2003.山西大同盆地恒山北缘断裂全新世古地震活动[J].中国地震, 19 (1): 8-19. http://www.cnki.com.cn/Article/CJFDTOTAL-ZGZD200301001.htm Jiang W L, Xie X S, Wang H Z, Feng X Y, Zhang K F. 2003. Holocene paleoseismic activities along the northern piedmont fault of Hengshan mountain, Datong Basin, Shanxi Province[J]. Earthquake Research in China, 19 (1): 8-19(in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-ZGZD200301001.htm
钱洪, 罗灼礼, 闻学泽. 1990.鲜水河断裂带上特征地震的初步研究[J].地震学报, 12 (1): 22-29. http://www.dzxb.org/Magazine/Show?id=28313 Qian H, Luo Z L, Wen X Z. 1990. Preliminary study of characteristic earthquakes in the Xianshuihe fault zone[J]. Acta Seismologica Sinica, 12 (1): 22-29 (in Chinese). http://www.dzxb.org/Magazine/Show?id=28313
冉勇康, 邓起东, 杨晓平, 张晚霞, 李如成, 向宏发. 1997. 1679年三河-平谷8级地震发震断层的古地震及其重复间隔[J].地震地质, 19 (3): 193-201. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ703.000.htm Ran Y K, Deng Q D, Yang X P, Zhang W X, Li R C, Xiang H F. 1997. Paleoearthquakes and recurrence interval on the seismogenic fault of 1679 Sanhe-Pinggu M8 earthquake, Hebei and Beijing[J]. Seismology and Geology, 19 (3): 193-201 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ703.000.htm
冉勇康, 邓起东. 1998.海原断裂的古地震及特征地震破裂的分级性讨论[J].第四纪研究, (3): 271-277. http://www.cnki.com.cn/Article/CJFDTOTAL-DSJJ199803010.htm Ran Y K, Deng Q D. 1998. Paleoearthquakes along Haiyuan fault and discussion of grading on rupture of large earthquakes[J]. Quaternary Sciences, (3): 271-277 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DSJJ199803010.htm
汤勇, 胡朝忠, 田勤俭, 王林, 杨攀新, 熊仁伟. 2014.云南龙蟠-乔后断裂剑川段古地震初步研究[J].地震, 34 (3): 117-124. http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN201403011.htm Tang Y, Hu C Z, Tian Q J, Wang L, Yang P X, Xiong R W. 2014. A preliminary study of paleo-earthquake in the Jianchuan section of Longpan-Qiaohou fault zone, Yunnan Province[J]. Earthquake, 34 (3): 117-124 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DIZN201403011.htm
万永魁, 沈军, 于晓辉, 戴训也, 王雷, 邵博, 李祥. 2014.北京平原区夏垫活动断裂滑动速率及古地震复发间隔[J].防灾科技学院学报, 16 (3): 38-45. http://www.cnki.com.cn/Article/CJFDTOTAL-FZJS201403007.htm Wan Y K, Shen J, Yu X H, Dai X Y, Wang L, Shao B, Li X. 2014. The slipping rates and ancient earthquake recurrence interval at Xiadian fault, Beijing plain[J]. Journal of Institute of Disaster Prevention, 16 (3): 38-45 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-FZJS201403007.htm
谢新生, 赵晋泉, 江娃利, 安卫平, 李自红, 张大卫, 程新源, 高树义, 王春和, 孙昌斌, 闫成国. 2007.山西交城断裂带西张探槽全新世古地震研究[J].地震地质, 29 (4): 744-755. http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200704004.htm Xie X S, Zhao J Q, Jiang W L, An W P, Li Z H, Zhang D W, Cheng X Y, Gao S Y, Wang C H, Sun C B, Yan C G. 2007. Study on Holocene paleoearthquake in Xizhang trench on the Jiaocheng fault zone, Shanxi Province[J]. Seismology and Geology, 29 (4): 744-755 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZDZ200704004.htm
王华林. 1995. 1668年郯城8.5级地震断裂的全新世滑动速率、古地震和强震复发周期[J].西北地震学报, 17 (4): 1-12. http://www.cnki.com.cn/Article/CJFDTOTAL-DZYJ602.012.htm Wang H L. 1995. Holocene slip rate, paleoearthquakes, and recurrence interval of strong earthquakes along the fault where 1668 Tancheng M=8 1/2 earthquake occurred, Shandong Province[J]. Northwestern Seismological Journal, 17 (4): 1-12 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-DZYJ602.012.htm
闻学泽. 1995.活动断裂地震潜势的定量评估[M].北京:地震出版社: 1-150. Wen X Z. 1995. Quantitative Estimates of Seismic Potential on Active Faults[M]. Beijing: Seismological Press: 1-150 (in Chinese).
杨明, 刘百篪. 2000.时间相依的地震危险性概率分析[J].西北地震学报, 22 (1): 10-15. http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ200001002.htm Yang M, Liu B C. 2000. Probabilistic seismic hazard analysis depending on time[J]. Northwestern Seismological Journal, 22 (1): 10-15 (in Chinese). http://www.cnki.com.cn/Article/CJFDTOTAL-ZBDZ200001002.htm
张世民, 王丹丹, 刘旭东, 张国宏, 赵俊香, 罗明辉, 任俊杰, 王瑞, 张英礼. 2008.北京南口-孙河断裂晚第四纪古地震事件的钻孔剖面对比与分析[J].中国科学: D辑, 38 (7): 881-895. doi: 10.1007/s11430-008-0081-9 Zhang S M, Wang D D, Liu X D, Zhang G H, Zhao J X, Luo M H, Ren J J, Wang R, Zhang Y L. 2008. Using borehole core analysis to reveal Late Quaternary paleoearthquakes along the Nankou-Sunhe fault, Beijing[J]. Science in China: Series D, 51 (8): 1154-1168. doi: 10.1007/s11430-008-0081-9
Aki K. 1984. Asperities, barriers, characteristic earthquakes and strong motion prediction[J]. J Geophys Res, 89 (B7): 5867-5892. doi: 10.1029/JB089iB07p05867
Kanamori H. 1977. The energy release in great earthquakes[J]. J Geophys Res, 82 (20): 2981-2987. doi: 10.1029/JB082i020p02981
Papadimitriou E, Wen X Z, Karakostas V, Jin X S. 2004. Earthquake triggering along the Xianshuihe fault zone of western Sichuan, China[J]. Pure Appl Geophys, 161 (8): 1683-1707. doi: 10.1007/s00024-003-2471-4
Reid H F. 1910. The Mechanics of the Earthquake, the California Earthquake of April 18, 1906[R]. Washington: State Earthquake Investigation Commission, Carnegie Institution of Washington: 43-47.
Schwartz D P, Coppersmith K J. 1984. Fault behavior and characteristic earthquakes: Examples from the Wasatch and San Andreas fault zones[J]. J Geophys Res, 89 (B7): 5681-5698. doi: 10.1029/JB089iB07p05681
Youngs R R, Coppersmith K J. 1985. Implications of fault slip rates and earthquake recurrence models to probabilistic seismic hazard estimates[J]. Bull Seismol Soc Am, 75 (4): 939-964.
