Focal mechanism and seismogenic structure of the Yongning MS4.6 earthquake on 20 November 2012
-
摘要: 2012年11月20日在宁夏银川市永宁县与兴庆区交界处发生MS4.6地震，为了更好地了解此次地震的发震构造，首先采用Hypo2000绝对定位方法得到该地震的震中位置及余震分布；然后采用CAP方法反演了此次地震的震源机制解和震源深度. 反演结果表明，永宁MS4.6地震是一个带有少量逆冲分量的右旋走滑地震.该地震矩震级为MW4.3，最佳双力偶解为：节面Ⅰ走向11°，倾角74°，滑动角171°；节面Ⅱ走向103°，倾角81°，滑动角16°.最佳震源深度为8km左右.从该地震震中和震源机制解以及震源深度剖面分布来看，这次地震很可能发生在银川隐伏主断层西侧的次级断层上.Abstract: The Yongning MS4.6 earthquake on November 20, 2012 is relocated by using the absolute positioning method (Hypo2000), and distribution of aftershocks is also given. In order to investigate the seismogenic structure of the earthquake, focal mechanism and depth of the earthquake are inverted by using CAP method. The inversion result shows that the Yongning earthquake is of dextral strike-slip faulting with a small amount of thrust component, and the moment magnitude is MW4.3. The best double couple solution is 11°/74°/171° for the nodal plane Ⅰ,and 103°/81°/16° for the nodal plane Ⅱ. The estimated focal depth is about 8 km. The earthquake epicenter, focal mechanism solution and cross sections along the focal depth suggest that the earthquake is likely to occur on the secondary fault in the western Yinchuan buried fault zone.
-
Keywords:
- relocation /
- CAP method /
- focal mechanism solution /
- seismogenic structure
-
-
![]()
图 1 2012年11月20日永宁MS4.6地震震中及研究区活动断裂分布右下角小图给出了研究区域的位置及本文所用的台站分布
Figure 1. The epicenter of Yongning MS4.6 earthquake on 20 November 2012 and distribution of active faults in the studied area.The inset in the lower right corner gives the location of the studied area and the distribution of stations used in this study
![]()

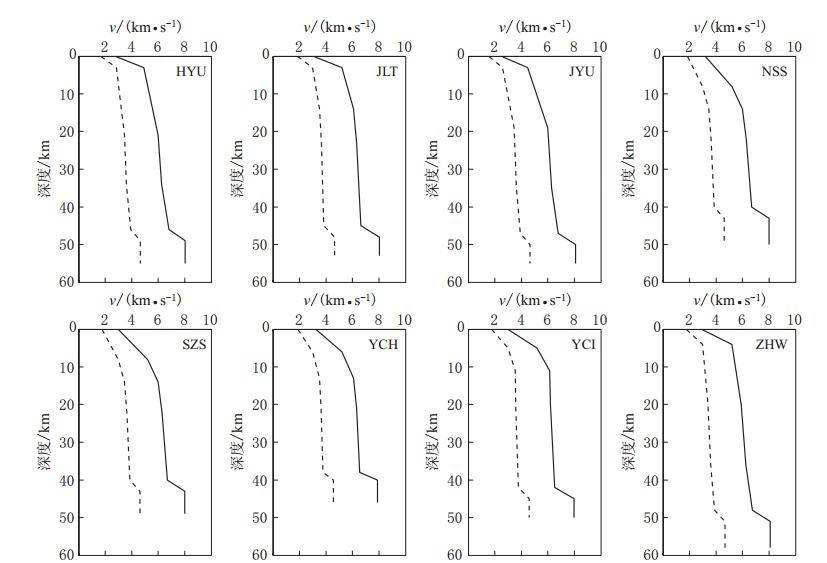

图 2 宁夏部分台站下方地壳速度结构. 虚线和实线分别表示S波、P波速度
Figure 2. Crustal velocity structures beneath eight seismic stations of Ningxia. The dash lines and the solid lines represent S wave velocity and P wave velocity，respectively
![]()

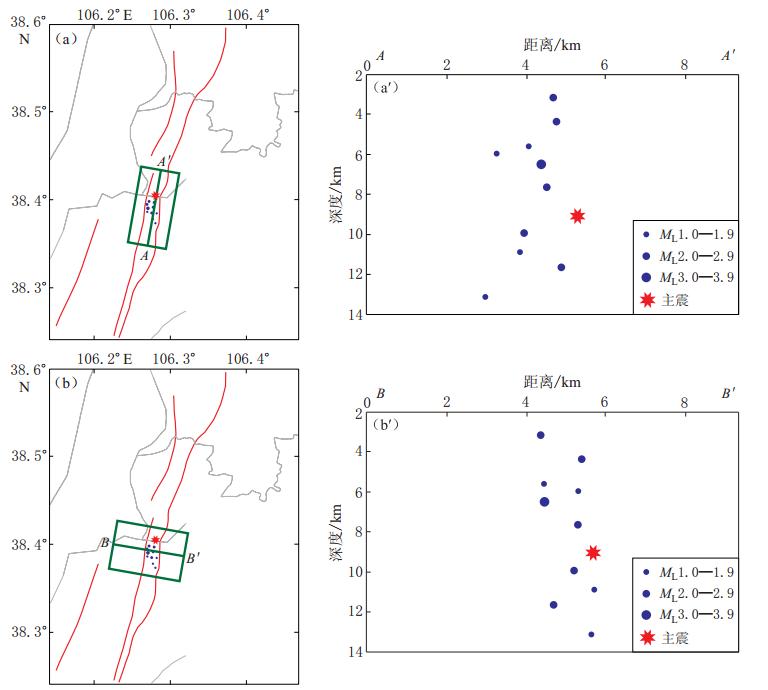

图 3 (a)沿断层走向的AA′剖面位置；(a′)沿断层走向的震源深度剖面分布；(b)垂直于断层走向的BB′剖面位置；(b′)垂直于断层走向的震源深度剖面分布
Figure 3. (a)Location of the profile AA′ along the strike of Yinchuan buried fault;(a′)Distribution of focal depths along the strike of Yinchuan buried fault;(b)Location of the profile BB′ perpendicular to the strike of Yinchuan buried fault;(b′)Distribution of focal depths perpendicular to the strike of Yinchuan buried fault
![]()

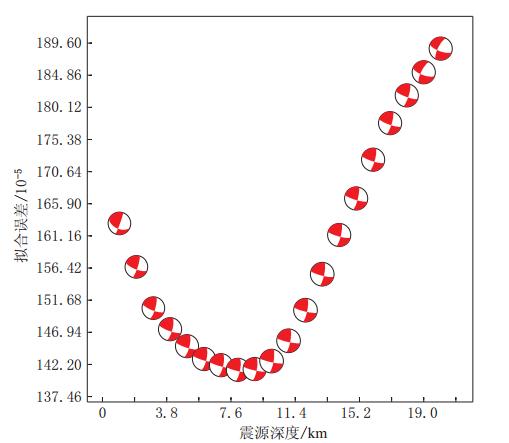

图 4 震源机制解反演误差随深度变化图
Figure 4. Misfit error as a function of depth in the focal mechanism inversion of the Yongning MS4.6 earthquake
![]()

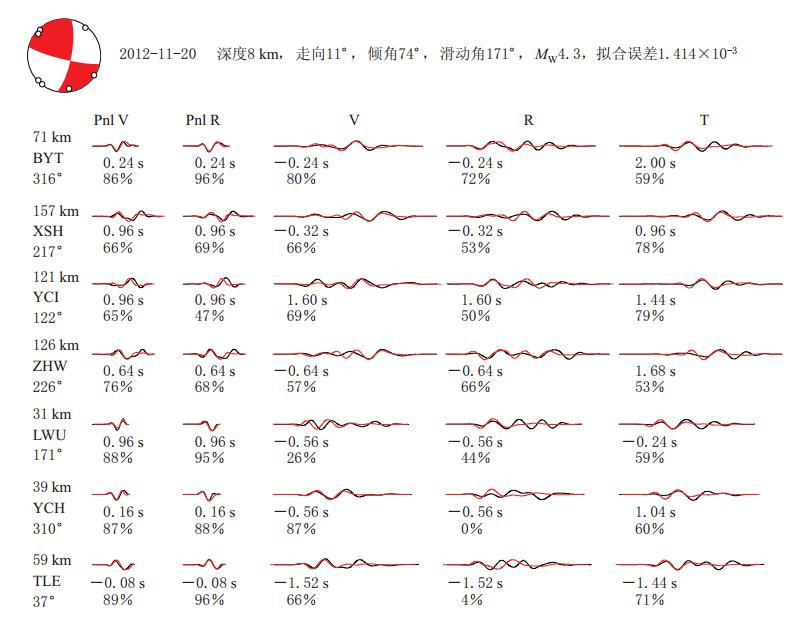

图 5 永宁MS4.6地震震源机制解及部分台站波形拟合图图中第一行显示震源机制沙滩球的形状以及发震日期、波形最佳拟合深度、节面Ⅰ的机制解、矩震级和拟合误差；沙滩球采用下半球投影方式绘制，图上的小圆圈为台站位置；黑色和红色曲线分别表示理论地震图与观测地震图；波形下面的第一行和第二行数字分别表示理论地震图相对于观测地震图的移动时间及二者的相关系数；波形左侧自上至下分别表示震中距、台站名称和方位角；右侧3列曲线上面的V，R，T分别表示S波垂向、径向和切向
Figure 5. The focal mechanism solution of Yongning MS4.6 earthquake and waveform fittings between synthetic(red) and observed(black)seismograms The first row in the figure shows beach-ball of focal mechanism, occurrence date, the best focal depth, focal mechanism solution of nodal plane I, moment magnitude and fitting error. The beach ball is drawn by lower hemisphere projection method, in which the small open circles st and for station locations. The numbers in the first and second rows below the waveform are the time shifts of theoretical seismograms relative to observation seismograms, and correlation coefficients of the two types of seismograms. The texts on the left side of the waveform are epicenter distance, station code and azimuth angle
![]()

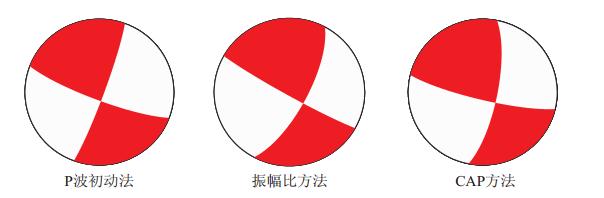

图 6 永宁MS4.6地震震源机制解不同方法的结果对比
Figure 6. Comparison of focal mechanisms of Yongning MS4.6 earthquake using P wave initial motion，amplitude ratio and CAP method
-
柴炽章, 孟广魁, 马贵仁. 2011. 银川市活动断层探测与地震危险性评价[M]. 北京: 科学出版社: 121-200. Chai C Z, Meng G K, Ma G R. 2011. Active Fault Surveying and Earthquake Risk Assessment in Yinchuan[M]. Beijing: Science Press: 121-200 (in Chinese).
陈天长, 堀内茂木, 郑斯华. 2001. 利用P波初动和短周期P、 S波振幅测定川滇地区地震震源机制解和应力场[J]. 地震学报, 23(4): 436-440. Chen T C, Shigeki H, Zheng S H. 2001. Earthquake focal mechanisms and stress field in Sichuan-Yunnan area determined using P wave polarity and short period P and S waveform data[J]. Acta Seismologica Sinica,23(4): 436-440 (in Chinese).
韩立波, 蒋长胜, 包丰. 2012. 2010年河南太康MS4.6地震序列震源参数的精确确定[J]. 地球物理学报, 55(9): 2973-2981. Han L B, Jiang C S, Bao F. 2012. Source parameter determination of 2010 Taikang MS4.6 earthquake sequences[J]. Chinese Journal of Geophysics,55(9): 2973-2981 (in Chinese).
龙峰, 张永久, 闻学泽, 倪四道, 张致伟. 2010. 2008年8月30日攀枝花-会理6.1级地震序列ML≥4.0事件的震源机制解[J]. 地球物理学报, 53(12): 2852-2860. Long F, Zhang Y J, Wen X Z, Ni S D, Zhang Z W. 2010. Focal mechanism solutions of ML≥4.0 events in the MS6.1 Panzhihua-Huili earthquake sequence of Aug 30, 2008[J]. Chinese Journal of Geophysics,53(12): 2852-2860 (in Chinese).
宋美琴, 郑勇, 葛粲, 李斌. 2012. 山西地震带中小震精确位置及其显示的山西地震构造特征[J]. 地球物理学报, 55(2): 513-525. Song M Q, Zheng Y, Ge C, Li B. 2012. Relocation of small to moderate earthquakes in Shanxi Province and its relation to the seismogenic structure[J]. Chinese Journal of Geophysics,55(2): 513-525 (in Chinese).
韦生吉. 2009. 稀疏台网震源参数方法研究[D]. 合肥: 中国科学技术大学地球与空间科学学院: 26-28. Wei S J. 2009. Constraining Source Parameters with Sparse Network[D]. Hefei: School of Earth and Space Sciences, University of Science and Technology of China: 26-28 (in Chinese).
谢祖军, 郑勇, 倪四道, 熊熊, 王行舟, 张炳. 2012. 2011年1月19日安庆ML4.8地震的震源机制解和深度研究[J]. 地球物理学报, 55(5): 1624-1634. Xie Z J, Zheng Y, Ni S D, Xiong X, Wang X Z, Zhang B. 2012. Focal mechanism and focal depth of the 19 January 2011 Anqing earthquake[J]. Chinese Journal of Geophysics,55(5): 1624-1634 (in Chinese).
杨明芝, 马禾青, 廖玉华. 2007. 宁夏地震活动与研究[M]. 北京: 地震出版社: 121-200. Yang M Z, Ma H Q, Liao Y H. 2007. Earthquake Research and Activity of Ningxia[M]. Beijing: Seismological Press: 121-200 (in Chinese).
郑勇, 马宏生, 吕坚, 倪四道, 李迎春, 韦生吉. 2009. 汶川地震强余震(MS≥5.6)的震源机制解及其与发震构造的关系[J]. 中国科学: D辑, 39(4): 413-426. Zheng Y, Ma H S, Lü J, Ni S D, Li Y C, Wei S J. 2009. Source mechanism of strong aftershocks (MS≥5.6) of the 2008/05/12 Wenchuan earthquake and the implication for seismotectonics[J]. Science in China: Series D,52(6): 739-753.
Geiger L. 1912. Probability method for the determination of earthquake epicenters from arrival time only[J]. Bull St Louis Univ, 8(1): 60-71.
Klein F W. 2007. User's Guide to HYPOINVERSE-2000: A Fortran Program to Solve for Earthquake Locations and Magnitudes[R]. U S Geological Survey Open-File Report: 36-40.
Mckenzie D P. 1969. The relationship between fault plane solution for earthquakes and directions of the principal stresses[J]. Bull Seismol Soc Am,59(2): 591-601.
Nakamura A, Horiuchi S, Hasegawa A. 1999. Joint focal mechanism determination with source-region station corrections using short-period body-wave amplitude data[J]. Bull Seismol Soc Am,89(2): 373-383.
Oppenheimer D H, Reasenberg P A, Simpson R W. 1988. Fault plane solutions for the 1984 Morgan Hill, California, earthquake sequence: Evidence for the state of stress on the Calaveras fault[J]. J Geophys Res,93(B8): 9006-9007.
Skyes L R. 1967. Mechanism of earthquakes and nature of faulting on the mid-oceanic ridges[J]. J Geophys Res,72(8): 2131-2153.
Yamakawa N. 1971. Stress fields in focal regions[J]. J Phys Earth,19(4): 347-353.
Zhao L S, Helmberger D V. 1994. Source estimation from broadband regional seismograms[J]. Bull Seismol Soc Am,84(1): 91-104.
Zhu L P, Helmberger D V. 1996. Advancement in source estimation techniques using broadband regional seismograms[J]. Bull Seismol Soc Am,86(5): 1634-1641.
